Interlock Paving in Abqaiq – Mosque Courtyards & Yards Laid in the Cool Hours

In Abqaiq the working day begins before the sun gets strong, because heat changes everything about interlock: the base dries out before it is compacted, the sand bed shifts in the wind, and a crew working at midday tires fast. So we plan interlock paving in Abqaiq around the early morning hours with shade netting over the laying area, and we wet the base course before compacting it until it is firm. Aemar Al-Maryam General Contracting paves house yards and house fronts, mosque courtyards, majlis and community spaces, and also installs kerbs and re-lays sunken interlock. Prices start from SAR 37 per m² for grey 6 cm and SAR 46 for light colours, and the crew’s trip from Dammam is costed at inspection. Call 0547879578.

Sitting inland in open desert, Abqaiq raises questions that differ from those of coastal cities: heat, wind-blown sand and dry ground. We answer them here in the order we work, then show prices with a worked example for a mosque courtyard. Our crews drive over from Dammam on pre-agreed dates: the first visit for inspection and measuring, the following ones for building over consecutive days so the courtyard is not left open for long.

Interlock company in Abqaiq: what we build

An interlock company in Abqaiq means one party that runs the job from the ground to the handover. Here is what people in Abqaiq usually call us for:

We work only inside the property; the street footway outside is municipal land, and altering it is a matter for a Balady application.

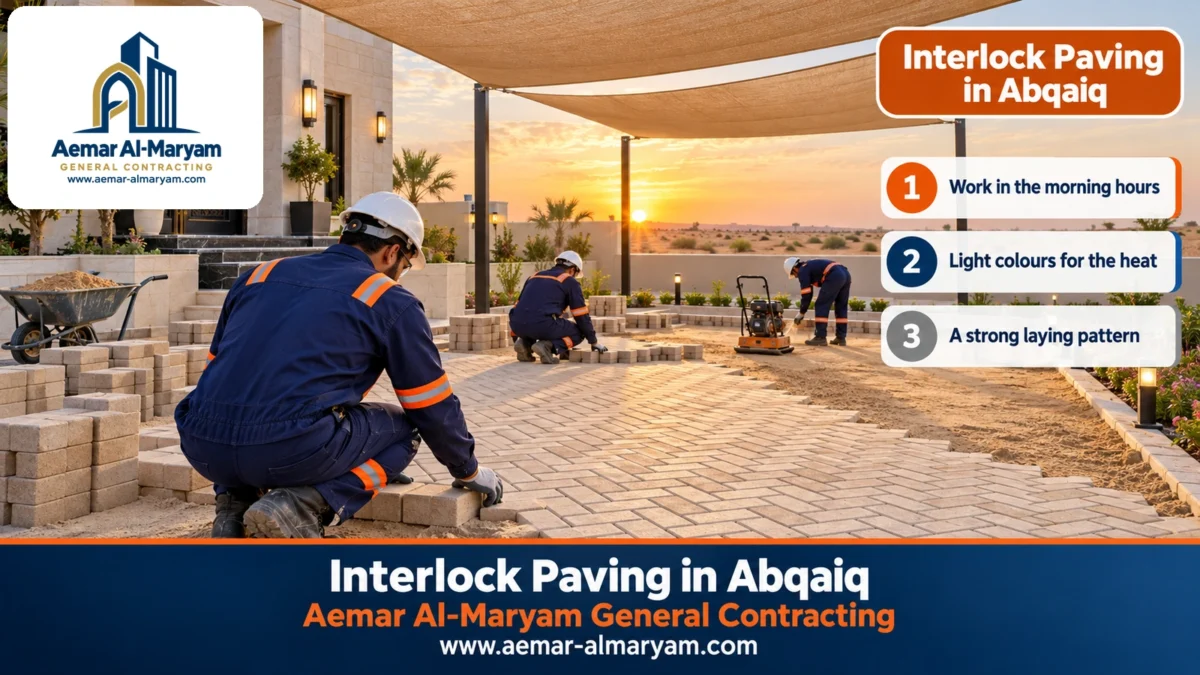

Interlock paving in Abqaiq in the heat: when and how we work

Interlock paving in Abqaiq in summer is possible, provided the day is run by the sun. We arrive at first light, move the heavy tasks such as digging, carrying stone and compacting into the early hours, and leave for later whatever can wait. Every summer the Ministry of Human Resources applies a decision banning work under direct sun from 12 noon to 3 pm during the hottest months; in recent years it has covered roughly the middle of June to the middle of September, and every open-air job of ours follows it.

• ✓Shade netting: Stretched over the laying area on open sites, so the crew works in shade and the pavers and sand stay cooler.
• ✓Materials in shade: Pallets and sand bags go in a shaded place or under cover, because hot units are hard on the hands and very dry sand blows away.
• ✓Water for the crew and the work: A small water bowser on site for wetting, and cold water for the technicians.
• ✓Daily sections: Large courtyards are split into parts that we finish each day: compacted base, then sand and pavers, then joints and compaction.

Why don’t we leave the sand bed exposed?

The sand bed is screeded with a straightedge to form an even bed for the pavers, and the known specifications forbid walking on it after screeding, because every footprint becomes a dip under the paving. In Abqaiq there is a second risk: the wind carries sand and disturbs the screeding, and the sun dries it so it loses cohesion. So we spread the bed just ahead of the laying, over an area we can cover with pavers within the same hours, and never leave it exposed overnight.

Does the heat affect the pavers themselves?

Concrete pavers do not soften in heat the way asphalt does, and they need no wet curing after laying because they are made and cured in the factory. What the heat affects is what we make on site: the concrete of the kerb beds, which must be kept damp after casting so it does not dry before it has set; the base course, which loses moisture fast; and the crew, who tire at midday. Some cheaper units can fade in long sun, so we buy from a supplier who provides a test certificate, and prefer light colours on which fading shows less.

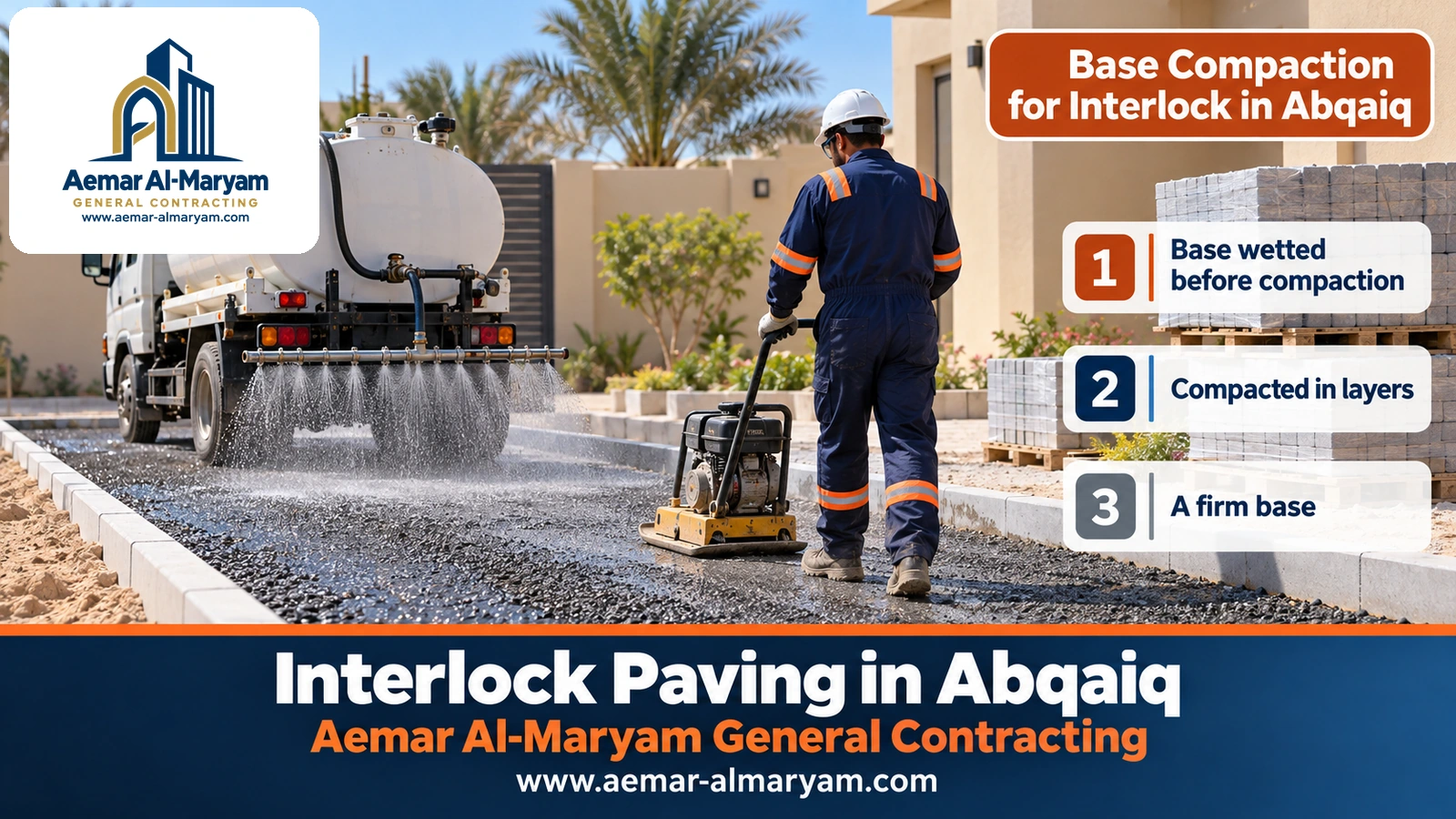

Wetting and compacting the base course in Abqaiq

Wetting the base course before compacting it is a step nobody sees once the job is done, but it decides whether the interlock stays level. Bone-dry crushed stone resists the compactor and does not settle, while stone at the right moisture lets the fine particles slip between the coarse ones and the layer packs tight. In Abqaiq’s dry air the moisture evaporates fast, so we spray the layer in an even mist and run the plate compactor right behind the spray, before the surface dries.

1. 1
   Compact the bottom
   We remove loose sand and weak soil, wet the formation and compact it.
2. 2
   First lift
   We spread crushed stone no more than 15 cm thick and wet it in an even mist.
3. 3
   Compaction
   We run the plate compactor back and forth until a footprint leaves no mark.
4. 4
   Second lift
   Where cars will park we spread a second lift and repeat wetting and compaction.
5. 5
   Checking
   We confirm level and fall with string lines and a level before the sand bed.

How thick is the base course in Abqaiq?

About 10–15 cm after compaction for paths and courtyards used on foot, and 15–20 cm where cars park or enter daily. For parking taking heavier vehicles we set the thickness after inspection. Ground in Abqaiq is often dry sand, and loose surface sand is no base at all, so we remove it until we reach firm ground.

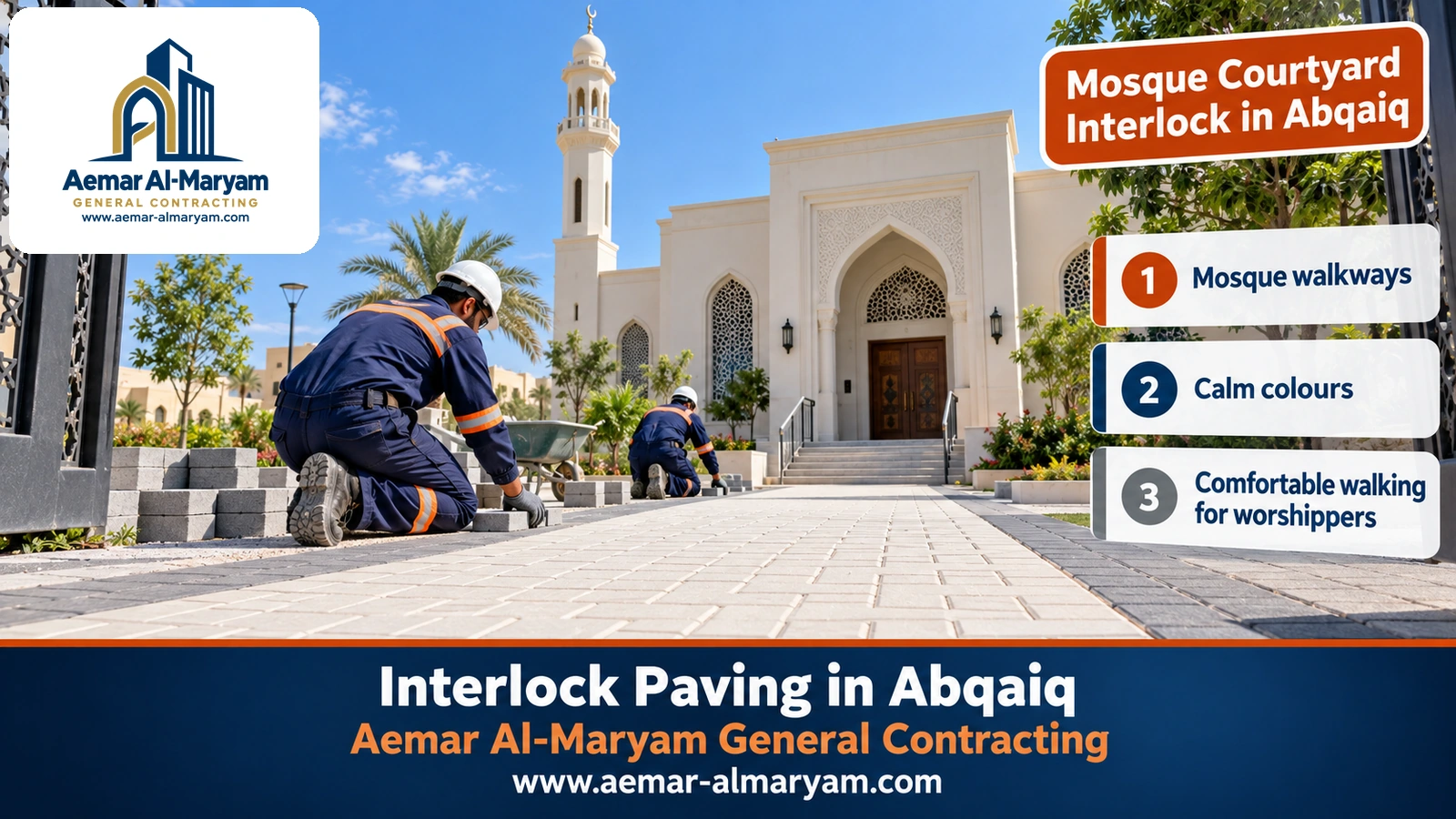

Mosque courtyard interlock in Abqaiq

Mosque courtyard interlock in Abqaiq is work we take particular care over: a courtyard crossed five times a day by worshippers, including elderly people and children, usually with parking in front. We design it around a main walkway in a light colour such as creamy white running from the gate to the mosque entrance and marking the route clearly, with grey interlock on either side, and every edge held by kerbs.

• ✓Light colours: They reflect more of the sun, so the surface stays less hot than dark paving, and they look clean and restful.
• ✓Falls: A gentle cross-fall of about 2% carries away ablution and washing water without tiring elderly worshippers or wheelchair users.
• ✓Thresholds: No sudden level change between the walkway, the gate and the entrance; we meet the mosque threshold at a planned level.
• ✓Parking: The area where worshippers park is laid in 8 cm herringbone on a thicker base.
• ✓Stages: We split the courtyard and keep a safe route to the entrance throughout, agreeing times with whoever runs the mosque, away from prayer times.

Before starting we ask for the approval of whoever manages the mosque for the design and timing, and we provide pictures of the layout and colours before buying.

Accessible bay and an entrance for elderly worshippers

Where the courtyard allows, we suggest a parking bay near the entrance for people with disabilities, whose surface slopes no more than about 2% any way you measure it, connected to the walkway without a step. We lay the walkway in units with a non-polished surface, avoid wide joints that catch wheelchair wheels, and mark the path edge in a contrasting colour that people with weak sight can see.

Majlis and community courtyards

Public majlis buildings, rest houses and neighbourhood activity yards resemble mosque courtyards: many visitors at set times, parking, and outdoor seating. We plan them the same way: clear walkways in a different colour, 8 cm where cars park, kerbs on every edge, and falls that keep water away from doors. If the majlis is new, we coordinate the courtyard with our annex and majlis builders in Abqaiq so thresholds and levels meet without patching.

Yard and house front interlock in Abqaiq

Front yards in Abqaiq are often wide, open to the sun, and used by a car every day. We lay the car track in 8 cm herringbone and the seating and paths in 6 cm, choosing sand or pale grey colours that suit the setting and do not heat up like dark ones. We also make sure the surrounding kerbs sit a little above the neighbouring soil, so sand does not drift into the yard with every wind.

An interlock company in Abqaiq or a labour-only installer?

If the ground is ready and the pavers and sand are on site, we lay for labour only from SAR 14 per m². But most of what we see in Abqaiq is bare yards that need a base from scratch, and there you need one party that handles digging, wetting, compaction, kerbs and laying together, because an installer who starts from a ready surface cannot fix a base that was never compacted properly.

Which thickness and pattern suit Abqaiq?

The known paver application guides recommend herringbone where vehicles pass continually, and units no longer than three times their thickness in vehicle areas, because long thin units tilt and break under wheels.

Interlock types and shapes available in Abqaiq

For colours, sand, pale grey and creamy white are the usual choice in Abqaiq, because they suit the desert setting and absorb less heat. We use dark colours only for borders and lines, not for whole areas exposed to the sun.

Interlock supply and installation in Abqaiq

With supply and installation we buy the pavers, sand and crushed stone and bring them to Abqaiq with the crew, so the rate per square metre covers materials and labour. We ask for the whole quantity from one production batch so the shade does not vary across the courtyard, which matters in mosque courtyards where a light walkway runs for tens of metres and any difference shows. We also ask the supplier for the batch test result for compressive strength and water absorption; the known values in the American paver standard are an average strength of 55 MPa or more and absorption of 5% or less.

• ✓Units per m²: A 20 × 10 cm rectangle takes 50 units per square metre; other shapes follow the supplier’s sheet.
• ✓Waste: We add about 5% for cuts at edges, columns and inspection chambers.
• ✓Delivery: We arrange pallets to arrive in the morning and stack them in shade near the work area.

Interlock layers and joint sand in Abqaiq

On top of the wetted, compacted base goes roughly 3 cm of clean, mixed-grain bedding sand, which we strike off with a straightedge on fixed rails, then lay the pavers. We never use sand to make up low spots in the base, because a thick bed moves under load; the known specifications keep it to about 2.5–4 cm. After laying we sweep sand finer than the bedding sand into the joints, run the plate compactor with a rubber pad at least three times, then add more sand and repeat until the joints are full.

Kerb installation in Abqaiq

Kerb installation in Abqaiq comes before the laying: we cast a concrete bed of at least 15 cm for each kerb with haunching behind it, keep that concrete wet for its first days so the desert heat does not dry it out early, and let it set before screeding the sand and compacting pavers against it. A kerb holds the interlock in from the sides, and in Abqaiq it does an extra job: it stops loose sand creeping into the courtyard.

Kerbs are priced per linear metre by type and bed, at inspection.

Falls and drainage in Abqaiq

Rain in Abqaiq is rare, but when it comes it can be heavy over a short time, and there is also washing, ablution and air-conditioner water. We design a fall of about 2% away from buildings toward the street or a drain, set it in the base course, and finish the interlock 3–6 mm above drain rims. In mosque courtyards we collect ablution and washing water at defined drain points away from the worshippers’ walkway. For a new drain run we work with a plumber in Abqaiq.

Interlock prices in Abqaiq

Interlock prices in Abqaiq are worked out per square metre exactly as in Dammam, with the crew’s travel added on top. Over a courtyard that is already level and compacted, grey 6 cm with materials begins at SAR 37 and creamy white or coloured units at 46. A car lane in 8 cm over a base laid earlier begins at 55. A sandy courtyard that we excavate, wet, compact and pave for people on foot begins at 64. If you already hold the pavers and sand, laying alone begins at 14. Travel from Dammam is assessed on the visit, and weighs less on each metre in big courtyards or when several jobs share one trip.

Every figure here is a guide, fixed only after we inspect and agree. In small courtyards under roughly 50 m² the square-metre rate goes up, because plant and travel are a fixed outlay. To get a number for lines “assessed on the visit”, WhatsApp 0547879578 with pictures of the courtyard, its dimensions and whether cars will use it, and we reply with a first estimate. For every other service, see the price list.

Example in figures: a neighbourhood mosque courtyard in Abqaiq

A mosque courtyard on level, compacted ground has a walkway from the gate to the entrance 2.4 m wide and 30 m long, with a grey strip 1.5 m wide on each side along the same length. Illustrative only:

• ✓Creamy white walkway: 2.4 × 30 = 72 m² × 46 = SAR 3,312.
• ✓Two grey strips: 2 × 1.5 × 30 = 90 m² × 37 = SAR 3,330.
• ✓Estimated total: 3,312 + 3,330 = SAR 6,642 “from” for 162 m².
• ✓Bedding sand: 162 × 0.03 ≈ 4.9 m³, and with about 10% waste roughly 5.3 m³.
• ✓Not included: Kerbs around the courtyard, 8 cm worshippers’ parking and the crew’s trip, set at inspection.

If the courtyard were bare soil needing a base from scratch, the full pedestrian system starts from SAR 64 per m², so 162 × 64 = SAR 10,368 “from” in grey, plus the colour difference on the walkway.

What raises or lowers the price in Abqaiq?

• ✓Ground condition: A level compacted courtyard costs less than loose sand that must be removed and replaced with a base.
• ✓Colour and thickness: Light and coloured units cost a little more than grey, and 8 cm more than 6 cm.
• ✓Design: Two-tone borders, walkways and curves add cutting and time.
• ✓Area: Large areas such as mosque courtyards spread the trip and equipment over more square metres.
• ✓What must come out: Old tiles or cracked concrete lifted and carted away before starting.

How long does the work take in Abqaiq?

Where the ground is ready, a house yard needs only a few days on site. Large courtyards and bare ground take longer for digging and building the base in lifts, kerb concrete needs to set before compacting next to it, and summer working hours are shorter. The timetable goes into the signed agreement after the visit, and we split mosque courtyards into stages that keep the entrance open.

Repairing sunken interlock in Abqaiq

Repairing sunken interlock in Abqaiq starts with one question: why did it sink? In Abqaiq it is most often a base that was rolled bone-dry and never knitted together; after that come over-thick sand, a kerb that shifted, a pipe or condensate line soaking the ground, or thin 6 cm units carrying a car. We take up the dip, numbering the good units, clear out the old sand, re-wet and re-compact or rebuild the base, sort out the kerb or the water, and set the same units back with new ones only where pieces broke. The cost depends on the cause and the size, so we price it on site.

Old tiles or an old slab under the new paving in Abqaiq?

Over old tiles, we do not recommend it, because tiles are a smooth surface that neither drains nor holds the sand bed; it is better to lift them and check what lies beneath. Taking them up with their mortar is from SAR 14 a square metre. An intact slab that already falls the right way may take pavers on sand if we drill weep holes and the door and threshold heights still work; that is decided after a check.

Looking after interlock in Abqaiq: sand, joints and sinking

• ✓Sweeping: Wind-blown sand should be swept regularly, because heaps block the falls and hide dirt.
• ✓Joints: If you see empty joints after washing, sweep fine dry sand back in.
• ✓Heat: Interlock does not soften in heat like asphalt, but open edges and empty joints let units move as temperatures change.
• ✓Sinking: If a section sinks, we lift it, repair the base and re-lay the same units; look for a water leak if it keeps sinking in the same spot.
• ✓Replacement: A broken unit is lifted and replaced, so keep a few spares from the same batch.

Wind-blown sand: does it harm interlock?

Fine sand that settles into the joints does no harm and may even top up joints that had emptied. The harm comes from heaps that build up against walls and kerbs: they trap water after washing, cover drains and carry weed seeds. So we suggest a weekly sweep in windy seasons, and collecting the heaps rather than washing them into the drains. If the courtyard opens onto sandy land, a slightly higher kerb on that side, or a planted strip, reduces what blows in.

If damaged old tiles or concrete must be removed before re-laying, our demolition contractor in Abqaiq handles it.

Interlock, asphalt or concrete for a courtyard in Abqaiq?

For wide yards and workshop fronts see our asphalt contractor in Abqaiq, and for slabs and concrete bases concrete pouring in Abqaiq.

Common mistakes when laying interlock in the heat

• ✓Compacting a dry base: It looks firm on the day, then sinks a few months later.
• ✓A sand bed left exposed overnight: Wind and feet disturb it, so the paving ripples.
• ✓A dark colour on an open walkway: It gets much hotter in the sun.
• ✓Kerb concrete left to dry out: It dries too fast, weakens and cracks.
• ✓Working at midday: Exhausts the crew and causes mistakes in screeding and cutting.
• ✓A sudden step at the mosque entrance: Exposes elderly worshippers to tripping.

Receiving interlock in Abqaiq: a checklist

• ✓Water: Hose the courtyard: water runs to the drain points without puddles.
• ✓Stability: Walk the whole area; no unit rocks or makes a sound.
• ✓Joints: Full of sand, with units on straight lines.
• ✓Edges: Kerbs firm, straight and slightly above the neighbouring soil.
• ✓Thresholds: A smooth transition between walkway, gate and entrance.
• ✓Clean-up: Surplus sand, debris and shade netting removed.

How to order interlock paving in Abqaiq

1. 1
   Send photos and sizes
   Photos of the courtyard or yard, rough sizes and the district in Abqaiq.
2. 2
   Say how it will be used
   Pedestrians only, parking, or a mosque or majlis courtyard.
3. 3
   Initial estimate
   We reply with the proposed thickness, layers and colours and an estimated cost.
4. 4
   Inspection date
   We agree a day to come from Dammam, take levels and check the ground.
5. 5
   Agreement and work
   We write down the items, duration and working hours, and start at first light.

Why Aemar Al-Maryam for interlock paving in Abqaiq?

• ✓A working day built for the heat: Morning hours, shading, and the midday ban respected.
• ✓A wetted, compacted base: An invisible step that keeps the courtyard level.
• ✓Experience with mosque courtyards: Clear walkways, comfortable falls and staged work.
• ✓Published prices: A “from” price for each item, everything else at inspection.

Browse completed courtyards in our projects, and the service outline under interlock and kerb work.

Covering Abqaiq and its districts

We reach the homes, mosques and majlis buildings of Abqaiq on dates agreed from Dammam; our services in the town are on the Abqaiq page. In other cities: interlock paving in Jubail, about Industrial City footpaths, Al-Balad carports and steps, and interlock paving in Ras Tanura, about damp coastal ground. The full guide is interlock paving in Dammam.
