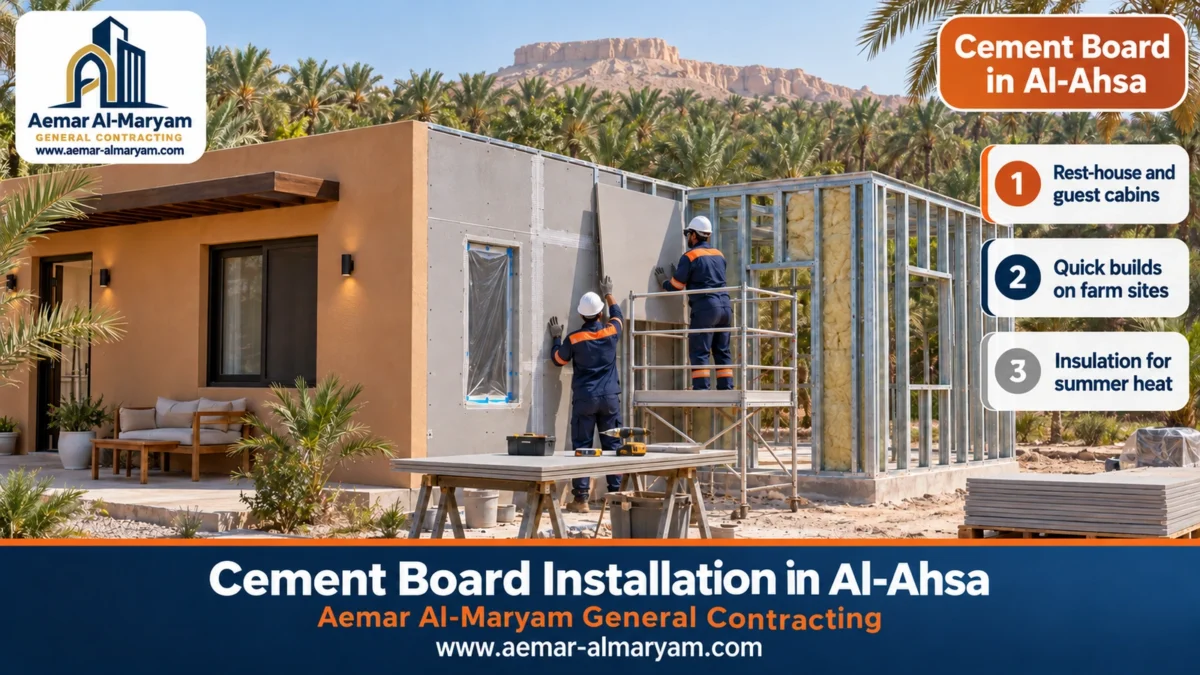

Cement Board Installation in Al-Ahsa – Rest-House Cabins & Date Stores

Cement board installation in Al-Ahsa is the quick way to add guest cabins to a rest house, a light majlis beside the pool, or a room for storing dates on the farm, without waiting weeks for blockwork, concrete and plaster. We screw fibre-reinforced cement boards to a galvanised steel frame, pack the space between the faces with rock wool, finish the joints and spray the outside in a warm clay tone that sits comfortably among the palms. Aemar Al-Maryam General Contracting builds these rooms across Hofuf, Mubarraz and the surrounding oasis villages. Insulated walls are priced from SAR 185 per square metre, supplied and fixed; it is an estimate that we confirm after seeing the site. Call or WhatsApp 0547879578.

Our base is Dammam, roughly 160 km by road from Al-Ahsa, so we organise jobs there differently. We start from your photos and measurements, make one inspection visit, and then the crew arrives with the boards, studs and insulation loaded in a single delivery. This page is written for rest-house and farm owners: rows of adjoining cabins, rest-house majlis rooms, date stores, spray-painted clay finishes, and then prices, worked examples, the installation sequence and the mistakes that ruin a wall.

Cement Board in Al-Ahsa: What It Is and Why Rest Houses Choose It

A cement board is a rigid panel of Portland cement and fine silica bound together with reinforcing fibre, formed under pressure and cured with steam; the result is hard, does not break down in damp conditions and does not soften in the sun. In Al-Ahsa three reasons push owners towards it again and again. The first is speed: a rest-house owner wants the guest rooms ready before the winter gatherings and the Eid visits, and a light frame goes up in days rather than weeks. The second is weight: many rest houses sit on sandy or silty ground close to irrigation water, and a light wall needs a simpler base than a block wall. The third is flexibility: a light room can be extended later by adding a neighbour that shares one of its walls, which is exactly what many families do as they grow or as the number of visitors rises.

The board alone does not make a good room, though. What keeps the wall sound for years is a straight galvanised frame, the right stud spacing, properly treated joints, insulation filling the cavity and a flexible exterior coating. This guide explains each of those parts in the language of a rest-house owner rather than a factory brochure.

Cement Board Thicknesses and Where They Go on a Rest House or Farm

The usual sheet is 120 cm wide and 240 cm long (1220 × 2440 mm exactly), covering roughly three square metres, and some suppliers stock longer sheets. Thickness follows the position and the job of the board:

Stud centres, how hard the wind hits the wall and the board maker’s data sheet decide the final thickness, not personal preference.

Cement Board Installation in Al-Ahsa: The Work We Take On

For us, cement board installation in Al-Ahsa means the whole system, not just fixing sheets. We set out the plan, fix the tracks to the base, stand the studs, fit the boards and insulation, treat the joints and hand the wall over ready for paint or already painted. Across the oasis, these requests come up again and again:

We Install Boards; We Do Not Sell Loose Sheets

We are an installation contractor, so we do not run a shop selling boards by the sheet. We supply boards, studs and insulation only inside an installation contract of our own, and we choose boards whose supplier can show compliance with the Gulf standard for flat fibre-cement sheets. If you already have the materials, we inspect them first and then fit them for a labour-only price.

Cement Board Guest Cabins and Majlis Rooms for Al-Ahsa Rest Houses

In Al-Ahsa the rest house is where the family meets at the weekend and where guests are received on holidays and at celebrations. Many start with a majlis and a pool and then need rooms where visitors can sleep, or that can be set aside for women and children. This is where cement board shines: we build the rooms in one row on a shared concrete base and spray them in a single colour, so they look like an original part of the rest house rather than a hurried add-on.

A Row of Adjoining Cabins: Shared Walls Lower the Cost

When three rooms are built side by side, each pair of neighbours shares one wall, so there is less wall area to pay for than with three separate rooms. We treat the shared wall with extra care: it gets a full fill of rock wool to cut sound between the rooms, and we avoid placing switches back to back in the same spot so noise does not leak through their boxes. The rooms can also be built in stages: the steel frame for all three at once, two rooms closed in now and the third later, a sight you will recognise from many rest houses.

The Light Majlis and Its Arcade

A rest-house majlis in cement board needs an open interior without columns in the middle, so we design the studs and the top beams to carry a roof across the full width, and we place windows between studs rather than over them. A front arcade shields the facade from the afternoon sun and keeps the wall cooler; we tie it to the building with a sealed detail at the junction so rain cannot run between the two roofs. The fireplace, the kitchen and full blockwork majlis designs are covered in our guide to the annex and majlis builder in Al-Ahsa.

A Small Bathroom for Each Guest Room

Many rest-house owners want a small bathroom attached to every guest room, and here cement board earns its place on the inside too, because water that would ruin gypsum leaves it intact. We build the bathroom walls in cement board, add a waterproofing layer over the floor and up the walls in the shower zone, and treat joints and screw heads before tiling. The board resists moisture but it is not a membrane that stops water passing through; the waterproofing on top is what protects the steel frame behind it. We plan the drain run with enough fall to the rest house’s main drain and fix the positions of the water heater and basin before the wall is closed. Bathroom prices are set at inspection because they depend on the number of fittings, the tiles and the length of the pipe runs.

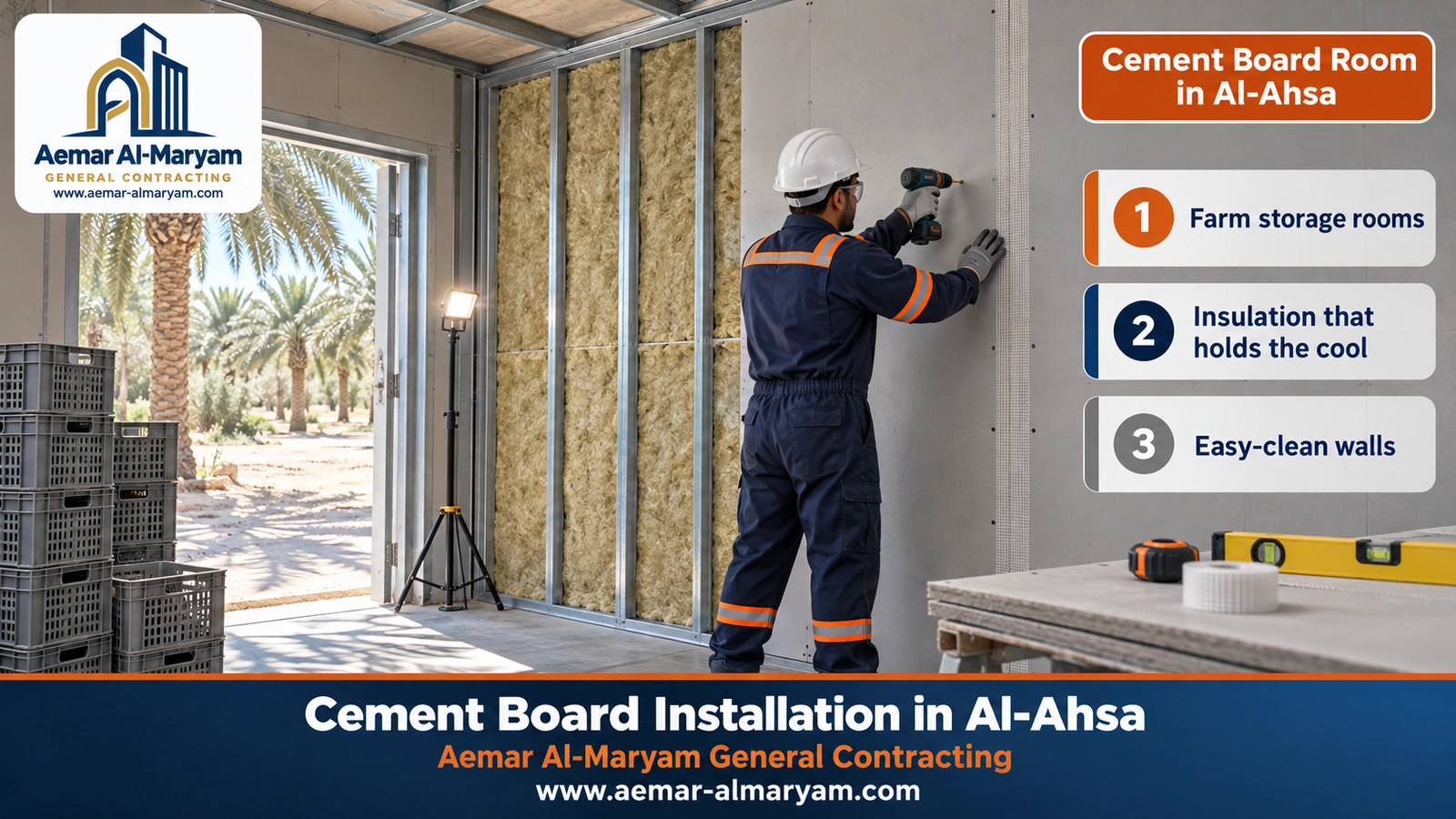

Cement Board Date-Storage Rooms on Al-Ahsa Farms

A date store on a farm needs two things before anything else: a wall that slows the heat coming in, and a room sealed tightly enough to keep out dust and insects. So we build it with a double-skin wall: a 12 mm board outside, rock wool filling the whole cavity between the studs, then an inner board, under an insulated sandwich-panel roof with a gentle slope. We lift the room’s floor above the farm ground on a concrete slab and stand the boards on a plinth or a tiled skirting so their bottom edge never meets irrigation or washing water.

• ●The door: a wide opening that lets date crates and trolleys in, with its frame stiffened inside the structure because the door opens and closes constantly in the season.
• ●Sealing: the junctions between wall, floor and roof are filled with sealant, and every pipe and cable entry is closed tightly, because any small gap becomes a way in for insects and dust.
• ●Cooling and air: we prepare the AC openings, the mounting points and their backing, and leave the unit’s capacity and type to the AC technician according to the room size and what it will hold.
• ●Floor and lower wall: tiles or a concrete floor that is easy to wash, with a tiled skirting protecting the bottom of the wall from water and trolleys.
• ●Lighting: ceiling points planned before the wall is closed, and switches by the door away from the wash-down area.

Before Building on a Farm: Land Use Comes First

Many rest houses and date stores sit on agricultural land, and what may be built there differs from a residential plot inside a neighbourhood. So we do not start any room on a farm until an engineering office has checked with the municipality how the land may be used, what type of building is allowed and how large it can be, and has prepared the drawings needed. This step protects you from building a room you might later be asked to remove, and it makes electrical connections and approvals easier.

Exterior Cement Board in Al-Ahsa: The Layers From Outside In

Exterior cement board in Al-Ahsa faces strong sun, dust and the damp of morning irrigation, so fixing the board and painting it straight away is not enough. The exterior wall we build is made of these layers:

1. 1
   Flexible exterior paint: a top coat that moves with the wall as it expands and contracts, sprayed in the clay or sand shade you choose.
2. 2
   Base coat with mesh: alkali-resistant glass-fibre mesh pressed into base coat along every joint and corner; on facades that take the full weather, the mesh and base coat cover the entire face.
3. 3
   12 mm cement board: fixed with corrosion-resistant screws every 20–30 cm, with a 3–5 mm gap to the next board.
4. 4
   Water and air barrier: a membrane behind the board, or a complete finishing system, as the board maker specifies.
5. 5
   Frame and insulation: galvanised studs at 40–60 cm centres with rock wool filling the space between them.
6. 6
   Inner face: cement board in wet rooms, or gypsum board in dry bedrooms.

Joints: Where a Wall Usually Cracks

The line between two boards is the weakest point of any cement board wall. If two boards are butted tight with no gap, each pushes against the other as it expands in the heat, and a long vertical crack appears after the first summer. If the joint is filled with ordinary interior filler and no mesh, it opens at the first big change in temperature. So we leave a small gap, lay the boards staggered like brick courses so no four corners ever share one point, and keep every joint clear of door and window corners.

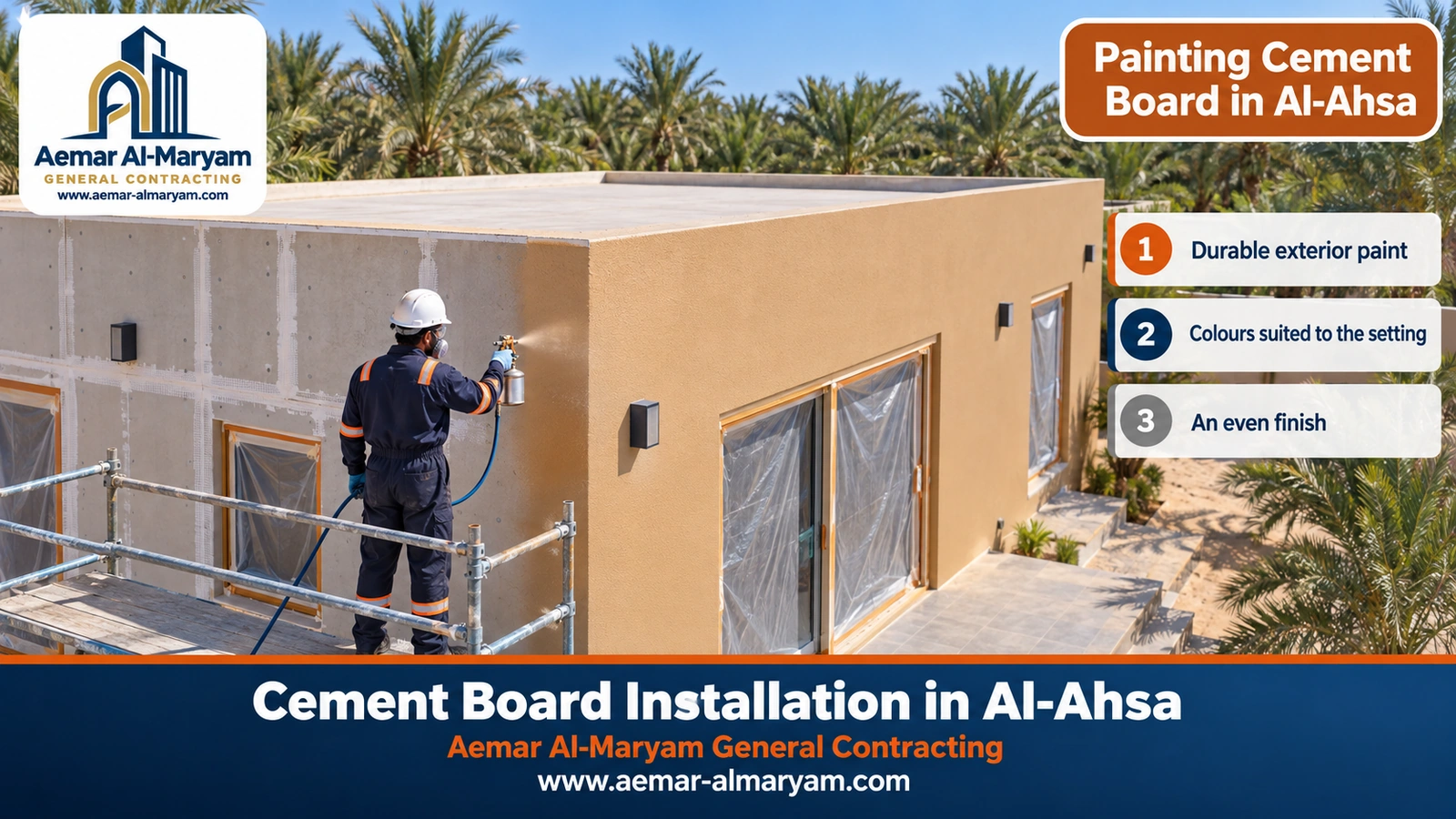

Spray Painting in Clay and Sand Tones

What Al-Ahsa rest-house owners ask for most is a new room whose colour matches the earth and the palms around it. Spray painting gives an even finish with no roller marks, and the surface can be smooth or carry a light texture reminiscent of traditional render. Light clay and sand shades reflect part of the sun’s heat, so the room stays cooler than one painted a dark colour, and they hide dust far better than bright white.

Before spraying we make sure the base coat has fully cured and that the joints do not show under raking light; we mask windows, floors and nearby planters, and pick a calm hour so the mist does not drift onto cars or the pool. Stone or a light profile render around the entrances can lift the facade, priced at inspection. Our other finishing work is described on the finishing service page.

Cement Board in the Al-Ahsa Climate: Heat, Irrigation and Dust

The oasis combines a hot, dry summer with local dampness from irrigation, palm groves and springs, and that mix calls for details a wall in a dry residential district does not need:

This is also why we do not accept gypsum board as an exterior wall. Its makers’ data require it to be kept dry and warn against long exposure above roughly 52 °C, a temperature that a wall facing the oasis sun reaches in summer without much effort.

Insulating Cement Board Rooms in Al-Ahsa

Cement board on its own is not a thermal insulator; comfort inside the room comes from the layers added to it. Rock wool fills the cavity between the studs without gaps, reduces both heat and sound, and does not burn easily. The sandwich-panel roof arrives insulated from the factory with a polyurethane or rock-wool core. We add a vapour barrier on the warm side where a room will be air-conditioned around the clock, as a date store often is. If you also want an existing concrete roof next to the new rooms waterproofed and insulated, our waterproofing and insulation team can handle it on the same trip.

Cement Board, Block or Gypsum Board in Al-Ahsa?

Each material has its place, and the right choice starts from what the room is for, how long it will be used and what the ground is like:

We often combine them: cement board outside, gypsum board on the inside face of dry bedrooms, and gypsum ceilings with concealed lighting. Gypsum details are in our guide to gypsum board installation in Dammam and on the gypsum board service page.

Cement Board Annexes in Al-Ahsa

For Al-Ahsa annexes, cement board works well when the annex is one or two rooms with a bathroom and you want it done quickly and kept light. For a large annex or a majlis meant to last for decades, block and concrete may be the better fit; a block annex shell starts from SAR 830 per square metre of floor area, while a standard-finish annex is priced from SAR 1,200 per square metre. The full comparison of systems, the permit amendment through Balady, and kitchen and fireplace details are in our guide to the annex and majlis builder in Al-Ahsa and on our annex and majlis building service page.

Cement Board Installation Prices in Al-Ahsa

Prices in Al-Ahsa are the same starting prices we use in Dammam, because we price the installed square metre, not the distance. The only extra for a city this far out is getting the crew and tools there; we set it after the inspection, scaled to the job, and it weighs less on each square metre when several jobs share one trip.

Cement Board Price With Installation in Al-Ahsa

Every figure is an estimate pending a site visit and an agreed scope; they can rise with greater height, thicker boards, a higher finish or difficult truck access to the room inside the farm. To compare with our other services, see the prices page.

Cement Board Sheet Prices

The price of a sheet and the price of an installed square metre are two very different things. Published Saudi market figures for a 1.22 × 2.44 m sheet run from roughly SAR 55 to 75 for a 9–10 mm board, roughly SAR 85 to 110 for 12 mm, and roughly SAR 130 to 170 for 15–18 mm, varying by source and quantity. An installed square metre, however, includes the galvanised studs, screws, rock wool, mesh, base coat, labour and offcuts, so dividing the sheet price by its area tells you nothing about the cost of a wall.

Cost of a 4×4 Cement Board Room at an Al-Ahsa Rest House

Take a guest room measuring 4 by 4 metres with a height of 3 metres, purely as an illustration. Its roof is 16 square metres of sandwich panel at 125, so SAR 2,000; its four walls come to 48 square metres at 185, so SAR 8,880; the total for the insulated shell is close to SAR 10,880. Outside that figure remain the door, the window, the electrics and plumbing, the floor tiles and the final spray.

Illustrative examples worked from the starting prices, using full wall area without deducting openings. Note that the three adjoining rooms cost less than three separate rooms (about SAR 27,810) because two walls are shared.

How to Lower the Cost of a Job in Al-Ahsa

• ●Group the work into one visit: guest rooms, the guard room and the boundary-wall cladding together rather than three trips.
• ●Choose sizes close to multiples of the board width (1.2 m) to reduce cutting and waste.
• ●Have the concrete base ready if you already have a concrete contractor, or ask us for it as part of our construction work.
• ●Provide a levelled track for the truck inside the rest house so boards are not carried by hand over a long distance.

Cement Board Installation Time in Al-Ahsa

For a single small room, cement board installation in Al-Ahsa needs only a handful of working days to raise the frame and fit boards and insulation, once the concrete base is ready and has had time to cure. After that come the joint treatment, the curing of the base coat and the spray, a stage that should never be rushed. A row of rooms or a majlis takes longer, depending on the number of rooms and bathrooms. Because the crew travels from Dammam, we prefer to stay on site until a full stage is finished rather than come and go, so we load every material in the first delivery and agree the working days with you in advance so they do not clash with gatherings at the rest house. We write the exact schedule after inspection, split into clear stages.

Cement Board Installation Steps on an Al-Ahsa Rest House or Farm

1. 1
   Photos and measurements: you send photos of the spot, its length and width, what you want built and the location of the rest house on WhatsApp.
2. 2
   Inspection visit: we check the ground, its level and how close the irrigation is, and fix the position of the base, the facade direction and the doors.
3. 3
   Base: a concrete slab or plinth raised above the ground with a damp-proof layer under the bottom track.
4. 4
   Frame: tracks fixed to the base, studs set at their spacing, and openings and hanging points stiffened.
5. 5
   Services: electrical conduit and plumbing run inside the frame before closing, along clear lines that we photograph for you.
6. 6
   Outer boards: 12 mm boards with staggered joints, corrosion-resistant screws and sealant around openings.
7. 7
   Insulation: rock wool filling the cavity completely, plus a vapour barrier where needed.
8. 8
   Inner face and roof: the inner board, and a sandwich-panel roof with fall and drainage.
9. 9
   Joints: alkali-resistant mesh and base coat, then a wait for full curing.
10. 10
    Paint and handover: the chosen clay tone sprayed on, then a joint inspection of the wall with you under raking light.

Cutting Dust

Cement board contains silica, and cutting it with a power saw releases fine dust that harms the lungs. So we cut in the open air away from seating areas and the pool, score and snap where the size allows, use a saw with a dust shroud and extraction when sawing is unavoidable, wear masks, and collect the dust with an extraction vacuum, never by dry sweeping.

Common Cement Board Mistakes in Al-Ahsa

Before painting we check with you: the wall is straight under a long straightedge, no screw heads show, corners and openings are sealed, and the base coat is dry. If you have an older light room whose joints have cracked or whose frame has rusted, the repair is covered in our guide to the renovation contractor in Al-Ahsa.

Hofuf and Mubarraz: Where We Install Cement Board in Al-Ahsa

We work in the two main cities of Al-Ahsa and in the villages and farms around them, and the visit is booked the same way wherever you are in the governorate.

Cement Board Installation in Hofuf

In Hofuf we are often asked for extra rooms in house courtyards, driver and housemaid rooms, and for recladding boundary walls and old walls with new boards before painting them. Working inside residential districts needs a plan for parking and unloading the boards without blocking the street, which we agree with you before delivery day.

Cement Board Installation in Mubarraz

Mubarraz adjoins Hofuf on its northern side, and houses, rest houses and farms sit close together there, so the requests vary between a guest room at a rest house, a tool store on a farm and a light majlis in a house courtyard. We can serve one site in Mubarraz and another in Hofuf on the same trip when the dates line up.

Districts we serve include:

For more on our services in the governorate see the Al-Ahsa area page. We also install cement board in Khafji and Hafr Al-Batin, and the complete guide to the system is our page on cement board installation in Dammam.

How to Order Cement Board Installation in Al-Ahsa

1. 1
   Send photos: wide shots of the spot taken from several sides, plus the ground or existing base if there is one, on WhatsApp 0547879578.
2. 2
   Write the sizes and the use: the room’s length, width and height, whether it is for guests, dates or a guard, and how many rooms.
3. 3
   Give the location: the district or village name, a map pin, and whether the land is agricultural or residential.
4. 4
   Receive the estimate: we send an initial estimated cost, then book the inspection.
5. 5
   Agree and build: after inspection we confirm the price and schedule, and the crew arrives with all the materials.

What You Get With Aemar Al-Maryam in Al-Ahsa

• ✓We build the complete wall system: frame, insulation, joints and paint, not just boards screwed on.
• ✓We know what rest houses and farms need: a raised base, tight sealing and protection from irrigation damp.
• ✓Clear starting prices per square metre, and worked examples before you commit.
• ✓We organise the job from Dammam with one inspection visit and a single grouped delivery.
• ✓We photograph the services inside the wall before closing it, and hand over after a joint inspection.
• ✓Our previous work is on the projects page.
