A new house in Abqaiq, finished and waiting for its meter: that is the most common situation behind a search for an electrician in Abqaiq. At Aemar Al-Maryam General Contracting we prepare the meter recess in the boundary wall and its cable outlets, wire new houses with cables sized for summer heat and long runs, install the board, earthing and RCD protection, run air-conditioning lines, and fit high-bay lighting in warehouses and workshops from guarded lifting platforms. Labour rates begin at SAR 37 for a point, SAR 28 for each square metre of rough-in, SAR 370 for a board and SAR 275 for an earthing system, all of them estimates that we firm up after the site visit; the cost of the trip out from Dammam is fixed at that same inspection. Call or message 0547879578.
Abqaiq lies along the Dhahran road as its own governorate. Its residential districts keep growing with new houses that families build for themselves, and around it there is industrial activity, warehouses and workshops. Most electrical work here comes down to two things: houses that need to pass the utility’s connection checks at the first inspection, and buildings that need cables able to carry heavy air-conditioning loads through a long desert summer. So this guide starts with the meter, moves on to cable sizing, then to warehouses, and then covers everything else homeowners ask for.
What we do in Abqaiq, in brief
- New houses: the meter recess in the boundary wall, cable outlets, earthing, the main cable to the board and full rough-in before plaster.
- Cable sizing: calculated from load, length of run and surrounding temperature, with the breaker chosen to match, never guessed from habit.
- Warehouses and workshops: high-bay lighting on suspended cable trays, installed from lifting platforms with full guardrails.
- Prices start from: point 37, rough-in SAR 28/m², AC line 120, board 370, earthing 275 SAR. Warehouse lighting and travel after inspection.
- Booking: planned trips out of Dammam that bundle neighbouring jobs together; no emergency call-outs.
- Contact: 0547879578, with a photo of the wall, the board or the drawing.

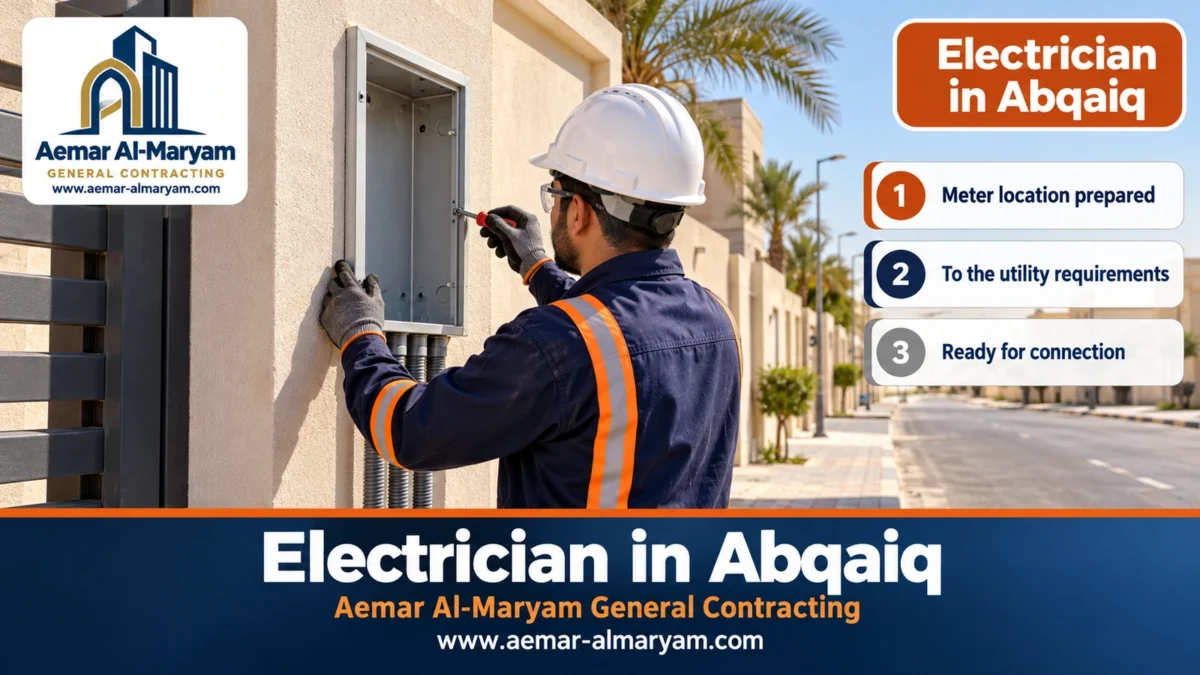

Preparing the meter recess in a new Abqaiq house
The short answer: the meter belongs on the boundary of the plot, in the boundary wall or facade, inside your property line and in keeping with the elevation, as the Ministry of Municipalities and Housing requires for homes. In its guide for engineering offices, the Saudi Electricity Company lists among the conditions for connecting a residential building that the meter position is prepared to its technical requirements, with cable outlets of the approved sizes, that the earthing is in place and that the thermal insulation has been carried out. The guide also says that up to eight meters go on the front wall facing outwards; more than that needs approval for a side wall or a meter room.
In a new Abqaiq house we leave a clean, square-framed recess in the boundary wall and run cable conduits of consistent diameter to it: one for the incoming supply cable from the network and one for the outgoing cable to the board inside the house. Then we fix the metal meter cabinet flush with the facade. We make sure it is easy to reach for reading and maintenance, and that no gate leaf, canopy or planter will block it.
Who applies for the connection?
The owner files the SEC application personally, attaching the building permit. We prepare everything SEC inspects inside the plot: the meter position, cable outlets, earthing, wiring and board. We do not promise SEC’s timings on its behalf.
A checklist before you apply for a connection
- 1Building permit
Ready in the owner’s name and matching what was actually built. - 2Thermal insulation
Done in walls and roof as on the drawing, since SEC follows up on it. - 3Meter position
Recess complete, cabinet fixed, cable conduits open and not blocked with cement. - 4Earthing
Electrode installed, its resistance measured, and the protective conductor run to the board. - 5Board
Installed and labelled, with the main switch off until the connection is made.
Mistakes we see at the meter position
- A recess of the wrong size: too small for the cabinet or too shallow, so the wall gets broken open after it has been painted.
- Kinked or crushed conduits: the main cable will not pull through, and the yard has to be dug up again.
- A meter behind the gate leaf: hard to reach, or locked away.
- No earthing at inspection: the connection waits until it is completed.
- A main cable smaller than the house load: it runs hot in summer and limits adding AC units later.
Electrical contractor in Abqaiq, or a handyman visit?
For swapping a socket or hanging a lamp, any handyman electrician will do, and we simply fold such small tasks into a visit that is already booked. A new house waiting for its meter, a house getting extra AC units and an annex, or a warehouse that needs full lighting is a different matter: it calls for a contractor who reads the drawing, works out the loads and cable sizes, tests every circuit before the walls are closed and leaves you a written record. That is what we offer in Abqaiq: planned work by appointment, with no promise of night call-outs.

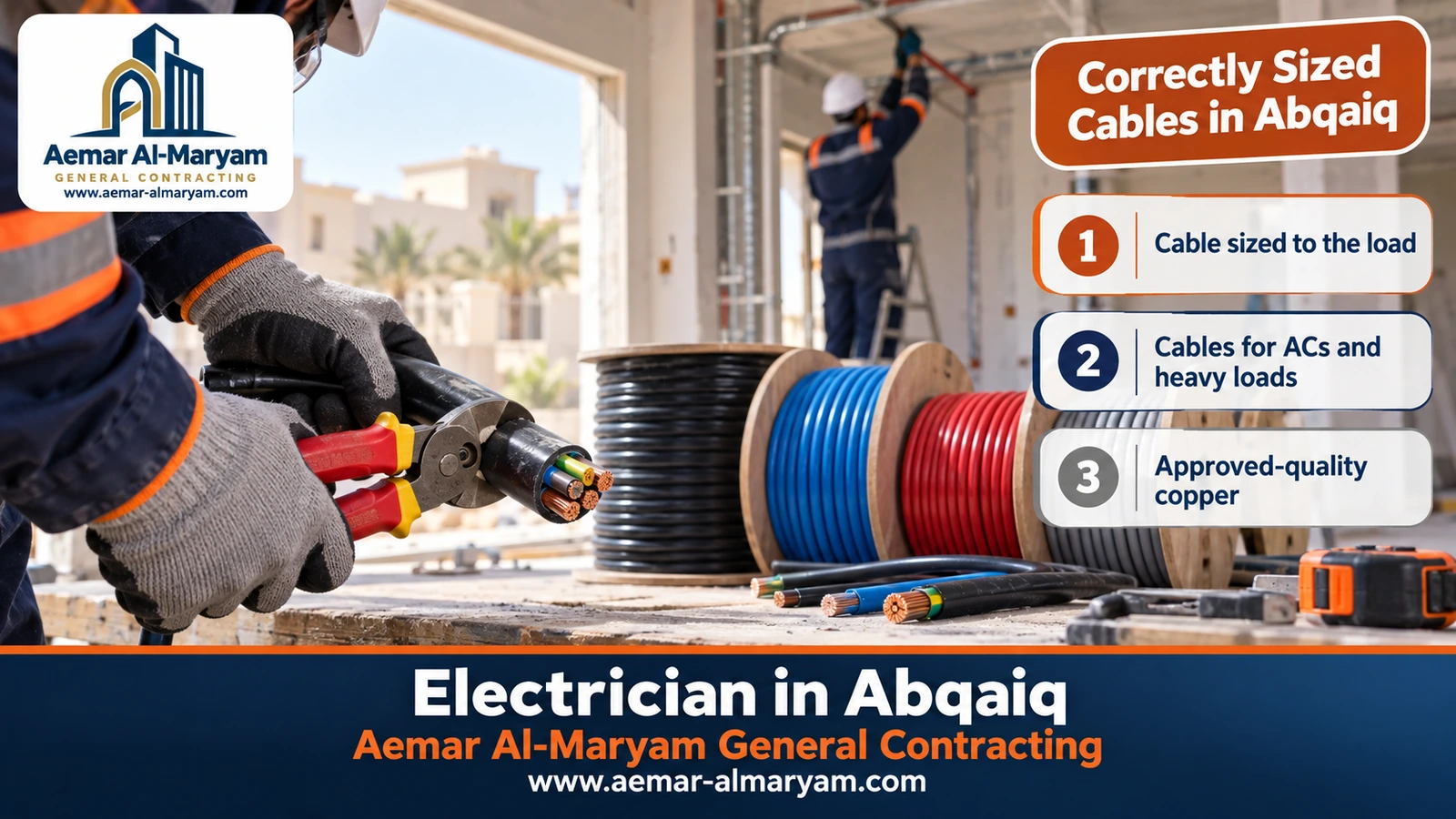

Correct cable sizing in Abqaiq: why we never choose by habit
Because a size that is fine for a circuit in a small room may not be fine for the same circuit when its run gets longer or the space it passes through gets hotter. The Saudi Electrical Code SBC 401 requires the conductor cross-section to be determined for both normal operating and fault conditions, and the international standards it is built on tie that cross-section to the load, the installation method, the surrounding temperature and the voltage drop along the cable. In Abqaiq, where some cables run across roofs and outside walls under the summer sun, heat is a real factor in the calculation, not a footnote.
That is why we choose each circuit’s size together with the breaker that protects it. The breaker protects the cable; if a breaker is larger than the cable can carry, the cable overheats before the breaker trips. This is the mistake we meet most often in houses that get extra AC units after finishing: the breaker is upsized because it keeps tripping, and the cable stays as it was.
On the other hand, a cable larger than needed is not a safety fault, but it wastes money and may not fit the terminal of the breaker or socket. So we do not oversize to reassure ourselves. We calculate, and put the spare capacity where it belongs: in the main cable, the board and the empty conduits, where future additions really arrive.
| Circuit | Common Eastern Province practice | What changes it in Abqaiq |
|---|---|---|
| Lighting | 1.5 to 2.5 mm² | Run length in large houses |
| General sockets | 2.5 to 4 mm² | Number of appliances on the circuit |
| Split AC | 4 to 6 mm² | Unit rating and a cable run across the roof |
| Water heater and oven | 4 to 6 mm² | Rating and distance from the board |
| Main cable from the meter | By the meter breaker and load calculation | Future loads and heat |
| Annex or warehouse feeder | By load and distance | Voltage drop over long runs |
The table is for understanding only. For a new house we take the final size from the approved electrical drawing, and for additions and existing houses we calculate it from the loads and write it into the circuit schedule we hand over.
How to tell the cable size in your house
The size is printed on the outer sheath of the cable in square millimetres, and you can also judge it from the thickness of the copper conductor at a cut end. If you cannot find the print, a clear photo of the open board is enough for us to read a first estimate from the breakers and the cables entering them, which we then confirm by measurement on the visit.
The main cable from the meter to the board
This cable carries the whole house, and its size is set by the meter breaker rating and the total expected load. On the 400/230 V network, SEC sizes home meter breakers anywhere between 20 A and 200 A. We run the main cable in a buried conduit from the meter recess to the board along the shortest practical route, leave enough length at both ends for termination, and make sure the conduit is wide enough to pull the cable through without damaging its insulation. If the owner expects an annex or more AC units, it is better to size the cable for them now.

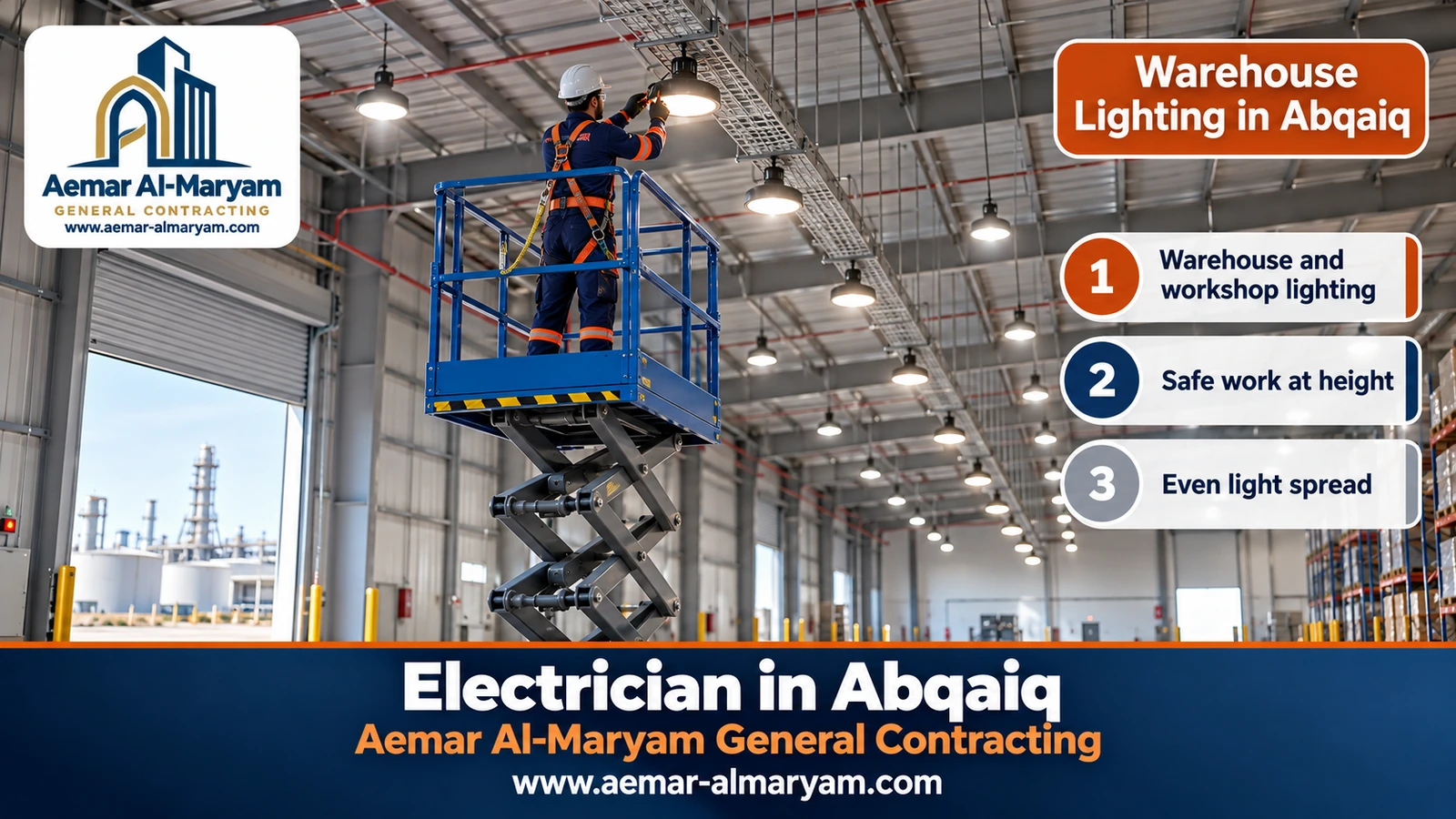

Warehouse high-bay lighting in Abqaiq from guarded lifts
Around Abqaiq there are new warehouses and workshops with high metal roofs, and lighting them is a different job from lighting houses. We suspend cable trays under the roof along the length of the building, run the circuit cables on them, and fit high-bay fittings designed for tall roofs at spacings that give even light across the floor. We spread the fittings over several circuits so the whole warehouse does not go dark if one breaker trips.
Working at height is the riskiest part of this job, so we do not use long ladders or improvised scaffolding. We work from a scissor lift or a lifting platform with full guardrails, check before going up that the floor is level and clear, and cordon off the area beneath the platform while we work. We agree with the warehouse owner to work in a bay cleared of stock and forklifts.
- Circuit layout: rows of fittings on alternating circuits, with switches at the entrances or in a lighting board.
- Fittings: designed for high roofs and dusty spaces, chosen with the owner to suit the use of the building.
- Board: a separate lighting board or a clearly marked section of the main board, with a breaker for each circuit.
- Sockets and equipment: power points at a suitable height, and dedicated circuits for large machines.
In workshops we add power points on the walls mounted above splash height for floor washing, dedicated circuits for compressors, welders and large machines according to their rating, and an RCD for general-purpose sockets. We keep the lighting and AC of the site office separate from the warehouse circuits so the office keeps working if a circuit trips on the shop floor. And we hand the owner a schedule of every circuit and what it feeds, because staff change and the schedule stays.
We quote warehouse lighting only after seeing the building, since the figure turns on the roof height, the floor area, the number and type of fittings, the length of cable tray and the availability of a lifting platform. In warehouses we only take on general electrical work; control panels for production lines and large industrial plants are engineering work with their own specialist contractors.
Electrician in Abqaiq: what we do and how we reach you
Our Abqaiq visits are planned from Dammam ahead of time. Once you send photos and the drawing, we estimate the work and fix an inspection day, and we try to group several jobs in the governorate on it. The trip cost depends on how many days and how many hands the job needs, so we fix it at the site visit rather than quoting a flat fee. The more you group, for example meter preparation together with the house rough-in and the AC lines, the smaller the share each item carries.
■ New houses
Full rough-in from the drawing, with the meter position and earthing ready before you apply for connection.
■ Cooling loads
Every AC unit on its own line and breaker, cabled for rooftop heat.
■ Warehouses and workshops
High-bay lighting, cable trays and power points for equipment.
■ Existing houses
Rewiring, new boards, earthing and extra points.
Electrical rough-in for new villas and houses in Abqaiq
We begin once the walls are built and the roof is cast, and finish before any plaster goes on. Box positions are set out from where the furniture will stand and from the final tiled floor height; chases are saw-cut, fix boxes and conduits, coordinate with the plumbing crew so routes do not clash, pull cables at the calculated sizes, assemble the board, and test continuity and insulation resistance before the plasterers start, because SBC 401 says no installation may be energised until it has been inspected and tested.
We suggest a few things to new-house owners in Abqaiq that save money later: empty conduits to the roof for extra AC units or solar panels, a dedicated feed to the parking bay for a future car charger, and camera outlets along the outer wall. Building rough-in starts from SAR 28 per square metre and a point from SAR 37. For the building trades that go with it in the same governorate, see renovation in Abqaiq and plastering in Abqaiq.
How electrics fit with the other trades at the shell stage
Electrics come after blockwork, alongside plumbing and before plaster, gypsum and tiling, and any break in that order costs money. If a wall is plastered before rough-in it gets broken open again; if tiles go down before box levels are set, boxes end up sunken or proud; if a gypsum ceiling is closed before spotlight cables are pulled, it needs extra access hatches. So we ask for the main contractor’s or owner’s schedule from the start, agree the day we go in and the day we leave, and hand walls over to the plasterers straight after testing. Where Aemar Al-Maryam carries out the other stages too, we coordinate it between our own crews.
How we count electrical points in an Abqaiq house
We count every socket, switch and lighting outlet as one point, and the price covers its box, its conduit and the cable that runs from it to the board. During rough-in a point costs from SAR 37. Once a house is finished and lived in, adding one costs from SAR 75, since the wall has to be chased open and then repaired. An AC or water-heater line counts as a dedicated line because its cable is larger and it has its own breaker.
Boards, earthing and RCD protection in Abqaiq
We mount the board indoors in a dry, easily reached place, with enough ways for the current circuits and spares for additions, a main isolator and 30 mA earth-leakage protection covering sockets, wet rooms, the kitchen and anything outdoors. That protection is what the national wiring code, SBC 401, asks for, following the IEC 60364 family it was drafted from. Each breaker carries a label naming its circuit.
Earthing is a condition for connection, so we install the electrode and measure its resistance before SEC comes to inspect, and carry the earth conductor, green and yellow, to each outlet and each exposed metal part. Expect earthing from SAR 275 and a new or replacement board from SAR 370.
⚠ Sparks or a burning smell?
Cut the supply at the main switch only if that is safe to do, keep everyone clear, and ring Civil Defence or the SEC fault line. Our crews are booked in advance rather than on call, so we come once things are safe, test the wiring and trace what went wrong.
Air-conditioning lines in Abqaiq
Abqaiq summers are long and hot, and air conditioners are the biggest load in any house. Each split unit gets its own line and breaker from the board, with the cable size calculated from the unit rating and the run length. We avoid leaving cable exposed on the roof in the sun, putting it in UV-resistant conduit or in shade. Each new AC line with its own breaker costs from SAR 120. Where an old board has no room for new lines, the answer is a bigger board or a separate AC sub-board, not loading the old lines beyond what they can take.
Main breaker tripping on summer afternoons?
When every air conditioner runs at once in peak heat, the house load can exceed the main breaker or the meter capacity. Raising the breaker is not the answer; finding the real load is. We measure current at peak hours and check how loads are spread across the phases, because one phase may be overloaded while another is nearly idle. If the total load is above the meter capacity, the route is a meter upgrade with SEC. Board servicing and load rebalancing start from SAR 185.
Electrics for annexes and outdoor majlis rooms in Abqaiq
Abqaiq families often add a majlis or annex in the yard, and it should have its own small board by the door, holding an isolator, earth-leakage protection and separate breakers for its lights, sockets and air conditioning, fed by one calculated cable from the main board in a conduit buried under the yard. Distance matters here, because the longer the cable the greater the voltage drop, so we size it from load and length together. Before we start we check the meter breaker can take the addition; otherwise SEC must upgrade the meter, while a meter of its own is only issued when the permit lists the annex as an independent unit, and the owner requests it. For building the annex itself, see annex and majlis building in Abqaiq.
Bathrooms, kitchens and low-current systems
In bathrooms we follow the code’s bathroom zones: no socket in the shower or bath zone, splash-proof light fittings above them, and circuits behind an RCD. Heaters get their own circuit, switched by a two-pole switch mounted outside the bathroom door, with the hook-up costing from SAR 65; its pipes and safety valve are plumbing work, covered in plumber in Abqaiq. In kitchens we place sockets above the worktop at sensible spacing, with dedicated lines for the oven and large appliances.
During the same rough-in we lay conduits for low-current systems such as internet, satellite, intercom and cameras, on routes separate from power cables to avoid interference. Each data or dish outlet costs from SAR 90, while intercom and CCTV systems are quoted on site depending on the equipment.
Tests before the walls close and before handover
We never hand a wall to the plasterers before testing what is inside it, because a fault found after painting costs many times more than one found before. These are the tests we carry out on new houses in Abqaiq:
- Continuity: every conductor, including the protective conductor, is continuous from the board to the last box.
- Insulation resistance: measured with an insulation tester between conductors and between them and earth, before appliances are connected.
- Polarity: switches break the line, not the neutral, and socket terminals are the right way round.
- RCDs: once the supply is on, we test them with an instrument that measures the trip time.
- Circuit schedule: a written schedule of every circuit, its cable size and its breaker.
Rewiring older houses in Abqaiq
Abqaiq’s older homes can still carry earth-free twin wiring, cables too thin for modern AC loads, or 127 V outlets. An insulation test on every circuit tells us how far to go: one bad length (from SAR 165), a room at a time (from SAR 460), or the whole house, which we quote after testing. When a home moves from 110 V to 220 V, we handle everything behind the meter, including the board, the breakers and new three-pin outlets that meet the Saudi plug standard, and SEC handles the supply side. Any repainting afterwards goes through painting in Abqaiq.
Boundary-wall and yard lighting in Abqaiq
In new houses many owners want lights on the boundary wall, over the gate and in the yard and car port. We use floodlights rated for dust and rain, lay the cable underground in conduit with marker tape above it, and give the outside lights a circuit and earth-leakage device of their own, switched from indoors or by a dusk sensor. Each outdoor light costs from SAR 75. Inside, spotlights cost from SAR 9 apiece, a chandelier from SAR 55 and LED strip from SAR 45 a metre; ceilings are covered in gypsum board installation in Abqaiq.
Common mistakes in new Abqaiq houses
- Several AC units on one line: to save cable, so the breaker trips every afternoon.
- A board with no spare ways: so any later addition needs a new board.
- Exposed cable on the roof: its insulation goes brittle in the sun within a few years.
- Plastering over untested wiring: a broken core is only found once the paint is dry.
- Leaving earthing until inspection day: so the connection is delayed until it is done.
Electrical prices in Abqaiq
Abqaiq jobs are charged at our standard Dammam rates plus a trip cost we agree at the site visit. Figures are labour only unless a line says otherwise, you choose the materials, and the drawing or the inspection settles the final sum.
| Work | Priced per | From (SAR) |
|---|---|---|
| Rough-in labour for a new house, villa or annex | m² of built-up area | 28 |
| Light or socket point in a rough-in project | point | 37 |
| Split-AC line with breaker | line | 120 |
| Supply to a water heater or exhaust fan | point | 65 |
| Earth electrode and conductors for the house | system | 275 |
| New or replacement board, connected | board | 370 |
| Additional breaker in the board | each | 90 |
| Board service and phase balancing | board | 185 |
| Additional point in an existing house | point | 75 |
| Whole room, first fix or rewire | room | 460 |
| Damaged cable section replaced | length or circuit | 165 |
| Socket or switch fitted after painting | piece | 18 |
| Spotlight with gypsum hole | piece | 9 |
| Chandelier or pendant light | piece | 55 |
| Concealed lighting or LED strip | metre run | 45 |
| Wall, yard or car-port floodlight | point | 75 |
| Internet or satellite outlet | point | 90 |
| Test and diagnosis visit | visit | 90 |
| Meter recess, conduits and main cable | — | After inspection |
| Warehouse and high-roof lighting | — | After inspection |
| Rewiring a lived-in house, or converting it to 220 V | — | After inspection |
| Travel from Dammam to Abqaiq | — | After inspection |
Worked example: a new house in Abqaiq
A new house with 240 m² of built-up area, five split AC units and two water heaters, needing earthing before SEC’s inspection:
- Rough-in: 240 m² × SAR 28 = SAR 6,720
- Five AC lines with breakers: 5 × SAR 120 = SAR 600
- Two water-heater connections: 2 × SAR 65 = SAR 130
- Earthing system: SAR 275
- Labour subtotal: SAR 7,725. Cables, breakers and accessories come on top, as do the meter recess, the main cable and the trip from Dammam.
Treat this as a guide only: your own quote is built from your drawing, your point count and your loads.
How to book an electrician in Abqaiq, step by step
- 1Share plans and pictures
Your house plan or pictures of the wall and board, the number of AC units and the building stage. - 2Load review
We estimate the loads and the main cable size, and ask about expected additions. - 3Site visit
On the day we agree, we mark out the meter, the board and every cable route. - 4Written price list
A separate figure for rough-in, AC lines, board, earthing, meter work and the trip. - 5Installation and testing
Continuity and insulation measured before plaster; RCDs tested after energising. - 6Handover
A written circuit schedule and a meter position ready for SEC’s inspection.
Your WhatsApp checklist for an Abqaiq quote
- The house drawing or dimensions and the built-up area.
- A photo of the wall where the meter will go, or of the existing meter.
- A photo of the open board if the house is already built.
- How many air conditioners and heaters, and any heavy machines.
- For a warehouse: floor area, roof height and the lighting you need.
- Your preferred timing.
Message it all to 0547879578; we come back with any questions, a cost range and a date to visit.
What sets our Abqaiq electrical work apart
■ Meter ready for inspection
Recess, cable outlets and earthing to SEC’s requirements the first time.
■ Calculated cables
Each circuit sized with its breaker and written into the circuit schedule.
■ Safe work at height
Guarded lifting platforms in warehouses, not improvised ladders.
■ Grouped visits
We group nearby jobs to keep your travel cost down.
As a general contracting firm, if the job needs a concrete cut or a core hole for a cable, we coordinate it through concrete cutting in Abqaiq and core drilling in Abqaiq. Photos of finished jobs are in our project gallery.
Our coverage in Abqaiq
We serve houses, villas, warehouses and workshops in Abqaiq on scheduled visits from Dammam. Everything we offer in the governorate sits on the Abqaiq page, the electrical service on electrical works, our full Dammam guide at electrician in Dammam, general rates on the prices page and the online form on the quote page.
