Annex & Majlis Builder in Ras Tanura – Annexes Built for Sea Air and Salt

An annex builder in Ras Tanura works against something every coastal resident knows: salt. Sea air carries salty moisture that settles on walls and windows, the water table lies only a short way down, and steel that is not properly protected rusts long before its time. So we build annexes in Ras Tanura and Rahima differently from the very first rebar cage: deeper concrete cover held by spacers, damp-proofed ground beams and a membrane under the slab, and powder-coated aluminium with stainless fixings on everything that faces the sea. That is what Aemar Al-Maryam General Contracting offers; reach us on 0547879578.

On handover day, an annex near the sea can look like any other. The difference shows years later: do the columns stay sound, or do rust lines and cracks appear? Do the window frames keep their colour, or do their corners peel and blister? This page explains what we do before the pour, below ground and around the windows so a majlis or annex lasts longer, then gives you the prices, worked examples and how to order.

Annex Construction in Ras Tanura: What Owners Usually Ask For

Annex construction in Ras Tanura tends to revolve around the house and the sea together: a men’s majlis in the courtyard that receives guests away from the family, a guest annex with a terrace overlooking the water, a driver’s room and laundry by the gate, or a rooftop room for a growing family. Each sits differently on the plot and meets the wind and spray differently. So at the inspection we identify which faces of the annex will look towards the sea, give those the best frames and the strongest protection, and leave sheltered faces at a normal specification so you do not pay for more than you need.

Annex Builder in Ras Tanura: What Changes Near the Sea?

An annex builder in Ras Tanura deals with three opponents you will not see on the drawing. Chlorides carried by sea air creep into concrete until they reach the steel. High humidity keeps surfaces wet for long hours, speeding rust on unprotected metal and peeling on weak paint. And salty groundwater close to the surface attacks footings and ground beams from below. Every decision in a seaside annex has to answer one question: how do we keep salt away from the steel?

None of this makes building near the sea harder than anywhere else; it just makes the small details decisive. A plastic spacer that costs next to nothing makes a large difference to a column’s life. A coat of bitumen on a ground beam protects it for years. A stainless screw instead of an ordinary one prevents a rust stain running down the facade. We go through these details one at a time below.

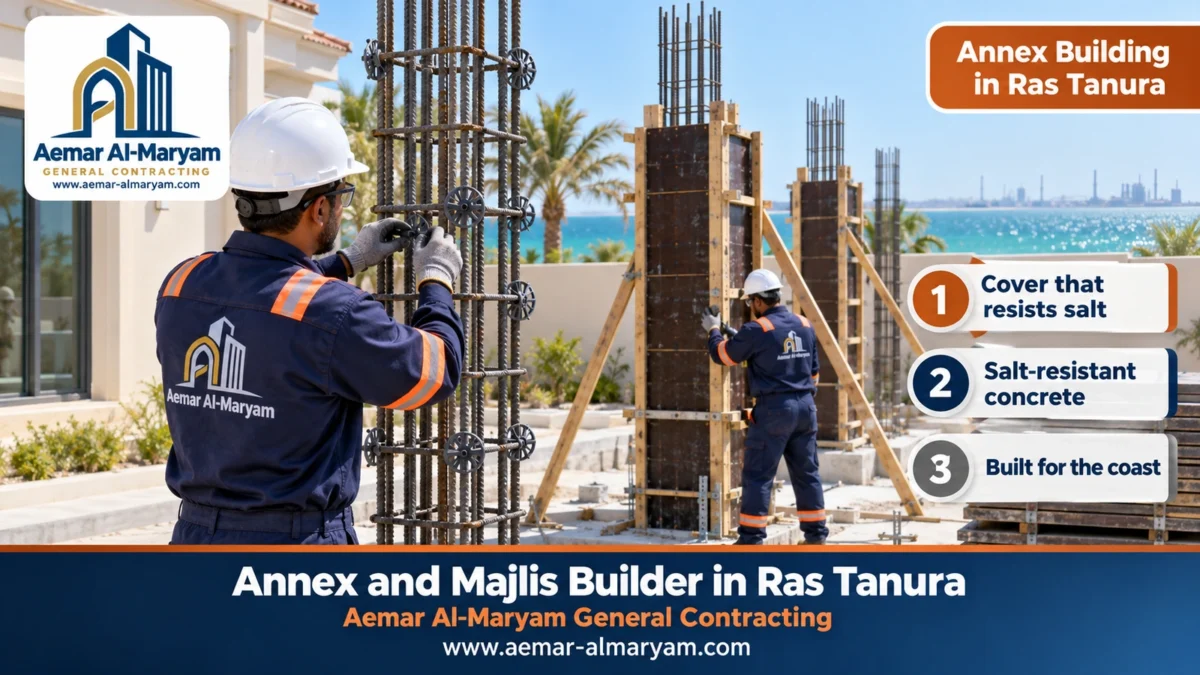

Concrete Cover and Spacers: Protecting the Steel in Ras Tanura Annexes

Concrete cover is the depth of concrete between the face of an element and the nearest reinforcing bar, and it is the first line of defence in any building near the sea. For Ras Tanura annexes we ask the engineer to set a deeper cover than an inland interior element would get, especially for footings, ground beams and external columns, because salt needs longer to penetrate a greater depth of dense concrete.

How we actually hold that cover on site

A number on the drawing protects nothing if the cage shifts during the pour and the bars end up against the formwork. So we clip round plastic spacers onto column and footing bars at regular intervals, set chairs under slab and roof steel, and measure the gap between bar and mould at several points before every pour. The column formwork panels are cleaned and oiled so the concrete comes out with a tight, honeycomb-free face, because surface voids are a shortcut for salt.

The concrete itself: density and curing

Generous cover is not enough if the concrete is porous. We compact it properly with a poker vibrator to drive out air, and keep it wet for several days after the pour so the outer layer does not dry too quickly and craze. Where the engineer specifies sulfate-resisting cement or admixtures that reduce permeability for elements in contact with soil, we follow that. Pouring details are on the concrete pouring service page.

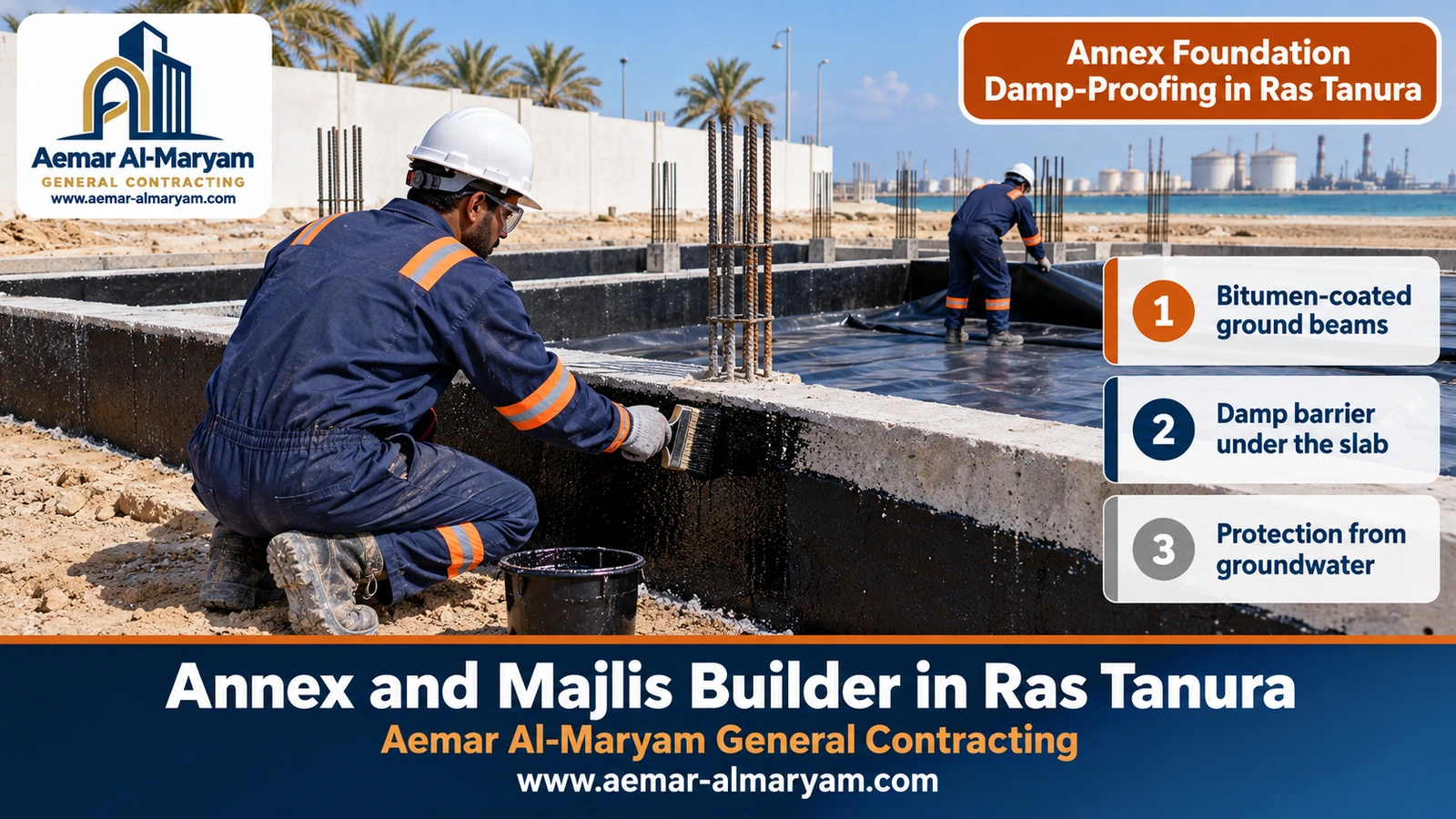

Damp-Proofing Ground Beams and Under the Slab: Moisture Comes from Below Too

Protecting the foundations of a Ras Tanura annex matters as much as protecting its steel, because coastal soil is often damp and salty and the groundwater is near. Buried concrete soaks up that moisture unless it is protected, and the wall above draws water upwards, so white salt bloom appears on the render and paint flakes off the bottom of the walls within a short time.

1. 1
   Blinding layer: a lean concrete layer under the footings that separates them from the soil and gives a clean surface for fixing steel.
2. 2
   Bitumen on buried concrete: two coats on the sides of footings, necks and ground beams once the concrete is dry and clean.
3. 3
   Clean compacted backfill: clean material placed in layers, dampened and compacted, not mixed excavation spoil.
4. 4
   Membrane under the slab: a thick polyethylene sheet with generous laps that stops damp rising into the annex floor.
5. 5
   Damp-proof course: a moisture barrier between the ground beam and the first block course so the wall cannot wick water upward.

None of these layers can be seen after handover, which is why we send you photos of each stage before it is backfilled. We also recommend setting the annex floor above the courtyard and sloping the courtyard away from the walls, since rain and courtyard washing are enough to ruin the foot of an unprotected wall. If you want the roof fully insulated too, details are on waterproofing and insulation.

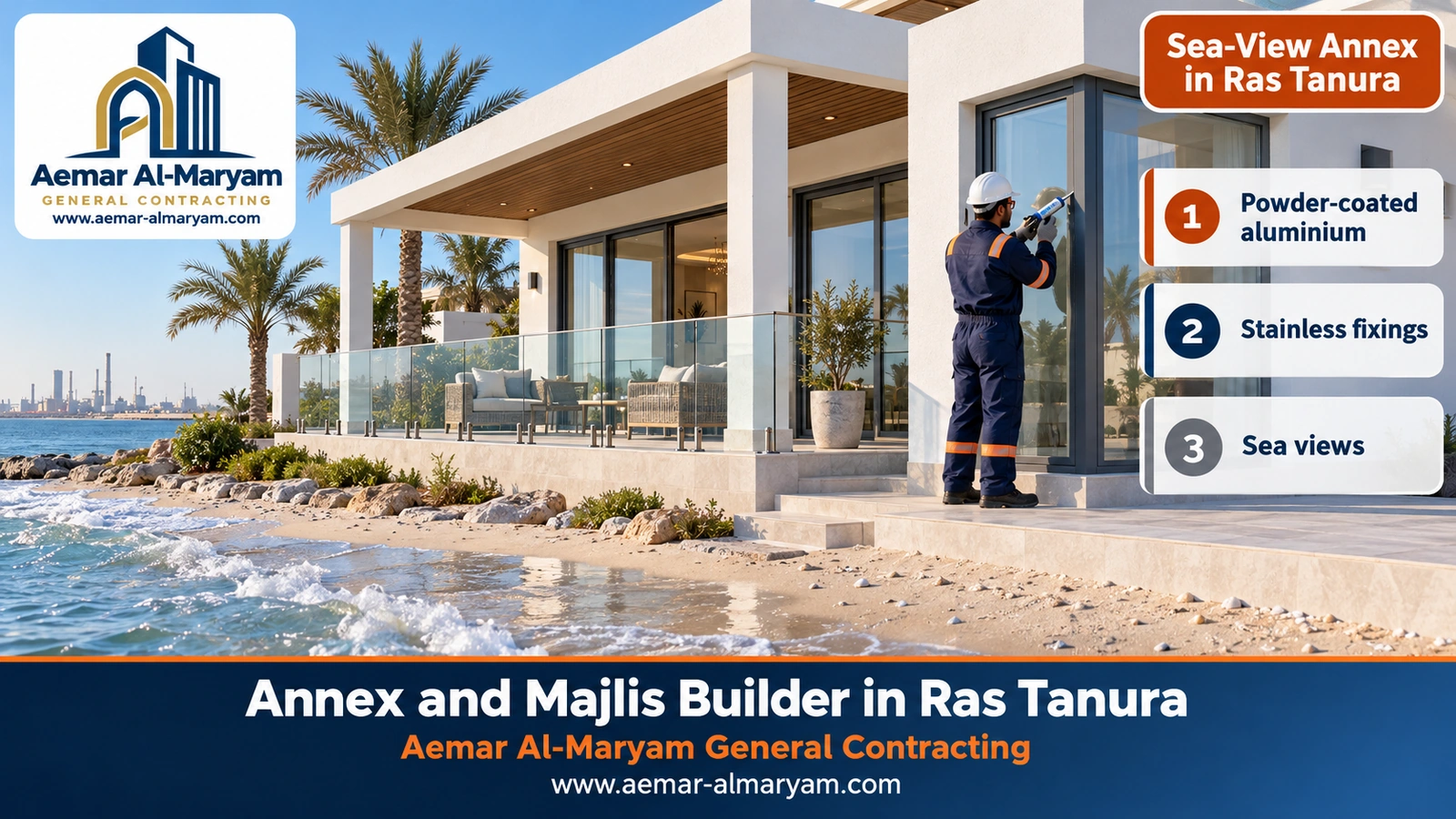

Powder-Coated Aluminium and Stainless Fixings for Sea-Facing Annexes

Windows, sliding doors and balustrades take more sea spray than anything else on an annex, and they are the first to fail when chosen on price alone. For Ras Tanura annexes we use powder-coated aluminium sections, which carry a baked-on colour layer that bonds to the metal and stands up to salt and sun better than untreated sections, and we fit them with stainless screws and fixings so the fastener is never the weak point where rust starts.

• ●No mixing of metals: aluminium touching plain steel or copper in damp salty air corrodes faster, so we separate them with isolating pads.
• ●Drain holes in the frames: so water collecting in a sliding-door track runs out instead of sitting there with salt.
• ●Exterior-grade silicone: a continuous bead around every frame on a cleaned surface, checked and renewed during maintenance.
• ●Double glazing: cuts heat and noise and reduces condensation on the glass on humid nights.
• ●Terrace balustrade: safety glass on stainless fittings anchored into concrete, never into hollow block.

The same goes for smaller items: outside door handles, AC brackets, exterior light fittings and vent covers. Our rule near the sea is simple: every metal part outdoors is either stainless or galvanised and coated, or it does not get fitted.

Majlis Builder in Ras Tanura: Courtyard or Seafront Majlis

Building a majlis in Ras Tanura starts with orientation: where does the sea wind come from, where does the midday sun fall, and which view do you want to sit facing? A courtyard majlis needs its own entrance and a bathroom near the door. A sea-facing majlis also needs a covered terrace that shades the glazed front and keeps guests out of the spray on blustery days.

We usually build the majlis in block and concrete with all the protection above, insulate its roof against heat and water before interior work, and then choose the face: a damp-resistant exterior paint, stone cladding, or a glazed front in powder-coated frames. Inside go a gypsum ceiling with hidden lighting and floors to suit the use; see finishing and gypsum board.

Outdoor majlis in the courtyard in Ras Tanura: the comfort details

A courtyard majlis in Ras Tanura is used more in the evening than in the day, so we focus on what makes it pleasant then: facing windows that let the sea breeze through when the weather softens, ceiling fans to help the AC, sealed exterior lights at the entrance and path, and a walkway surface that does not get slippery in the damp. We lift the majlis a step or two above the courtyard, keep the bathroom door out of the seated guests’ line of sight, and allow space for shoes and washbasins at the entrance.

Glass annex in Ras Tanura

A glass annex in Ras Tanura offers the best possible sea view, but it depends on detail more than any other system: powder-coated aluminium frames, double safety glazing, stainless fixings, drainage in every track, and an insulated roof or canopy to soften the midday heat. Budget from SAR 1,620 for every square metre it covers; we often suggest a practical alternative: a block majlis with one glazed wall towards the sea, which gives you the view with less heat and lighter maintenance.

Rooftop Room in Ras Tanura: Check the Existing Roof First

A rooftop room in Ras Tanura needs two checks, not one. First, an engineer decides whether the slab and columns are strong enough for a room and how its loads will reach the existing columns. Then the condition of the roof itself is examined, because an older roof near the sea can hide rusting steel, signalled by brown stains or flaking on the underside of the slab. Adding a room on such a roof before it is treated is a structural mistake, not a cosmetic one.

If the roof is sound and the engineer agrees, we usually prefer a light galvanised-frame room, open the roof insulation just under its footprint, and rebuild the waterproof layer up and around its base with extra fabric at the corners. If the roof needs treatment first, we start there or refer it to renovation and come back to build.

A gypsum board rooftop room by the sea: the straight answer

Plasterboard is an interior finishing material that needs to stay dry, and Ras Tanura humidity plus roof heat will ruin it quickly if it is used as an outside wall. The light room people mean when they ask for a “gypsum board room” is a galvanised frame faced externally with fibre-cement sheets, filled with insulation, and finished on the inside in plasterboard. That is what we build, with extra attention to fixings and joint sealing.

Which Annex Systems Stand Up to Sea Air in Ras Tanura?

Annex systems in Ras Tanura differ more in how they handle salt and humidity than in price. Well-protected block and concrete is the least sensitive; light metal systems need more care with fixings and coatings; glass depends on the quality of its frames. A short comparison:

If you are considering a cement board annex in Ras Tanura for a rooftop or service room, the system works well provided the frame is galvanised, the fixings resist corrosion, the joints are sealed and the exterior coat is renewed on time. For the main sea-facing majlis, we recommend block.

Annex Permit in Ras Tanura

An annex permit in Ras Tanura normally runs through the Balady platform: an engineering office draws the annex, certifies that the existing structure stays safe with it, then submits it under “Adding and Modifying Building Components”. That service asks for a live building licence and fees from the platform’s calculator, and Balady lists a turnaround of one to ten days. An annex already standing without a matching licence is regularised under “Rectify Existing Building Status”. If the house is employer-provided housing, that employer’s consent comes before all of this.

Annex Prices in Ras Tanura (Starting From)

Annex prices in Ras Tanura open at SAR 830 per m² for a block-and-concrete structure; an annex handed over with standard finishing reaches SAR 1,200 per m², and premium finishing SAR 1,670. Marine detailing is added according to what the engineer specifies and the actual quantities, so we list those lines as “at inspection” rather than guessing a number.

Figures are provisional until we visit and agree, and they move with the system, size, height, finish, how close the house is to the seafront and access. For items priced on site, photograph the location and send the sizes to 0547879578 for a first estimate; other rates are on the price list.

What Does a 4×5 Room Cost in Ras Tanura? Plus 4×4 and 5×6 Examples

A 4×5 room, the size most often requested for a guest room with a small bathroom, costs in the region of SAR 24,000 in Ras Tanura when built and finished in block, SAR 16,600 for the bare block structure, or about SAR 12,490 as a light insulated shell with roof. These are illustrative examples built from our opening rates and do not include the marine-protection items added at inspection.

• ●4×4 room (16 m²): close to SAR 19,200 built and finished in block, around SAR 13,280 as a block structure, or around SAR 10,880 light (48 m² of wall at 185 plus 16 m² of roof at 125).
• ●4×5 room (20 m²): close to SAR 24,000 finished, SAR 16,600 structure, SAR 12,490 light (54 m² of wall plus 20 m² of roof).
• ●5×6 room (30 m²): around SAR 36,000 standard finish, SAR 24,900 structure, SAR 15,960 light (66 m² of wall plus 30 m² of roof).
• ●5×7 majlis (35 m²): close to SAR 42,000 finished to standard and around SAR 58,450 premium, before any glazed front or balustrade.

For the light system, wall area is the room perimeter multiplied by a three-metre height, and the figure buys the frame, cladding, insulation and roof; doors, windows, wiring, floor and paint are chosen after that. Because a seaside annex gains so much from good frames, we advise against saving money on windows and fixings.

How Long Does an Annex Take in Ras Tanura?

Building an annex in Ras Tanura takes roughly three to eight weeks for a medium block annex or majlis, and days for a light frame plus a few weeks to handover. We never shorten the curing period of the concrete or rush paint onto render that has not dried, because haste near the sea means surface cracks that open a path for salt. Permit time is added depending on how complete the documents are.

Power and Air Conditioning in a Seaside Annex

Power and air conditioning in a Ras Tanura annex need protecting from salt just as the steel does. We place outdoor AC units out of direct spray wherever possible, on galvanised and coated brackets fixed with stainless bolts, lifted slightly off the roof so they never stand in wash water. Outdoor lights and sockets go in sealed weatherproof boxes, and exterior cable runs go in conduit with closed ends.

Inside, the annex takes its own feed and breaker from the house board, the bathroom and kitchen circuits are protected by a residual-current device, and we confirm the meter can handle the extra AC before it is installed. We also advise rinsing outdoor unit coils with fresh water during routine AC servicing, since salt build-up cuts their efficiency and shortens their life. Service details: electrical works and plumbing works.

Common Mistakes in Coastal Annexes and How We Avoid Them

Inspecting existing annexes and majlis in Ras Tanura and Rahima, we find the same mistakes again and again, all cheap to prevent and expensive to repair:

• ●Bars touching the formwork: no spacers, so rust shows on the columns within a few years. We fit spacers and check them before every pour.
• ●Unprotected ground beams: damp rises into the walls and white salt appears at the bottom of the render. We coat buried concrete and lay a membrane under the slab.
• ●Cheap untreated frames: they flake, their corners swell and their screws rust. We use powder-coated aluminium and stainless fixings.
• ●A balustrade fixed into hollow block: it loosens with wind and damp. We anchor it into concrete with suitable fixings.
• ●Ordinary paint on wet render: it peels in the first humid season. We let the render dry and use a damp-resistant exterior paint.
• ●A rooftop room on a corroded roof: the most dangerous of all. We inspect and treat the roof before any addition.

Annex Contract in Ras Tanura: Write Down the Marine Specification

A contract that just says “4×5 block annex” is not enough near the sea. In a Ras Tanura annex contract we write down the concrete cover set by the engineer and the spacer type, the cement type for elements in contact with soil, the damp-proofing layers on beams, under the slab and at the wall base, the aluminium section and its coating, the type of exterior fixings, and the exterior paint. Then the usual items: the scope of each stage, payments linked to completing footings, structure, roof, services and finishing, the duration, how changes are priced, and debris removal. That way you know exactly what you paid for, and any engineer can check it.

Planned Trips from Dammam for Ras Tanura and Rahima Jobs

We work in Ras Tanura and Rahima on an organised visit schedule from Dammam: an inspection on a fixed date, then stages each carried out with all their materials, with photos of anything to be buried or covered sent to you before it is closed up. We try to combine other jobs the house needs in the same visit, such as a door opening cut between annex and house (concrete cutting in Ras Tanura) or removing an old corroded room before building (demolition contractor in Ras Tanura).

1. 1
   Inspection: we measure the site, note how close it is to the seafront, and check the existing building and its roof.
2. 2
   Specification: the engineer sets the cover, damp-proofing and cement type, and we write them into the scope.
3. 3
   Foundations: excavation, blinding, footings and ground beams, then bitumen, membrane and compacted backfill.
4. 4
   Structure: columns on spacers, slab and walls, with water-curing of the concrete.
5. 5
   Frames and insulation: roof insulation, powder-coated windows and stainless fixings.
6. 6
   Finishing and handover: render and damp-resistant paint, a water and power test, and maintenance guidance.

Looking After a Seaside Annex After Handover

Maintaining an annex in Ras Tanura is easy if you start early. Rinse aluminium frames, balustrades and handles with fresh water from time to time so salt does not build up, clear the drain holes in sliding tracks if sand blocks them, and check the silicone around the frames, renewing it at the first crack. Watch the facade: any brown line, rust spot or bulge in the render deserves a call before it spreads. And repaint the exterior before it peels, not after it has left the render open to damp.

Getting a Ras Tanura Annex Priced: What to Send Us

A WhatsApp message to 0547879578 with these points gets you a first price band and a visit date:

• ✓Your area, Ras Tanura or Rahima, and whether the house is on the seafront or further inland.
• ✓Photos of the courtyard or roof, and of the house columns and the underside of the roof if possible.
• ✓Rough sizes and the use: majlis, guest room, service room or rooftop room.
• ✓Whether you want a glazed front or a terrace facing the sea.
• ✓Your building licence or plan if you have it, or a note from the employer when the house is company housing.

You can also use the quote request form. Our main annexes and majlis page covers the service as a whole, and full extra floors or new buildings fall under building construction.

Why Aemar Al-Maryam for Annexes in Ras Tanura?

Photos of completed jobs are in our projects, and the complete explanation of every annex type is in our Dammam annex and majlis guide.

Our Coverage in Ras Tanura and Rahima

We serve houses and villas in Ras Tanura and Rahima, near the seafront or away from it, with the other Eastern Province towns handled on the same coastal principles where they apply. More on the city: Ras Tanura area page.
