Gypsum Board Installation in Al-Ahsa – Majlis Coffers, Lit Arch Niches & Column Boxing

Gypsum board installation in Al-Ahsa is what you need when you want a majlis with a stepped ceiling and light washing out from its edges, a reception wall lined with lit arched niches, or a hall where a bare concrete column and a downstand beam disappear inside crisp, square-edged boxing. Our team at Aemar Al-Maryam General Contracting makes all of this from paper-faced gypsum boards screwed to a galvanised steel frame, then tape and fill the joints until the surface reads as a single plane ready for paint. Prices begin at SAR 46/m² for a flat ceiling with supply and fixing included, SAR 110/m² for multi-level work and SAR 138/m² once hidden-lighting coves are built in, all of them opening figures that are firmed up after the site visit and agreement. Call or WhatsApp 0547879578.

We are based in Dammam, and the road to Al-Ahsa is roughly 160 km, so we plan work there in two stages. First you send photos and sizes of the majlis or hall, and we come back with a design idea and an indicative price. Then we visit once to inspect and laser-measure, and after you approve, the crew arrives with the boards, channels and compound loaded in one trip. The more of the house you group into that trip (the majlis ceiling, the bedroom pelmets, the hall partition), the smaller the share of travel cost each square metre carries. We price that travel element at the inspection, scaled to how much work there is.

Gypsum board in Al-Ahsa: why it has become the base of majlis and hall décor

Gypsum board comes from the factory as a rigid gypsum slab wrapped in strong paper on both sides. It goes up dry, screwed onto metal channels, so there is no mixing, no casting and no long wait for drying as there is with traditional plaster. That makes it a good fit for families who remain at home during the update, and for majlis rooms that need to be ready before a particular occasion. In Al-Ahsa homes it usually does three jobs at once: it hides air-conditioning ducts and cables, it creates the levels that give a majlis its sense of occasion, and it carries the soft lighting that shows the ceiling off in the evening.

It is used for suspended ceilings, for partitions that divide large halls, for lining walls that are out of true, and for décor such as niches, arches, TV walls and false columns. In the end, though, it is a lining for dry indoor spaces. Keep it off external facades and off walls that are constantly wet, and never ask it to hold heavy loads with nothing solid behind it. Those limits shape every recommendation on this page.

Gypsum board, plasterboard or drywall in Al-Ahsa: the name does not change the board

Whether someone types plasterboard, drywall, sheetrock or gypsum board, or in Arabic for «جبسون بورد», «جبسن بورد» or «جيبسوم بورد». All of them describe the same product. What really separates one board from another is its type and its thickness: standard, moisture-resistant or fire-resistant, with 12.5 mm the usual thickness for ceilings and walls and 9.5 mm used for curves. When you compare prices, compare type and thickness rather than names.

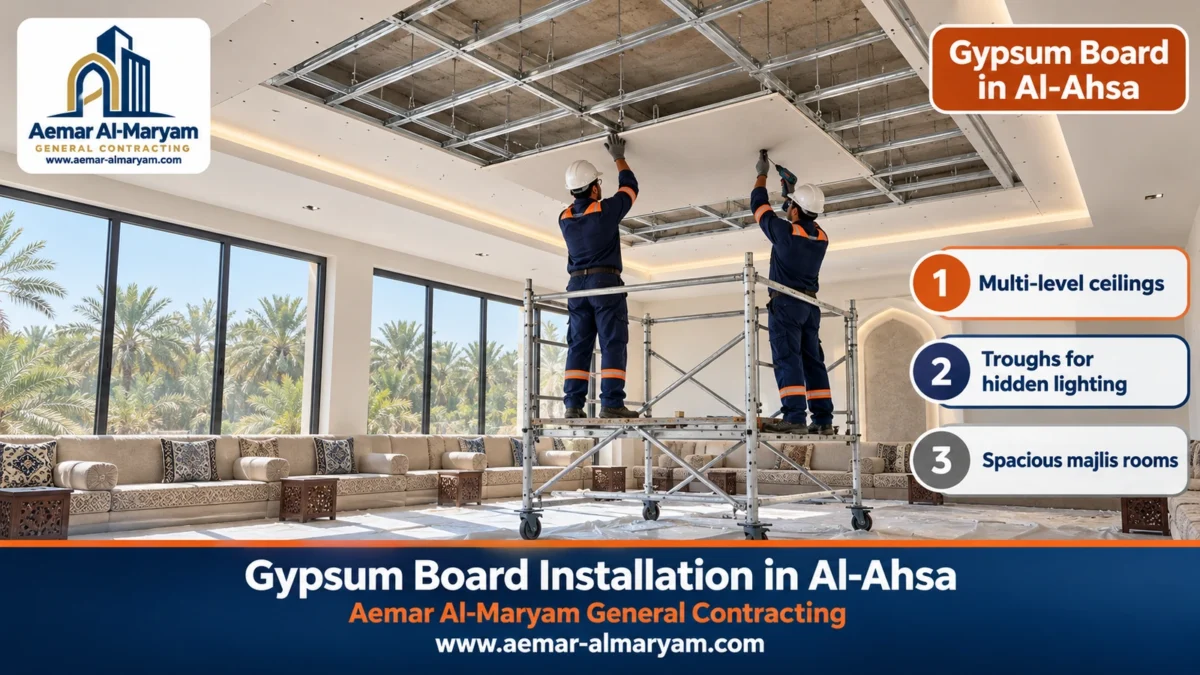

Gypsum board installation in Al-Ahsa: multi-level majlis ceilings

The multi-level majlis ceiling is the job we are asked about most in Al-Ahsa, and the short answer to “what is it?” is this: a lower outer frame runs around the room, one or more central coffers rise inside it, and between the two levels a recessed trough hides the LED strips. This type starts from SAR 110 per square metre, or SAR 138 when it is built with hidden-lighting coves, because it involves more framing and many edges and corners that must stay perfectly straight over tens of metres. A long majlis exposes the slightest drift in a line, so we set every edge with a laser level before it is closed.

The recessed light cove: how it is built

The cove is an inverted L-shaped trough along the edge of the lower level. Its front lip hides the LED strip from people sitting in the room, and its depth lets the light spill onto the upper ceiling as a soft, graded glow. If the lip is too short, guests see the individual LED dots. If the trough is too narrow, you get a hard stripe of light instead of a gradient. We leave enough room inside to change the strip later without breaking anything, and we agree with the electrician beforehand where the driver will sit and where its access hatch goes. Strips and drivers are priced under electrical works.

A surface that light grazes from the side needs a higher standard of joint finishing than usual. The Gypsum Association guidance sets out six finish levels and recommends Level 5, a thin skim of compound across the whole face, for critical lighting and for glossy or dark paints, since that skim makes it far less likely that taped joints will ghost through the paint. That is exactly what we do on the upper level of a majlis ceiling.

The central coffer over the seating and the chandelier

The central coffer defines the heart of the majlis. We usually line it up with the Arabic floor seating or the main rug rather than only with the walls, so the ceiling feels in step with the room below. If there is a chandelier, it never hangs from the board alone. Before the ceiling is closed we either fix a separate hanging point into the concrete slab or strengthen the frame at that spot, because metal ceiling systems have published load limits. One well-known system, for example, allows around 30 kg per square metre for the ceiling as a whole, not for a single point.

How many levels does your majlis need, and how far will the ceiling drop?

Our rule is that the room height decides the number of levels before taste does. A tall majlis can take three levels without feeling cramped, a medium one looks best with two well-judged levels, and a low room suits a flat ceiling with a single line of light around the edge. How far the ceiling drops depends on what sits above it. If it only hides cables, the drop is small. If an AC duct runs above it, you need the duct depth plus a margin for the frame. We measure this at inspection and show you the section before work starts.

Cornices and curtain pelmets for majlis windows

Majlis windows in Al-Ahsa are often wide, looking out over the courtyard or the palms, and heavy curtains need a gypsum pelmet (a curtain box) that hides the track and gives the top edge a clean line. Pelmets start from SAR 37 per linear metre. We decide the depth by the number of curtain layers and whether the track is manual or motorised, and we fix a reinforced channel or a timber batten behind the track position, because the board alone cannot take the daily pull of a curtain.

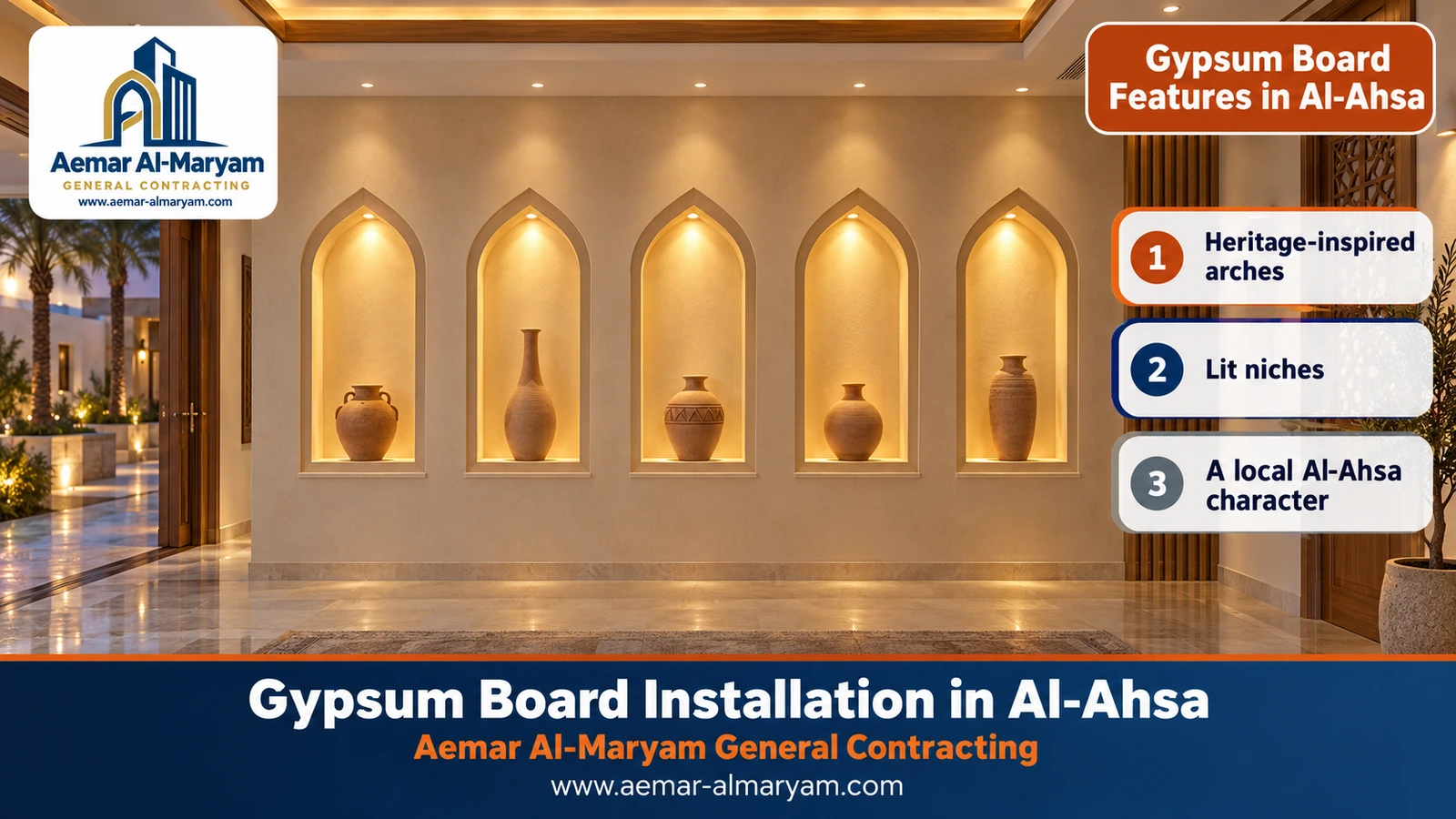

Gypsum board wall décor in Al-Ahsa: lit arched niches inspired by local heritage

Pointed-arch niches are among the most striking things you can make in gypsum board for reception corridors and majlis walls in Al-Ahsa: a row of recessed openings in the wall, each with an arched head, warm hidden lighting at the top and a clay pot or an incense burner at the base. The idea draws on the arches that mark the region’s heritage buildings; Ibrahim Palace in Hofuf, for example, shows arches, domes and decoration that blend Islamic architecture with the local Al-Ahsa character. What we build is modern interior décor that borrows the shape and nothing more. It is not restoration of heritage buildings, which falls to the specialist authorities.

The build differs from a flat wall. We put up a stud frame in front of the existing wall to the depth the niches need, form each arch from a flexible track that is snipped and bent to the drawn curve, and then line it with 9.5 mm board, or two thinner layers, so it bends without cracking the paper face. The curved edge gets a flexible metal or plastic bead, because the edge of an arch is what gets knocked most. At the top of each niche we leave a small channel for an LED strip fed from behind the wall.

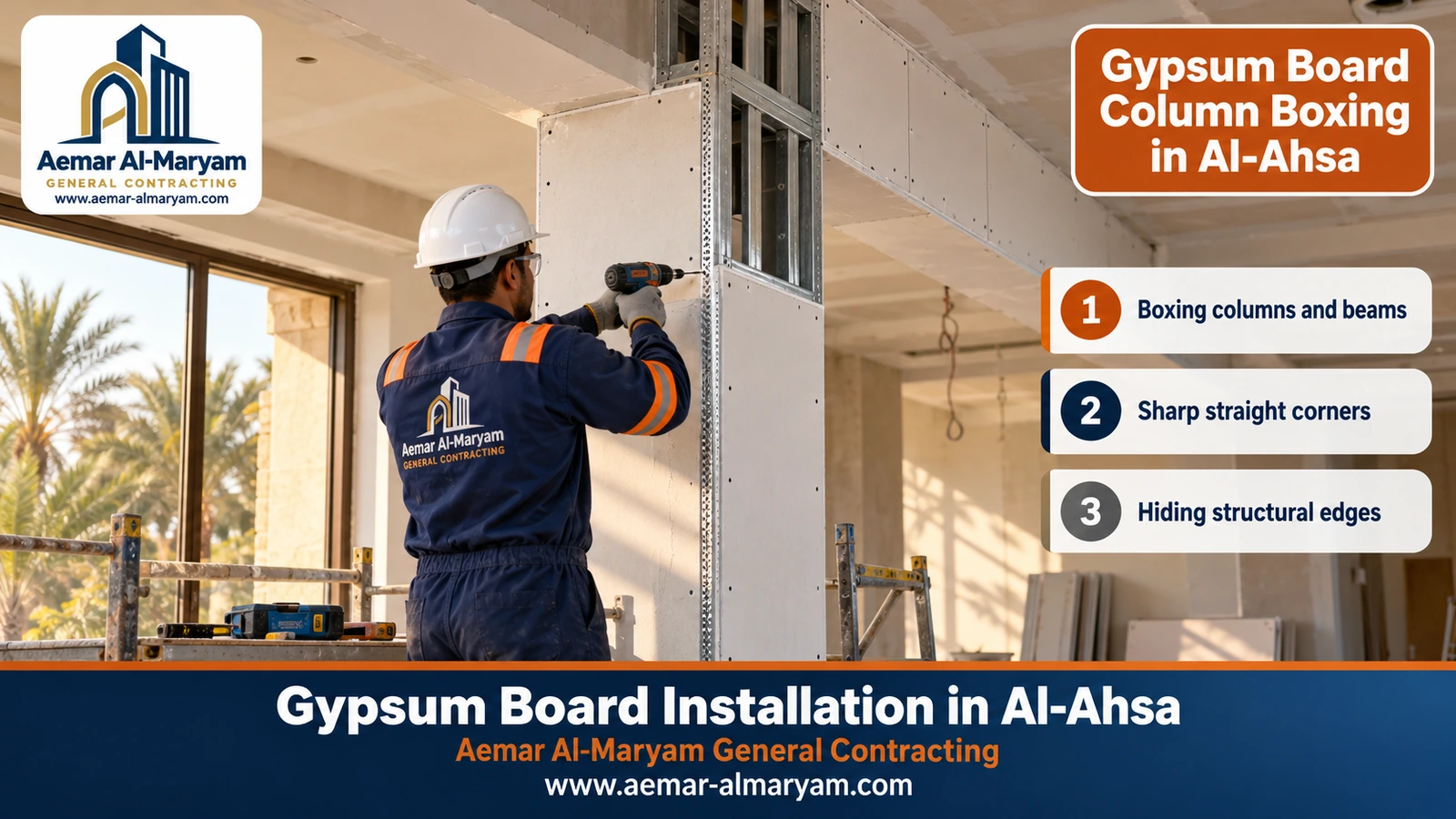

Boxing columns and beams in gypsum board in Al-Ahsa

Boxing a column or a beam in gypsum board means building a light metal frame around it and lining that frame with boards, so a rough concrete column or a beam dropping below the ceiling becomes a clean, straight-edged element that sits naturally in the design. It comes up a lot in renovated halls: an old wall is taken out and the column is left standing in the middle of the space, or a downstand beam cuts across a majlis ceiling and breaks the line of the levels. The usual answer is to box the column square or round, or to make it part of the design by adding a shelf or a lit frame around it.

• ●Sharp edges: every external corner gets a metal corner bead before compound, so it stays straight and does not chip with daily knocks.
• ●Beams inside the levels: rather than boxing a beam on its own, we extend the lower ceiling level to take it in, so it disappears into the design.
• ●Services: a boxed column is a handy route for cables or a light switch, provided this is decided before it is closed.
• ●A gap from the concrete: we leave a small space between the boxing and the column so building movement is not passed straight into the boards.

Gypsum board fixer in Al-Ahsa: signs of careful work you can see for yourself

You can tell a careful gypsum board fixer in Al-Ahsa on site, before any photos are taken: a laser level setting the frame before the first board goes up, channels at regular spacing, screw heads set just below the paper without tearing it, and tape in every joint and internal corner. Metal ceiling systems have spacings set by their makers. One well-known system, for instance, puts main channels at 1,200 mm centres and furring channels at 450 or 400 mm, with screws at a maximum of 230 mm in the field of each board and tighter, at 150 mm, along its edges. We follow the approved system for the materials we supply and never widen the spacing to save a channel or two.

• ✓The frame hangs from the concrete slab on hangers, not just from the walls.
• ✓Joints are staggered from board to board, never stacking four corners together.
• ✓External corners are protected with metal beads before compound.
• ✓The joint finish level is agreed in advance: Level 4 for matt paint, Level 5 under grazing light.
• ✓Daily clean-up, with floors and fixed furniture covered.

Gypsum board company in Al-Ahsa or a day-rate fixer?

The difference between hiring a gypsum board company in Al-Ahsa and agreeing a day rate with a fixer is who carries the design, the materials, the coordination with the electrician and the AC technician, and the correction of any defects. A fixer working alone may be enough for a small, clear job such as one bedroom ceiling. A majlis with three levels, arches and boxed columns needs a written agreement that names the board type and thickness, the finish level and whether painting is included.

Some owners buy boards themselves from a shop and then look for a fixer. The catch is that the shop price for a board leaves out the channels, hangers, screws, tape, compound, corner beads, waste and labour, so the owner thinks he has saved and then pays the difference item by item. That is why we offer supply and installation together, priced per finished square metre.

Gypsum board types for majlis rooms, bathrooms and kitchens in Al-Ahsa

The most common thickness is 12.5 mm; Type X fire-resistant board is about 15.9 mm (5/8 inch).

Moisture-resistant gypsum board in Al-Ahsa: bathrooms and kitchens

Green moisture-resistant board suits bathroom and kitchen ceilings and the dry walls in those rooms, as long as there is an extractor fan that works properly. It is not a waterproof board, though. Technical bulletins state that it deteriorates under repeated or prolonged exposure to water and must not be used where humidity is continuous, such as steam rooms, saunas and communal showers. The wall behind shower tiles belongs to cement board or a waterproofed block wall. Moisture-resistant board starts from SAR 74 per square metre with us.

Fire-resistant gypsum board in Al-Ahsa: when do you need it?

Type X fire-resistant board is reinforced with glass fibres so it holds together longer in a fire, and 15.9 mm board achieves at least one hour of resistance when it is installed within a wall or ceiling system tested in a specific way. Put simply, the hour is earned by the tested build-up as a whole, studs, layers and screws included, and a single board cannot claim it. We use it for electrical panel rooms, shop and office corridors, and commercial kitchens when Civil Defence or the engineering office requires it, starting from SAR 83 per square metre.

Gypsum board partitions in Al-Ahsa: separating the majlis from the family hall

A gypsum board partition divides a space without a heavy block wall: vertical studs between a top and a bottom track, a board on each face and rock wool in the middle. In the spacious homes of Al-Ahsa it is most often asked for to separate the men’s majlis from the family hall, to carve a study out of a large living room, or to split an upper floor into rooms. Insulated partitions start from SAR 165 per square metre.

Sound insulation here is a matter of published figures rather than a slogan. A timber-stud wall with one board on each face and no insulation scored about 33 on the STC scale in tests, rising to about 39 with insulation. A steel-stud partition with one board each side and 2 to 3 inches of mineral wool scored about 48 to 51. To get close to those numbers we run the partition up to the concrete slab rather than stopping at the gypsum ceiling, seal its edges with flexible acoustic sealant, and avoid back-to-back sockets on the two faces, because sound escapes through the smallest gap and under the door.

Gypsum board designs in Al-Ahsa, room by room

Each room has its own fit, and a common mistake is copying the majlis design into a bedroom or a small hall, where it feels heavy. Here is what we usually suggest:

Gypsum board prices in Al-Ahsa (starting from)

In Al-Ahsa a flat gypsum board ceiling begins at SAR 46/m², a figure that covers the frame, boards, screws, tape, compound and labour. We found no page in Al-Ahsa that publishes an installed price per metre, so we apply our Dammam table, and the travel element is added according to the size of the job at inspection. Treat every figure below as an estimate until we have inspected and agreed the work:

The lighting itself (strips, spotlights and drivers) and the final paint are separate items priced at inspection. The price changes with board type, design complexity, ceiling height and access.

Pricing a 4×4 room ceiling in Al-Ahsa

Four metres by four gives 16 m² of ceiling. Here is a worked illustration of three options for it, before paint and lighting:

This is for illustration only; the actual areas of levels and coves are measured on site and can differ from the room area.

How to keep the cost down in Al-Ahsa

• ●Group the gypsum work for the whole house into one visit instead of ordering one room at a time.
• ●Approve the design before the crew arrives, since changing levels after the frame is up costs time and materials.
• ●Have the electrical runs in place before the ceiling is closed, so boards are not opened later.
• ●Choose a number of levels that suits the majlis height; more levels do not mean more beauty.

Gypsum ceiling repair after leaks in Al-Ahsa

When a yellow stain or a bulge appears on a gypsum ceiling, the first step is not paint but stopping the water: an AC drain that has clogged, an upstairs bathroom, or water getting through the roof. After that the area needs to dry quickly. The US Environmental Protection Agency’s mould guidance gives a 24 to 48 hour window: get damp materials dry inside it and mould usually never takes hold. Its advice on drywall is that a board can stay and be dried where it is only when it has not swollen and its seams have held; a board that fails either test comes out.

1. 1
   We find the source: together with the plumber, the AC technician or the renovation and waterproofing team, because there is no point repairing a ceiling that will get wet again.
2. 2
   We test the board: if it is firm and dry we seal the stain with a stain-blocking primer and repaint; if it is soft or swollen, we cut it out.
3. 3
   We cut a clean rectangle: back to the nearest sound channels, and check the frame and hangers above.
4. 4
   We fit a replacement: trimmed to match the opening, then taped, filled and sanded flush.
5. 5
   We repaint the whole ceiling: not just the patch, so no colour difference shows where the repair was made.

Board or traditional jiss plaster for an Al-Ahsa majlis?

Traditional gypsum plaster (jiss) has a long history in the decoration of the region’s older houses. It is mixed on site and then cast or shaped by hand. Gypsum board is a dry panel fixed to a frame. Each has its place:

Many majlis rooms use both: a multi-level gypsum board ceiling with a cast plaster cornice or ceiling rose at the centre.

A gypsum board room in Al-Ahsa: does it work in a rest house or on a roof?

The honest answer: you do not build an outdoor room out of gypsum board. It is an interior lining that has to stay dry, and manufacturers ask that it is not exposed to sustained temperatures above about 52°C, a level that an outside wall facing the summer sun can reach. A sound lightweight room in a rest house or on a roof is framed in steel, skinned on the outside with cement board over insulation, and finished with gypsum board only on the inside for the ceiling and walls. The details are in cement board installation in Al-Ahsa and building annexes and majlis rooms in Al-Ahsa.

The same goes for the “exterior gypsum board” people ask about. A special gypsum sheathing board does exist for facades, but it is a backing layer that gets covered by another cladding, not a finished surface you paint and leave to the sun and rain.

Gypsum board installation steps in Al-Ahsa, from photo to handover

1. 1
   Photos and sizes: you send them on WhatsApp with a picture of a design you like, and we reply with an idea and an indicative price.
2. 2
   Inspection: laser measuring, a check of the concrete ceiling and columns, and the routes for AC and electrics.
3. 3
   Design approval: a simple drawing of levels, coves and arches, with the items and prices in writing.
4. 4
   Preparing the room: covering floors and fixed furniture, and sealing the doorway with sheeting against dust.
5. 5
   The frame: perimeter angles, hangers into the concrete, main and furring channels, and reinforcement for chandeliers and curtains.
6. 6
   Services: the electrician runs cables and light points before the ceiling is closed.
7. 7
   Boards: fixed with staggered joints, with spotlight and AC openings cut cleanly.
8. 8
   Joints: tape and compound in coats, sanding, and a full skim where light grazes the surface.
9. 9
   Paint and handover: primer then paint through our painting service, and a torch check with you before you accept the work.

Common gypsum board mistakes in Al-Ahsa

Hofuf and Mubarraz: where we install gypsum board in Al-Ahsa

Hofuf and Mubarraz form a single urban area, and we work across both and the oasis towns around them. Our crews have worked in districts such as Al-Mazru’iyah, Mahasin Aramco, Al-Kut, Al-Rashidiyah, Al-Shu’bah, Al-Fadiliyah, Al-Khalidiyah, Al-Salihiyah, Al-Rawdah, Al-Muhammadiyah and Al-Na’athil. Our area page: our services in Al-Ahsa.

Gypsum board installation in Hofuf

Hofuf villa owners mostly ask us for large men’s majlis ceilings in villas, with a recessed light cove in the outer frame, a raised central coffer over the seating and wide windows looking onto the palms. On the same visit we arrange the curtain pelmets and the moisture-resistant bathroom ceilings, so the house is finished in one go.

Gypsum board installation in Mubarraz

In Mubarraz the requests that keep coming back are reception corridors and their walls: lit arched niches, a TV wall in the hall, and a partition separating the majlis from the family hall. In homes under renovation we also box the columns and beams left exposed after old walls are removed.

Ordering gypsum board installation in Al-Ahsa: what to send

The quickest route is to send the following on WhatsApp 0547879578. We reply with an idea and an indicative price and book the inspection:

• ✓A wide photo of the ceiling, one of each wall, and a close-up of any exposed column or beam.
• ✓The room length, width and height from floor to concrete ceiling.
• ✓Where the AC units and their ducts are, if any.
• ✓A picture of a design you like, or a short description: levels, arches, boxing, partition.
• ✓Your district in Hofuf or Mubarraz and the timing that suits you.

Why Al-Ahsa homeowners work with us

• ●Published prices: a clear “starting from” table for every item, and where there is no figure we say it is priced at inspection.
• ●Designs that fit the majlis: levels matched to the height and arches inspired by the place, not copied templates.
• ●Itemised work: board type, thickness and finish level written down before we start.
• ●One well-prepared visit: materials arrive with the crew, which means less travel and lower cost.
• ●Full coordination: electrics, paint and repairs from the same contractor when needed; see our earlier work on the projects page.
