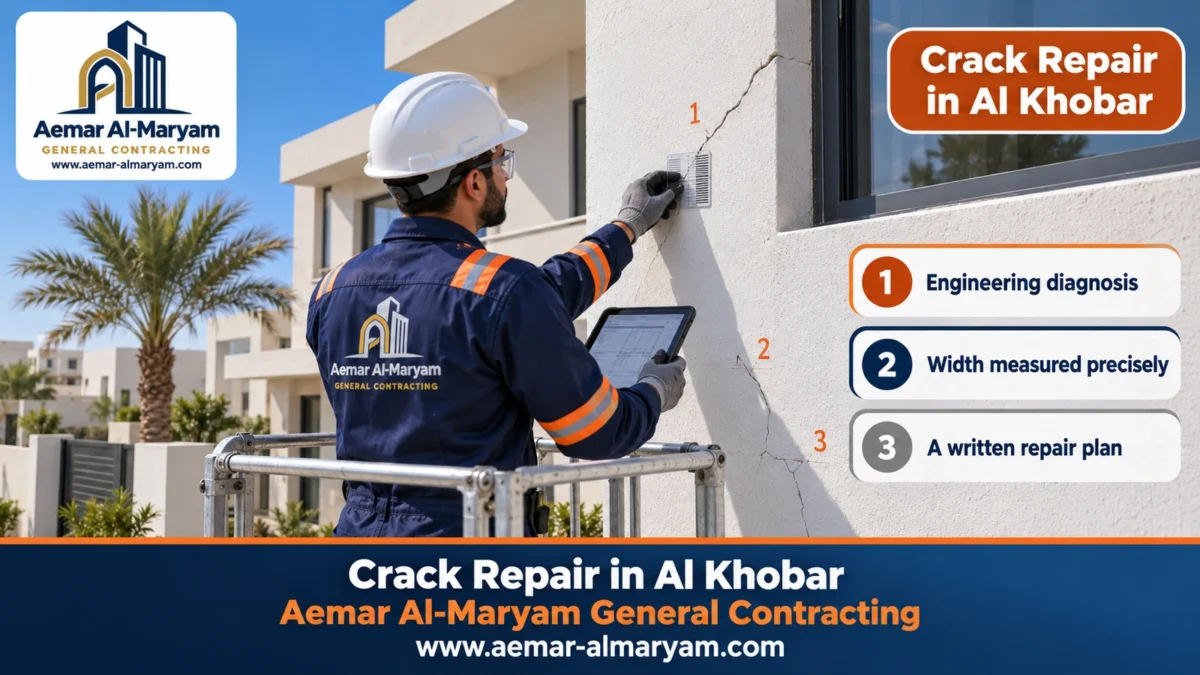

Crack Repair in Al Khobar – Balcony, Column, Facade & Villa Wall Cracks

Crack repair in Al Khobar begins with one question: is the crack only in the paint and plaster, is it in the concrete itself, or is it the first sign of reinforcing steel rusting under its cover because of sea air and salt? Once we know, we deal with the cause and then repair the crack with the material that suits it. Our team at Aemar Al-Maryam General Contracting repairs cracks in columns, balconies, facades, ceilings, apartment walls and villa boundary walls in every district of Al Khobar. Resin injection of concrete cracks is from SAR 32 a linear metre, room crack treatment before painting from SAR 140, and a column cracked by rebar corrosion from SAR 830. All figures are estimates until inspection and agreement. Phone or WhatsApp 0547879578.

Sea air leaves its mark on Khobar buildings: brown streaks under balconies, thin lines along car-park columns, render that bulges and drops, and a vertical crack on a villa wall at every pier. Some of it is cosmetic; some is steel rusting inside the concrete. Below we explain how to tell them apart, the right repair for each, when an engineer is needed, starting prices, and what to message us for an estimate before any visit.

Crack repair in Al Khobar: why cracks in a seaside city are different

Crack repair in Al Khobar is not the same job as in an inland town, because humid, salt-laden air reaches the concrete from outside every day. That speeds up corrosion of the reinforcement in exposed elements and weakens external render and paint. So in Khobar we never stop at “how wide is the crack?”. We also ask whether it follows a bar, whether there is a rust stain or a bulge beside it, and whether the element faces the open air directly, as a balcony, an outside column or a boundary wall does.

Add summer heat and a mix of blocks, walled villas and shops, and each building type shows its own pattern:

Our crack and fissure repair service page sums the service up, and our Al Khobar page shows the other trades we bring to the city. If the cracks are part of a building that needs balconies, facade and roof put right together, read our guide to renovation contractor services in Al Khobar, which covers full renovation.

What causes cracks in Al Khobar buildings?

Cracks in Al Khobar buildings come from a mix of causes found in any city and causes that become sharper near the coast. Knowing the cause decides whether repairing the crack is enough or whether something else has to be stopped first. That is why every inspection starts with questions about the building’s age and where the crack sits relative to bathrooms, tanks and balconies:

Salt, humidity and rusting steel: how a crack starts from the inside

Reinforcing steel is protected inside concrete for as long as the cover around it stays sound. When chlorides from the coastal air or from water reach the bar, or the concrete loses its protective chemistry over the years, the steel begins to rust. The trouble is that rust does not stay the size of the steel it came from. Rust needs at least 2.5 times the room the original steel occupied, so it pushes the concrete outwards from within until the cover splits.

So corrosion cracks appear over the bar nearest the surface (column corners, balcony edges, ceiling soffits), and the outer layer later separates and falls. Research on the state of concrete buildings in the Kingdom’s Eastern Province have found reinforcement corrosion to be the leading cause of deterioration in concrete buildings there, and that the damage can appear relatively early in a building’s life. The practical lesson: a thin crack along a balcony edge in Khobar should never be treated as a paint crack until the steel underneath has been checked.

Column, beam and balcony cracks in Al Khobar

Column, beam and balcony cracks in Al Khobar are the defects that deserve the most attention in the city’s older apartment blocks, because they are usually corrosion cracks that keep growing. We treat them as load-bearing elements: no injection and no plaster until we know what kind of crack it is, and if it is in a column or a beam we ask a structural engineer to set the scope of the repair.

Balcony cracks in Al Khobar

Balcony cracks in Al Khobar usually start at the front edge and on the underside of the slab, because a balcony projects from the building into humid air on three sides, and water collects on its floor if the fall or the drainage is wrong. The usual sequence is a thin line along the edge, then rust stains beneath it, then pieces of concrete dropping onto the floor below or onto the entrance.

A proper balcony repair does three things: stops water from above (fall, outlet, waterproofing), rebuilds the damaged concrete around cleaned and protected steel, and finishes the edge with moisture-resistant paint. Filler pushed in from underneath only hides the crack for a few months.

Cracks in car-park and ground-floor columns

Cracks in car-park and ground-floor columns in Khobar apartment blocks tend to appear at the corners and near the base of the column, where rising damp, car-washing water and coastal air all meet. These columns carry the whole building, so we never rely on a quick look. The work runs in this order:

1. 1
   Survey and assessment
   We identify the affected columns, photograph them, measure the cracks and sound the concrete around them, then pass our notes to the structural engineer.
2. 2
   Temporary propping if needed
   If the engineer judges that the column has lost a significant part of its capacity, it is propped before any concrete is removed.
3. 3
   Exposing the steel
   We break out the deteriorated concrete until sound concrete is reached, leaving a gap of about 19 mm behind each bar so the new mortar can wrap around it.
4. 4
   Cleaning and protecting the bars
   Rust is removed down to bright metal then given a rust-inhibiting coat; the engineer adds steel where the bar section has been lost.
5. 5
   Rebuilding the section
   A bonding coat, then non-shrink repair mortar in layers, with the surface cured so it does not dry out too fast in the heat.
6. 6
   Final protection
   Render or a protective coating suitable for outdoor exposure, and water kept away from the column base.

For a column split by corroding bars, the repair begins at SAR 830 each. The figure rises with the length of the damaged zone, the condition of the steel and any strengthening the engineer specifies.

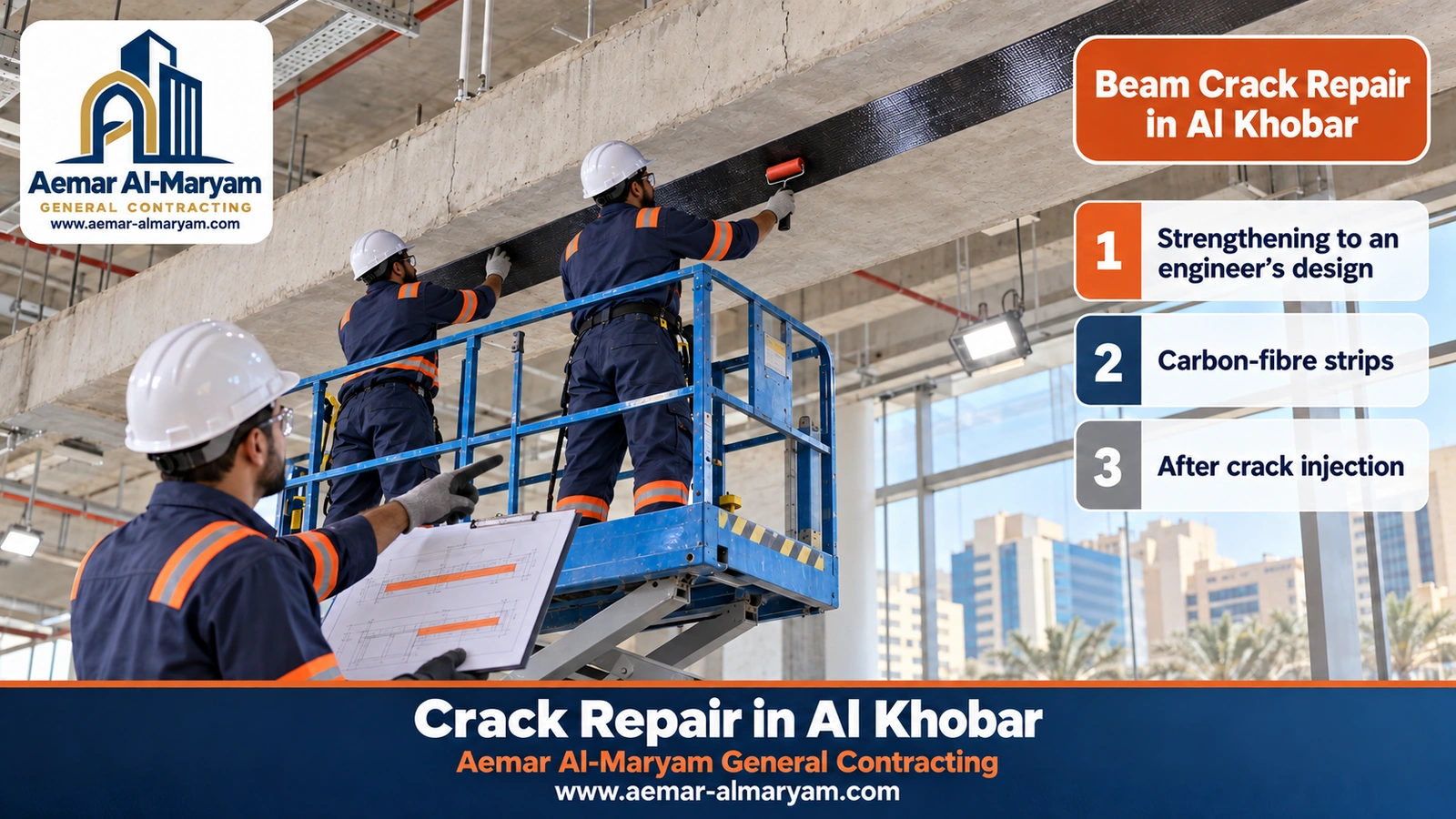

Carbon fibre beam strengthening in Al Khobar

Carbon fibre beam strengthening in Al Khobar is a solution an engineer turns to when a beam or slab needs extra capacity, for example when a shop or office changes use and the loads go up, or when fine transverse cracks show on a beam soffit. Strips of carbon fibre are bonded to the prepared concrete surface with a dedicated epoxy adhesive and then work alongside the existing steel in carrying tension. We do not choose this solution ourselves. The number of strips, where they go and their sizes all come from the structural engineer’s design, and our role is to install them precisely to the drawing.

It is priced at inspection after the engineer’s design, and any dormant beam cracks are epoxy-injected before the strips go on.

Wall crack repair in Al Khobar

Wall crack repair in Al Khobar starts with how deep the crack goes. Is it in the plaster and paint, has it reached the blockwork or concrete, or is it part of movement in the building? A surface crack is a finishing job, a deeper one needs opening and filling or injection, and one linked to movement needs its cause treated before anything else. In Khobar flats and villas two spots account for most of what we see: the corners of openings, and the line where blockwork meets the columns.

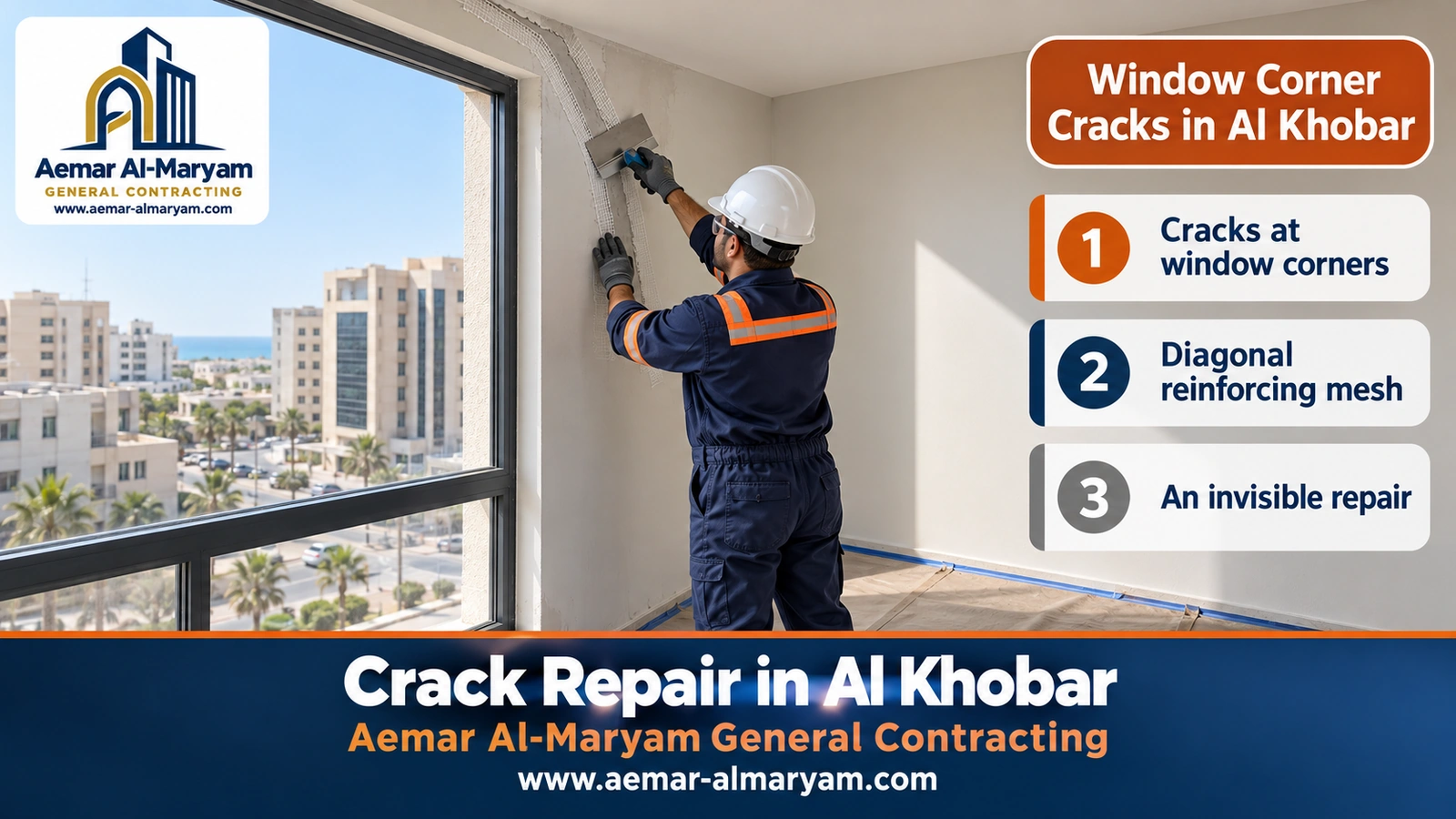

Window and door corner cracks in Al Khobar

Window and door corner cracks in Al Khobar normally run diagonally out of the top corner of the opening, because a corner is where stress concentrates when plaster shrinks or the wall expands. Most of them are shrinkage or thermal cracks that appear some time after finishing and then settle down. The same crack becomes a concern, though, if it is wider at one end and tapers at the other, if a door or window starts sticking at the same time, or if the pattern repeats in several rooms on the same side of the building. Those are signs of settlement that call for monitoring and an engineer.

For a stable window-corner crack we open it into a narrow V, fill it with flexible filler or repair mortar, and bed a diagonal fibre-mesh strip over it well past both sides; where it has returned before, we add a second strip the other way, then level and paint to the nearest corner.

Plaster cracks and block-to-column cracks in Al Khobar

Plaster cracks in Al Khobar are mostly hairline or map-pattern lines caused by the mortar shrinking as it dries, or by air conditioning switching on and off and changing the wall temperature every day. Block-to-column cracks, by contrast, are straight vertical or horizontal lines that trace the concrete frame hidden beneath the plaster, because blockwork and concrete do not expand and contract by the same amount. These cracks do not threaten the building, but they come back in exactly the same place if they are filled with a rigid filler.

The repair that lasts on a junction line is to strip the plaster along it far enough on both sides, fix a mesh that spans both the blockwork and the concrete, re-plaster over it and paint. Fibre-mesh treatment of these lines with local re-plastering starts from SAR 20 per square metre. Where the plaster has come away over large areas, re-plastering the wall is cheaper than patching, and we would point you to our plastering contractor guide for Al Khobar and then painting contractor services in Al Khobar for the finish.

Fixing wall cracks in Al Khobar: which method for which crack?

Fixing wall cracks in Al Khobar is never a one-product job. A rigid material cracks again over a moving crack, a flexible one does not give strength back to a concrete member, and injection does nothing to stop rusting steel. Repairing wall cracks properly means choosing the method by the condition of the crack, not by what happens to be in the van. This table sums up the decisions we usually make in Khobar:

The best fix for wall cracks in Khobar’s climate

The best fix for wall cracks in Khobar’s climate is the one that deals with moisture and movement together: stop any water reaching the crack, use mesh and flexible materials on thermal movement lines, then finish exposed walls with a moisture-resistant exterior paint. For a crack that points to corrosion or settlement, the best fix is a diagnosis before it is covered, because covering it only delays finding the problem without removing it.

Types of cracks in Al Khobar: width, cause and risk

Types of cracks in Al Khobar are classified on two scales at once: width, which shows how much damage there is, and cause, which shows whether the crack is likely to come back. For width we use the classification in the UK Building Research Establishment’s BRE Digest 251, because it is simple enough for a homeowner to apply with a ruler:

Width alone can mislead. A crack under a millimetre wide along a balcony edge with a rust stain above it is more serious than a three-millimetre crack in a partition wall inside a flat. That is why a second table, by cause, sits beside the first:

Hairline cracks in Al Khobar

Hairline cracks in Al Khobar are lines narrower than a tenth of a millimetre that show in plaster, paint and on concrete surfaces after casting. Most of them come from shrinkage and have no effect on the building’s safety. In Khobar, though, we still seal hairlines on external elements, because coastal moisture can use them to reach the steel. The picture changes when hairlines appear on a column or beam, run directly over the line of the steel, or grow and multiply from one month to the next.

Serious structural cracks in Al Khobar

Serious structural cracks in Al Khobar sit in members that carry load, or betray that the structure itself is shifting, and they are usually what someone means when they type “dangerous wall cracks” into a search engine. Their treatment starts with a structural engineer. The signs are:

• ✓A crack in a column or beam horizontal in a column, diagonal near the end of a beam, or following the steel with rust.
• ✓A diagonal crack that is widening coming out of an opening corner and measurably wider after a few weeks.
• ✓Bulging or fallen concrete on balconies, ceilings or column bases, with steel showing.
• ✓Signs of movement doors and windows that suddenly stick, a sloping floor, a gap opening between wall and ceiling.
• ✓Sagging in a ceiling or beam a visible dip, or closely spaced transverse cracks on the soffit.

When is a crack serious and when do you need an engineer in Al Khobar?

A crack in Al Khobar calls for an engineer when it sits in a load-bearing element, reaches 5 mm or more in width, keeps widening, or comes with advanced corrosion or signs of settlement. Hairline plaster cracks, settled cracks at opening corners and lines along block-to-concrete junctions are carried out by an experienced technician without an engineering report.

Where an engineer is needed, we spell out on day one which tasks are ours and which are the engineering office’s: the engineer inspects, decides and designs; we carry out the repairs to the report and the finishes. That split keeps cosmetic fixes away from structural cracks.

Crack monitoring in Al Khobar: how to tell if a crack is still moving

Crack monitoring in Al Khobar answers the one question that decides the whole repair: is the crack dormant or live? Settled cracks accept a hard filler or resin injection; a moving one needs a flexible material, or its movement has to be dealt with first. Concrete repair guidance warns that a live crack can only be sealed with a flexible sealant, and that closing a crack while its cause is still active gives a repair that does not last.

In Khobar we try to make sure monitoring covers some hot days and some cooler ones, because many facade and boundary-wall cracks are thermal: they open in the midday heat and close at night, so a reading taken in the early morning can make a live crack look dormant. Monitoring uses two tools:

• ✓A graduated crack gauge a pair of overlapping clear plastic or metal plates bonded across the crack, one on each face, carrying a scale that reveals any shift between them in millimetres. We use it when monitoring has to run for longer.
• ✓Dated marks and regular photos a pencil tick at both tips with the date written next to it, plus a ruler-in-shot photo taken from a fixed position at intervals. Any homeowner can start this today.

Epoxy crack injection in Al Khobar

Epoxy crack injection in Al Khobar is a process in which liquid resin is pushed under pressure into a dormant concrete crack through small ports fixed along its length, so that it penetrates, hardens and welds the two faces together. Guidance from the American Concrete Institute puts the lower limit at 0.05 mm of crack width, should not be relied on for a crack expected to move after the repair, and calls for a grade designed to work with moisture when the crack is damp. We price injection from SAR 32 for each linear metre.

In Khobar we inject old shrinkage cracks in columns, beams and slabs, tank and basement walls once dry, and cracks the engineer wants bonded before strengthening:

1. 1
   Confirm the crack is dormant
   From monitoring or from its history, and decide whether it is dry or damp so the right epoxy grade is used.
2. 2
   Clean and prepare
   Dust and paint are removed from the crack and from a band of roughly 13 mm on each side, and weak edges are cut back into a small groove.
3. 3
   Fix the ports
   Small entry ports go along the line, closer together on narrow cracks and on thinner members.
4. 4
   Seal the surface
   A cap seal is applied between the ports so the resin cannot escape at the face while it is pumped.
5. 5
   Inject in sequence
   Starting at the lowest or widest port, resin goes in until it shows at the neighbouring port, which then becomes the next injection point.
6. 6
   Remove and finish
   After curing we cut off the ports, grind away the surface seal, and make good with render or paint.

We do not inject a crack caused by rusting steel. Injection closes the crack and leaves the rust expanding behind it until it pushes the concrete off again, a mistake we see often on Khobar balconies. That type of crack is treated with a section repair, as described in the columns and balconies section above.

Polyurethane injection for wet cracks in Al Khobar

Polyurethane injection in Al Khobar is what we choose when a crack is wet or water is dripping from it, which is common in underground water tanks, basement walls and some bathroom ceilings. The material swells on contact with water, closing its path, and stays soft, but it gives the member no strength. That is why we sometimes use it first to cut off the water and then, if the crack still needs a structural bond, wait for it to dry and inject it with epoxy. Polyurethane injection is priced at inspection.

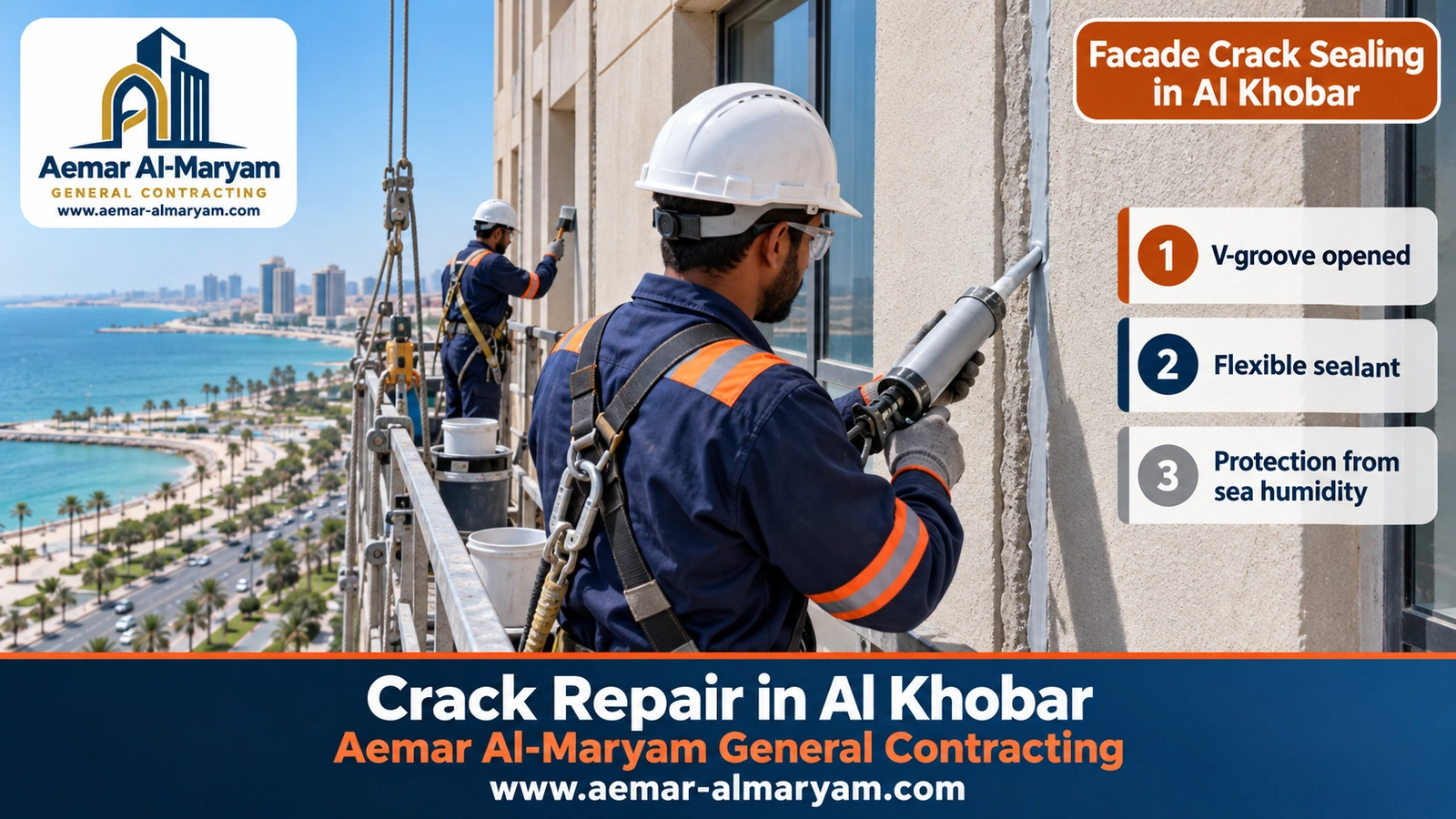

Facade and exterior wall cracks in Al Khobar

Facade and exterior wall cracks in Al Khobar come from two sources working together: heat, which pulls open the joints between block infill and the concrete frame, and salty moisture, which weakens the external render, lifts the paint and reaches the steel at exposed edges. We see four patterns on facades: straight lines tracing the frame, crazing in tired render, slanting lines from window heads and sills, and flaking and bulging at the base of the wall or under balconies.

Our method on a facade is to remove weak and debonded render, open long cracks into a V and fill them with a flexible sealant where they are thermal and moving, fix mesh over the junction lines, apply new external render, and finish with a moisture-resistant paint. Treating facade cracks as part of a render-and-paint facade repair costs from SAR 41 a square metre, and the moisture-resistant exterior paint that follows starts from SAR 18 per square metre. You will find the detail of the render and paint stages on our plastering and painting service pages.

Facade cracks on towers and taller buildings in Al Khobar

Facade cracks on towers and taller buildings in Al Khobar are repaired in the same way as on a villa, but reaching them is what changes the cost and the timescale. A crack on the seventh floor needs a suspended platform, a full scaffold or a boom lift, depending on the building’s height, the length of the facade and the space in front of it. So we price access at inspection as a separate line from the repair items, keeping the cost of the repair itself apart from the cost of getting to it.

• ✓Group all facade cracks into one visit rigging a platform or scaffold once for every crack costs less than rigging it for each crack separately.
• ✓Coordinate with the building management work on a shared facade needs the owners’ approval and arrangements for parking and entrances.
• ✓Choose a paint suited to the coast a moisture-resistant and fairly flexible exterior paint that bridges hairlines and tolerates thermal movement.

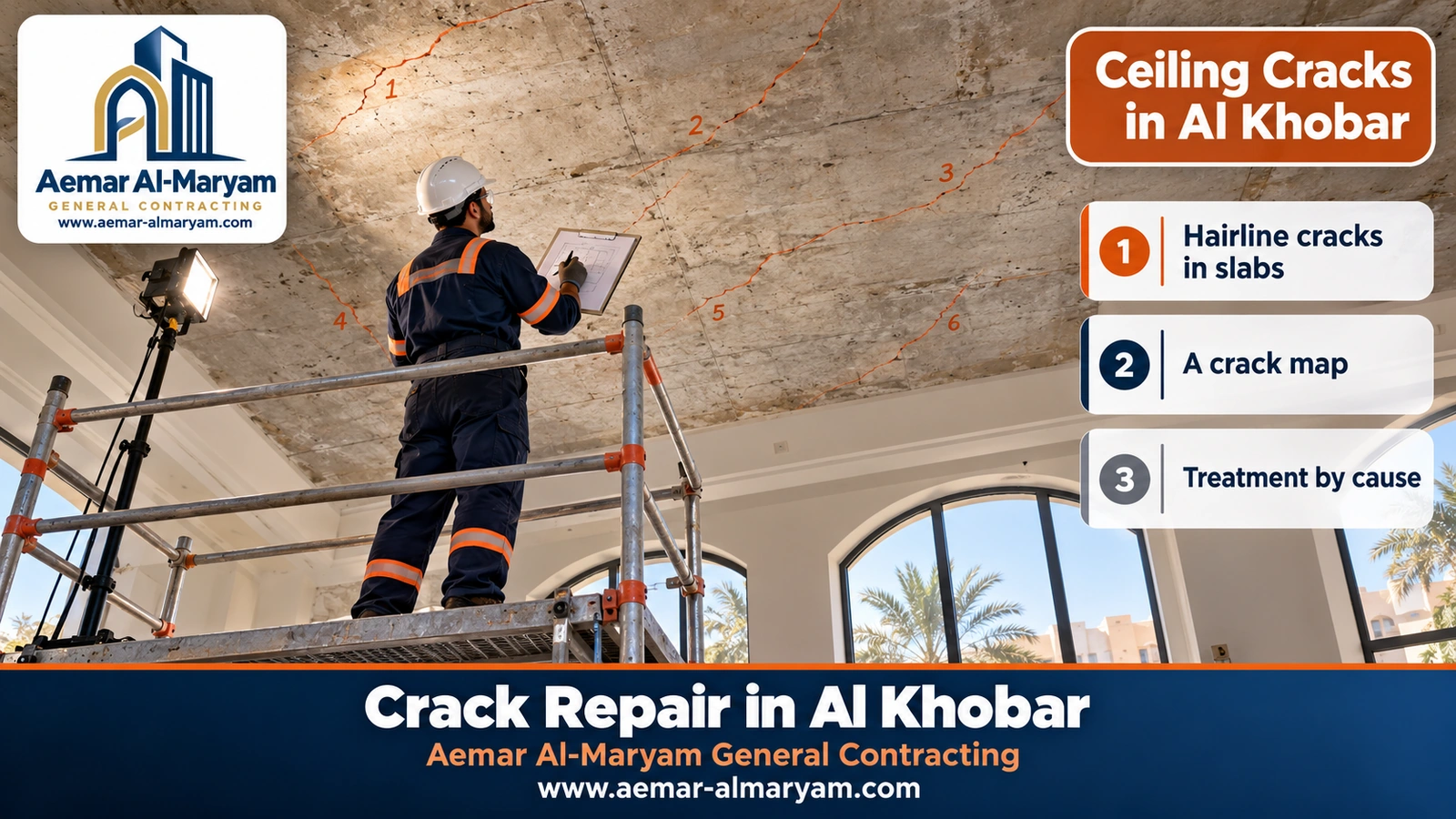

Ceiling cracks in Al Khobar

Ceiling cracks in Al Khobar fall into two groups: cracks in the ceiling plaster or gypsum, which are fine lines that usually do not touch the concrete, and cracks in the slab itself, the most important of which run along the steel with brown stains or bulging. Slab cracks are often discovered when old gypsum is taken down in a villa or flat, revealing a pattern nobody had seen before.

We then map the cracks: each is traced, numbered, measured and related to the steel. Scattered hairlines are treated before the gypsum goes back; cracks parallel to the bars, clustered mid-slab or with sagging go to the engineer. Then we find the water source above, usually an unprotected roof or a leaking bathroom.

Roof slab cracks before waterproofing

The top roof in Khobar takes direct sun by day and humidity by night, so cracks appear in its protective screed or in the concrete itself, and water passes through them to the ceiling below. Treating roof cracks is a step that has to come before any new waterproofing, otherwise the crack simply reflects through the new membrane. We clean the cracks and treat them with a flexible material or by injection depending on their condition, and the waterproofing then follows our roof waterproofing and insulation guide for Al Khobar or the waterproofing and insulation service.

Boundary wall cracks in Al Khobar: villas with long perimeter walls

Boundary wall cracks in Al Khobar usually take the form of a vertical line beside each pier, because a boundary wall runs for tens of metres under the sun and wind on both faces with no roof to hold it, so it moves freely with heat and cold. In villas with gardens there is a second cause: irrigation water that collects at the foot of the wall and carries salts into its lower part, so the render swells and cracks near the base.

At inspection we separate two situations. Regular vertical cracks at the piers are non-structural; we cut the render back either side of the joint, filling the joint with a flexible material, fixing mesh across the pier and the blockwork, then new render and exterior paint. Diagonal cracks, or a wall that leans or bows, may mean settlement under the wall’s footing, so we check the footing and deal with the water source first. A clearly leaning section may be cheaper to rebuild than patch, through our demolition service.

Building settlement and subsidence cracks in Al Khobar

Building settlement in Al Khobar is a condition in which part of the foundations moves down more than the rest, so the walls split along diagonal lines with one end wider than the other, a door or window starts rubbing against its frame, and the floor may tilt or a gap may open under the ceiling or at the tile skirting. No injection and no plaster fixes this; it starts with a structural engineer.

Along the Gulf coast, settlement is often tied to water: drain or supply pipes leaking under the floor, gardens watered heavily right against the footings, groundwater that can sit close to the surface on some sites, and saline soil that loses its strength when its salts dissolve. So our work starts by looking for the water before anything else:

1. 1
   Record and monitor
   Photos and measurements of every crack, and monitoring gauges to find out whether the movement is continuing.
2. 2
   Check the water sources
   Pipework, drains and anywhere water collects around the building and the boundary wall.
3. 3
   Engineer’s report
   The engineer may ask for a soil investigation, then decides whether the footings need underpinning or a repair above ground is enough.
4. 4
   Carry out the work
   We take on the parts of the report that fall within our trade and arrange specialist work with the right party.
5. 5
   Walls come last
   Once the readings show the movement has stopped, we repair the cracks and restore the plaster and paint.

Floor and tile cracks in Al Khobar

Floor and tile cracks in Al Khobar usually come from sunken fill under ground-floor or courtyard tiles (they crack and sound hollow) or from slab movement and missing movement joints. We fix the fill and water source and re-tile, or treat the slab crack before new tiles go down; this is priced at inspection.

Crack restoration in Al Khobar as part of a wider repair

Crack restoration in Al Khobar is often part of a bigger job, such as balconies, facade and roof in one block, so we recommend one planned sequence instead of scattered fixes: stop the water first, then repair the concrete elements, then treat the cracks, then render and paint. The full renovation picture is in our Al Khobar renovation guide and on the renovation service page.

Crack stitching in Al Khobar

Crack stitching in Al Khobar uses bars laid across the crack in chases cut into the masonry and grouted in, so the two sides are tied together and the load is shared between them. The bars typically extend about half a metre on each side of the crack at close spacings that the engineer confirms. The key condition in installation guidance is that a structural engineer identifies the cause of the cracking and that it is eliminated before stitching. We therefore refuse to stitch a crack while settlement is still pulling it open, and stitching is priced at inspection after the report.

Crack repair prices in Al Khobar

Crack repair prices in Al Khobar are not one figure for the whole house. Injection is measured by the length of the crack, preparing room walls for paint is priced per room, mesh and facade work by area, and columns by number. Our starting points are:

These are estimates until inspection and agreement. The crack’s length, width and depth, its floor level and how hard it is to get at all shift the total. Items marked “priced at inspection” or “after the report” are costed once we have visited, and you can shorten the process by sending clear photos of the cracks with a ruler to WhatsApp 0547879578 for an initial estimate. Our other rates are on the prices page.

A worked example: an apartment in Al Khobar before repainting

This is an illustration only. An apartment has three rooms with settled window-corner cracks and hairlines in the plaster, plus a dormant crack two and a half metres long in the living-room beam that the technician confirmed at inspection. At the starting rates the sum looks like this:

A villa example: 12 m² of meshed and patched junction lines on a boundary wall (12 × 20 = SAR 240) plus 40 m² of moisture-resistant paint (40 × 18 = SAR 720) gives a total from about SAR 960, confirmed at inspection.

Mistakes that make cracks come back in Khobar homes

Crack repair mistakes keep happening in Khobar because quick fixes are tempting: filler and paint, and the crack vanishes for a few weeks. In a coastal city, though, a crack treated the wrong way returns faster. These are the mistakes we most often have to put right:

• ✓Injecting or plastering over a corrosion crack the rust carries on behind the new material and then pushes it off with a bigger piece of concrete.
• ✓Ignoring water on the balcony or roof repairing the crack from below while water still arrives from above brings it back the next season.
• ✓A rigid filler on a thermal crack facade and boundary wall cracks open and close; ordinary filler cracks beside them.
• ✓Interior paint on an exterior wall paint not made for outdoor use flakes with damp and salt and reveals the crack.
• ✓Leaving debonded render under the repair the new material falls away together with the hollow render beneath it.
• ✓Rushing the finish paint over damp mortar or uncured resin, and fresh cracking and peeling follow.
• ✓Judging a column or beam by eye load-bearing elements need measurement and a report, not a quick opinion.

Crack repair steps in Al Khobar with Aemar Al-Maryam

From your first message to handover, crack repair in Al Khobar with us follows these steps:

1. 1
   The first message
   Your crack photos reach us on WhatsApp and we reply with an initial view of what they are and how urgent they look.
2. 2
   Booking the inspection
   We schedule the visit from our base in Dammam to your address in Khobar at the earliest convenient time.
3. 3
   Measurement and diagnosis
   Every crack is measured and sounded, and classed as a finishing defect, one that needs monitoring, or one that needs an engineer.
4. 4
   Items and costs
   You receive a list of the tasks, their quantities and materials, and an estimated cost for each, plus access equipment where needed.
5. 5
   Treating the cause
   Fixing a leak, correcting a balcony fall, waterproofing a roof, or doing what the engineer has specified.
6. 6
   The repair
   Injection, section repair, opening and filling, or mesh and render, according to each crack.
7. 7
   Finishing
   Render and paint over the repaired area, with paint taken to the edges of the wall so no different shade shows.
8. 8
   Handover and follow-up
   You get the finished work plus tips on what to watch, and we return if something shifts.

Photos of completed jobs are on our projects page.

After crack repair in Al Khobar: maintenance for a coastal climate

After crack repair in Al Khobar you can protect the result with a few simple habits around water, salt and heat:

• ✓Check balconies twice a year any brown stain or fine line on the edge or soffit is worth a photo sent to us early.
• ✓Keep balcony and roof outlets clear a blocked outlet means standing water that finds its way to the steel.
• ✓Look at the base of external walls and the boundary wall bulging and white salt marks are signs of rising damp.
• ✓Keep irrigation water off the footings especially at villa boundary walls and external walls.
• ✓Fix leaks immediately a tank or bathroom leaking over a ceiling is creating the next corrosion crack.
• ✓Repaint exterior walls on time moisture-resistant paint is a protective layer, so do not leave it flaking for years.
• ✓Ask before adding any new load an extra tank on the roof, or a wall taken out to enlarge a shop, is a decision for an engineer.

Why Aemar Al-Maryam for crack repair in Al Khobar?

Al Khobar districts where we repair cracks

Our crack repair teams cover all of Al Khobar: South Khobar, Al Thuqbah, Al Hada, the Green Belt, Al Olaya, Madinat Al Ummal and Al Aqrabiyah among them. We work in apartments, apartment buildings, villas, shops and offices, and we coordinate shared-facade work with building management. Dammam, Dhahran and the wider Eastern Province are served at identical starting rates.

How to order crack repair in Al Khobar

To order crack repair in Al Khobar, get the following information together and send it to WhatsApp 0547879578. Clear photos bring the estimate closer to the final figure:

• ✓A tight shot of every crack, a ruler or coin in frame to show its width.
• ✓A wider shot showing where it is: interior wall, facade, balcony, column, ceiling or boundary wall.
• ✓Floor and height especially for facade cracks, so we can plan the access.
• ✓Accompanying signs rust, spalling, damp, a leak, or doors that stick.
• ✓The crack’s history how long it has been there, if it is getting longer or wider, and any earlier repair that failed.
• ✓District and building type apartment, block, villa or shop, and its approximate age.
