Roof Waterproofing & Insulation in Khafji – Sea-Air Resistant Roofs, Joints & Leak Detection

Roof waterproofing in Khafji needs its own approach because the town sits right on the sea at the far northern tip of the Eastern Province, close to the Kuwaiti border. The air carries humidity and salt, dew soaks roofs every morning, and every piece of metal or pipe that passes through a roof turns into a weak point unless it is detailed properly. Aemar Al-Maryam General Contracting waterproofs and insulates houses, apartment buildings and annexes in Khafji, seals AC stands, pipe penetrations and expansion joints, lines tanks and bathrooms, and traces leaks with thermal imaging and moisture meters. Per square metre, bitumen rolls begin at SAR 13, a foam layer at SAR 23, coated foam for water and heat at SAR 42, and the membrane-then-boards-then-tiles system at SAR 46, all provisional until we inspect. Call or message 0547879578.

Since our crews drive up from Dammam to a town roughly 298 km away by published estimates, we run Khafji jobs as planned trips: we gather photos and details before setting off, build a schedule that covers preparation, application and flood testing, and encourage building owners and neighbours to bundle their work into one visit. This guide explains what makes waterproofing different in a marine climate, how the usual entry points for water are dealt with, how leaks between flats are traced, what each item costs and how to cut the travel bill.

Roof Waterproofing in Khafji: Why a Seaside Roof Is Different

Roof waterproofing in Khafji differs from an inland city because heat is not the roof’s only enemy here; constant humidity and airborne salt from the sea matter just as much. Humidity keeps the deck wet with dew for hours each morning, and salt eats exposed steel in AC stands, tank covers and pipe clamps. When a stand rusts it swells and splits the waterproofing around it, and water gets in exactly where the owner never thought to look.

That is why so many leaks we see in Khafji come not from the middle of the roof but from its edges and holes: around an AC leg, where a condensate pipe drops into the slab, at an expansion joint between two blocks of a building, or under a roof-tank lid. Proper treatment begins at those points before any general layer is laid.

What sea humidity and salt do to a roof

• ✓Stands and fixings rust: the steel expands and lifts or tears the membrane around it.
• ✓The deck dries late in the morning: waterproofing applied on a damp surface bonds poorly and blisters later.
• ✓Salt works into the concrete: chlorides speed up reinforcement corrosion once water reaches the steel, as Eastern Province studies have recorded.
• ✓Reflective coatings fade faster: sun plus salt spray dulls them, so they need regular renewal.
• ✓Large blocks move: long apartment roofs have expansion joints that must be sealed with flexible materials.

Choosing a Roof Waterproofing Company in Khafji

The right waterproofing company in Khafji understands what a marine climate does to a roof and tells you how it will handle the weak points before quoting a price per metre. Calling yourself the best costs nothing; clear answers to the following questions are what actually count:

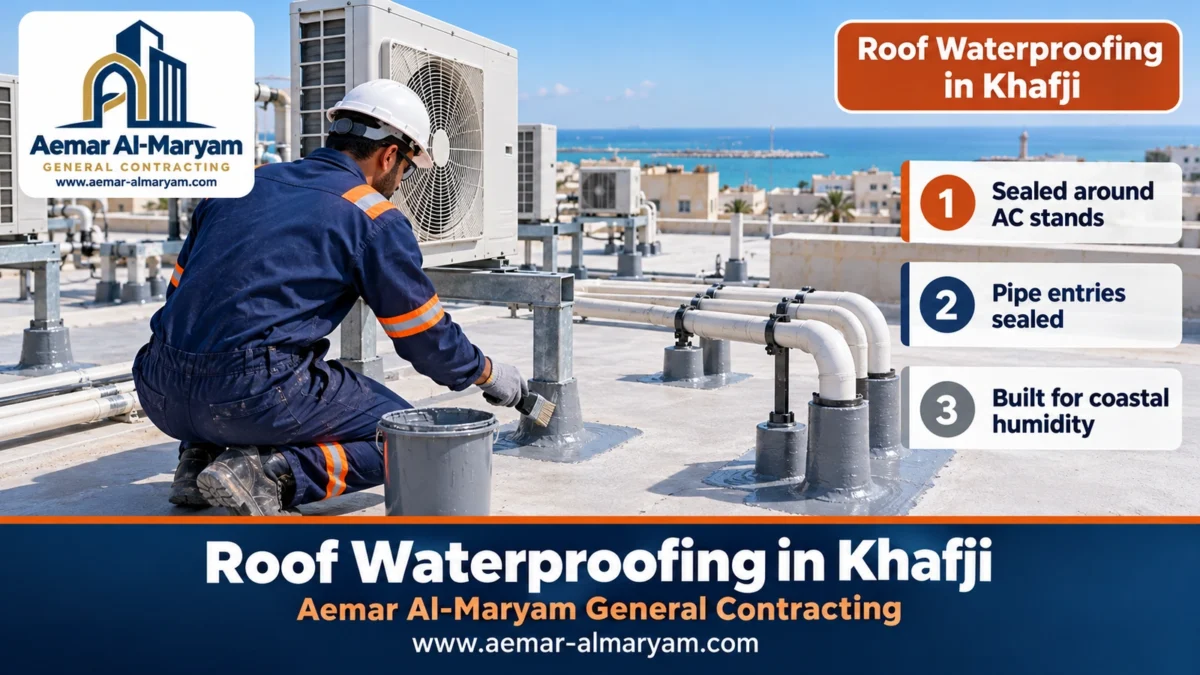

Sealing AC Stands and Roof Penetrations in Khafji

Sealing AC stands and pipes in Khafji means making the waterproofing around each penetration one piece with the rest of the roof, not a separate patch. Apartment roofs here are crowded: an outdoor unit for every flat, condensate pipes, tank feed lines, sometimes aerials and dishes. Every stand leg punctures the roof, and every puncture needs a detail.

1. 1
   Clean the stand
   We remove loose rust, dust and salt, and recommend an anti-corrosion paint on steel stands before waterproofing.
2. 2
   Flexible collar
   A collar or flexible tape goes around each leg or pipe where it meets the roof.
3. 3
   Liquid coats
   Two coats of liquid membrane over the collar and the surrounding deck fuse it into the general waterproofing.
4. 4
   Falls around the base
   We make sure water cannot pond at the stand, because standing salty water speeds up rust.

So on Khafji’s crowded roofs we favour systems that need no cutting and welding around each item: spray foam that flows around the stands, and liquid membranes brushed onto them. Torch-on rolls work too, but they need a patient installer who cuts and welds a purpose-made piece for every penetration.

Roof Waterproofing Membranes in Khafji

A waterproofing membrane in Khafji is a continuous layer that keeps water off the roof slab. By itself it suffices where the slab is already insulated, or on a roof carrying only plant. Water reaches a Khafji apartment roof from many directions: rain when it comes, condensate dripping all summer, roof-tank overflow and roof washing. And water that reaches the concrete here brings salt with it, so damage comes faster.

Bitumen roll waterproofing in Khafji

Modified bitumen rolls are torch-fused over primer into a single sheet, starting at SAR 13 per square metre. In humid weather we watch two things before torching: the deck and primer must be completely dry, and every piece around stands and pipes must be cut and welded on its own. On the parapets the rolls climb 150 mm or more above the finished surface, and overlaps follow the maker’s sheet, typically 75-100 mm minimum along the edges and at least 100 mm where rolls end.

If the rolls will stay exposed we specify a mineral-granule finish, because sun and salt spray wear a bare surface quickly. Over living space, a protective screed and tiles on top is better still.

Liquid waterproofing in Khafji

Liquid membranes suit Khafji’s busy roofs because they are brushed around every fitting with no welding. We choose by roof:

All of them live or die by dry film thickness: we calculate the number of pails from the area and the required thickness, never thin the product to stretch it, and bed reinforcing tape into corners and drains first.

Heat Insulation for Roofs in Khafji

Thermal roof insulation in Khafji cuts the heat coming down through the roof into the rooms. It matters here despite the sea, because a coastal summer combines heat with humidity and the AC runs longer in top-floor flats. The tenant on the top floor is the first to feel the difference between an insulated and an uninsulated roof.

Spray foam insulation in Khafji and the price per square metre

Foam is sprayed onto the roof, expands and hardens into a closed-cell layer bonded to the concrete with no seams. It insulates, sheds water and wraps around AC stands without cutting. A standard layer begins at SAR 23 per square metre, and once coated so that it blocks both water and heat, from SAR 42. In Khafji we focus on three points:

• ✓A dry deck before spraying: foam on a dew-wet surface bonds weakly, so we measure moisture and wait for the right window.
• ✓Correct density and thickness: roofing foam at around 45 to 48 kg/m³, never under 25 mm and typically 30-50 mm when retrofitting, per a published specification.
• ✓Coat on the same day: two coats of reflective elastomeric paint totalling at least 0.5 mm dry; foam never spends a night uncoated.

Insulation boards under tiles

Where the roof will be tiled and used, polystyrene boards over the membrane, then a protective screed and tiles, keep the whole build-up out of the sun and salt. Boards are priced from SAR 14 per square metre; the complete build of membrane, boards and tiles from SAR 46.

Roof Insulation Materials in Khafji: A Quick Table

In Khafji the choice between water-stopping and heat-slowing materials depends heavily on how many penetrations the roof has and how exposed it is to sea spray:

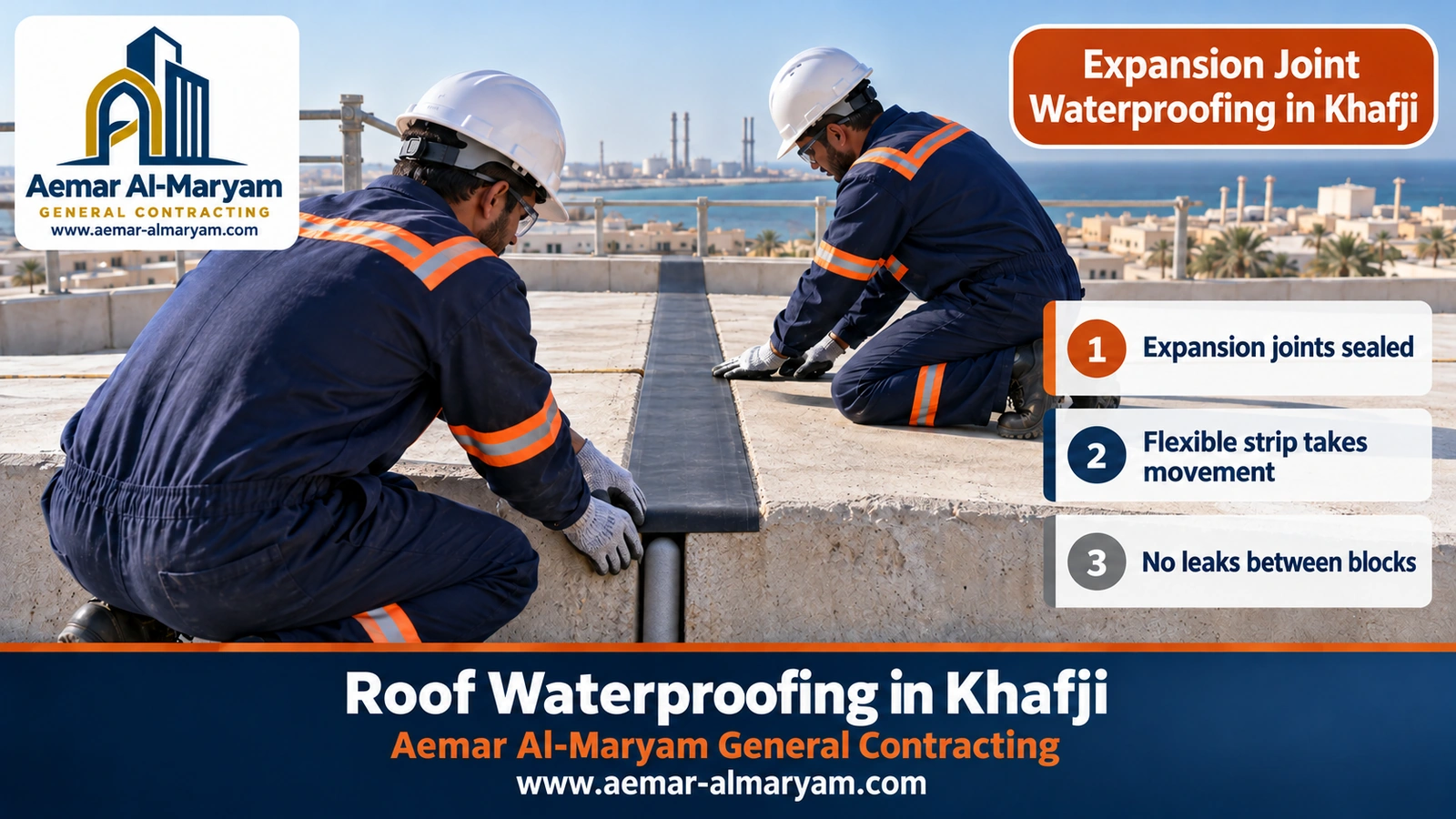

Expansion Joint Waterproofing in Khafji

Expansion joint waterproofing in Khafji seals the movement gap between two concrete blocks with flexible materials that let them move while keeping water out. The classic mistake is filling the joint with cement or rolling bitumen straight over it as if it were ordinary roof; the blocks move with temperature, the seal cracks and the joint becomes a channel that drains into the stairwell or the flats below.

1. 1
   Clean out the joint
   Old fillers, mortar and dust are removed to the required depth.
2. 2
   Backer rod
   A foam rod sized to the gap is pushed in to set the depth of the sealing material.
3. 3
   Flexible strip
   A wide rubber strip is bonded to both sides of the joint and left free in the middle to move.
4. 4
   Tie into the roof
   The strip edges are lapped into the general waterproofing and carried to the roof edge and parapet.

Joint sealing is priced at inspection by length, width and condition, and is usually done as part of a full building-roof job.

Waterproofing a Tiled Roof in Khafji Without Removing Tiles

A tiled roof in Khafji can be waterproofed without lifting the tiles if they are well bonded, water flows to the drains and the seepage is limited to the grout lines. We wash off salt and dust, regrout the worn joints and apply a clear or acrylic sealer that closes the pores, starting at SAR 10 per square metre. Where the leak comes from AC stands bolted through the tiles, each one gets its collar before the general coat.

Tiles that sound hollow, water that ponds after rain or a decayed membrane underneath cannot be fixed from above; the answer is to lift, rebuild the waterproofing and protection, and re-tile.

Best Roof Insulation for Khafji’s Coastal Climate

The best roof system in Khafji is the one that keeps exposed seams to a minimum, details every penetration properly and is shielded from the sun. No single product suits every roof, so here is a candid comparison:

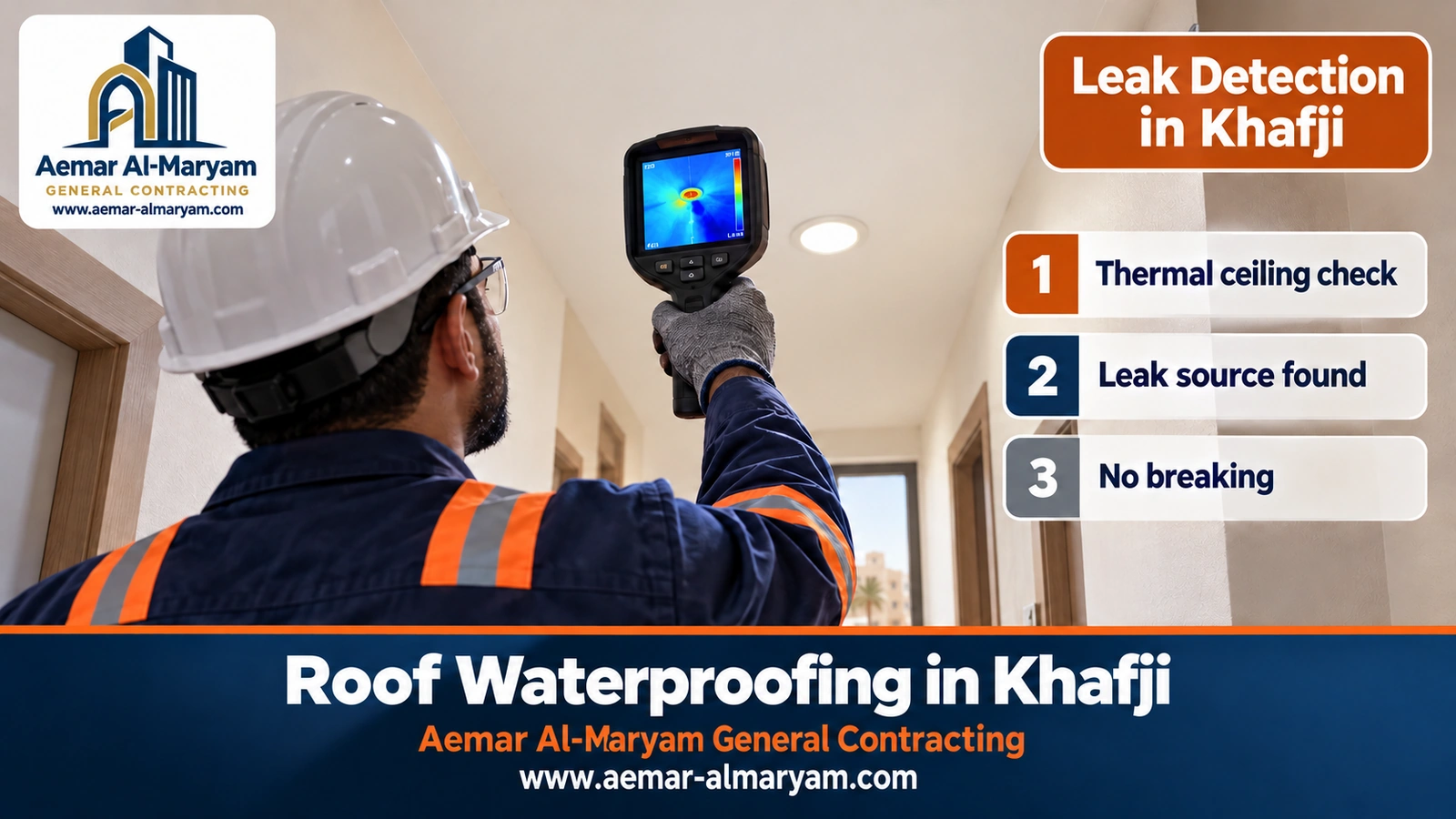

Water Leak Detection in Khafji Flats and Buildings

Leak detection in Khafji pinpoints the source with instruments before any tile or ceiling is broken, and the case we meet most in apartment buildings is water coming through a ceiling from the bathroom of the flat above. The thermal camera shows the cool patch and how far it spreads, the moisture meter confirms it is water and not a thermal shadow, and then we go upstairs to test the floor drain and pipes with dye and pressure to learn whether the membrane or a pipe is to blame.

• ✓Meter test: close all taps and outlets, then note the meter reading for thirty minutes; any movement means a leak.
• ✓Signs of a hidden leak: a growing ceiling stain, bubbling paint, a damp smell, grout lines darkening on the floor.
• ✓Neighbour access: we need to get into the flat above, so arrange it in advance to avoid a second trip.
• ✓More than one instrument: a camera on its own can mislead, so we confirm with moisture, pressure and dye tests.

Provisional until inspection, plus the trip to Khafji. If the source turns out to be a pipe, our plumbing service handles the repair.

Bathroom Waterproofing in Khafji

Bathroom waterproofing in Khafji is a flexible sheet laid beneath the tiling, across the floor and up the walls; it is what stops water from the flat above reaching the ceiling of the flat below. We strip the tiles to the slab, screed falls to the drain, then prime and apply two membrane coats with tape buried at corners, around the drain and at pipe entries. The bathroom is not tiled until water has stood in it for a full day without any sign below.

In the shower zone the membrane goes 1,800 mm up the wall, and around a bath 150 mm above its rim, following international wet-area references. Bathroom waterproofing begins at SAR 26 per square metre; for an old bathroom that needs a complete refit the price begins at SAR 2,300, with details on our bathroom and kitchen renovation page.

Water Tank Waterproofing in Khafji

Tank waterproofing in Khafji lines a concrete tank internally so water cannot leak out and soil water cannot seep in. In a coastal town an underground tank may sit in damp, salty soil, so any crack in its wall threatens the drinking water. We empty, clean and dry the tank, repair cracks, corners and pipe entries, then line it:

• ✓For drinking water: an epoxy lining certified for potable water such as NSF/ANSI 61, applied only once the concrete has cured for 28 days, with fans running throughout, then left for the cure time printed on its data sheet and flushed before filling. From SAR 46 per m².
• ✓Non-drinking: two coats of flexible cementitious coating from SAR 14 per m².
• ✓Roof tank: we treat its lid and steel fixings against rust, because a corroded lid lets in dust and spray.

Flood Testing in Khafji

A flood test in Khafji leaves water standing on the finished waterproofing for 24 to 72 hours, about 2.5 to 10 cm deep at the lowest point, following ASTM D5957, while we check the ceiling below and the edges, stands and joints. Depth is kept modest: a 10 cm pool loads the slab with about 100 kg on every square metre.

Because the crew comes from Dammam, the test is written into the schedule from the start: either the crew stays in Khafji until it ends and then lays the protection, or we fix a return date. We also ask you to keep an eye on the ceiling from inside and send us photos during the test.

Roof Insulation Prices in Khafji

Starting prices in Khafji match Dammam; the trip is added once it is agreed at inspection:

Provisional until inspection and agreement. Prices shift with roof condition, area, number of floors, materials, thickness and how easily materials can be lifted, and they exclude the trip to Khafji, which is agreed at inspection. For every other service, open our general price list.

Cost to insulate a 200 m² roof in Khafji: an illustration

Consider a small apartment building in Khafji with a 200 square metre roof, sound concrete and no old layers to remove. Installation alone at starting prices, before joint sealing or travel, would be:

Illustrative only; the real cost follows measurement and inspection.

One visit, bigger scope: cutting the cost of the trip

The road to Khafji is long, so the more work one trip carries, the less travel each item bears. Plan a larger job rather than scattered visits:

• ✓Building owners: put roof waterproofing, joint sealing and a check of the flats’ bathrooms on one schedule.
• ✓Neighbours on the same street: two or three roofs on one trip share the travel between you.
• ✓A single house: roof, tank and bathroom together instead of one per season.
• ✓If you also have work in Jubail, both appointments can be arranged on the same journey.

Our Process in Khafji, from Photos to Handover

1. 1
   Photos first
   Roof, stands, joints and ceiling stains on WhatsApp, with the number of flats or roofs.
2. 2
   Estimate and schedule
   We propose a system and a rough cost, and fix the trip dates and duration.
3. 3
   Inspection
   Often on the first working day itself when the photos are clear, saving you a trip.
4. 4
   Preparation
   Washing off salt and dust, de-rusting stands, repairing cracks, joints and falls.
5. 5
   Application
   Once the dew has gone: details first, then the main layer.
6. 6
   Flood and protect
   A 24 to 72 hour test, then the protective layer or tiles.
7. 7
   Handover
   Roof cleaned, waste removed, before-and-after photos.

How Long Waterproofing Lasts in Khafji’s Sea Air

Waterproofing in a coastal town lasts well when it is protected from the sun, its penetrations are detailed properly and it is maintained. Studies of sprayed foam roofs report lives of more than three decades where the coating is refreshed about once every fifteen years. In Khafji, what shortens a roof’s life is rarely the membrane itself; it is a rusted stand that split the surrounding layer, or a joint packed with cement. Walk the roof once a year: check stands and fixings and refresh their anti-rust paint, clear the drains and watch the reflective coat for fading.

Common Roof Waterproofing Mistakes in Khafji

• ✓Applying waterproofing over morning dew: adhesion suffers and blisters appear weeks later.
• ✓Leaving rusty stands untreated: the rust expands and cracks the layer around them.
• ✓Filling expansion joints with cement: they crack as the building moves and let water through.
• ✓Breaking out a whole bathroom before locating the leak: the source may be a small pipe reachable through one opening.
• ✓Exposed rolls without a mineral finish: sun and salt spray destroy them quickly.
• ✓Separate trips for every small job: the travel cost repeats every time.

Why Aemar Al-Maryam for Your Khafji Roof?

Because we deal with what makes a seaside roof different, the stands, pipes, joints and morning damp, rather than rolling one layer over the top. Because we plan the Khafji trip in advance with a clear schedule that includes testing, so the job is never left hanging. And because our prices are published as starting figures with written line items, you can see what is included and what is extra.

• ✓Diagnosis before treatment, and leak detection before breaking.
• ✓Flood testing before protection and tiles.
• ✓Waterproofing coordinated with building renovation in Khafji and Khafji painting work on the same trip.
• ✓A new annex roof can be insulated within annex construction in Khafji.

Where We Work in Khafji

We cover all of Khafji: houses and villas, apartment buildings and their roofs, annexes, shops and small warehouses. Our other services in town are on the Khafji area page, and the general service description is on waterproofing and insulation. Elsewhere in the province, start with our detailed Dammam roof waterproofing guide, or read about the other distant cities: Al-Ahsa roof waterproofing and Hafr Al-Batin roof waterproofing. Completed jobs are in our portfolio.

How to Book Roof Waterproofing in Khafji

Because the crew travels from Dammam, the more complete your information is at the start, the more the first trip achieves. Send on WhatsApp 0547879578:

• ✓Two or three roof photos: showing stands, pipes, tanks, drains and joints.
• ✓Close-ups of the AC stands: so we can see the rust and the state of the waterproofing around them.
• ✓Ceiling stains from inside: with the flat or room number, and whether the stain sits under a bathroom or under the roof.
• ✓Area, floors and number of flats: and whether the roof is tiled or bare concrete.
• ✓Other work: a tank, a bathroom or a neighbour’s roof you want added to the same trip.
• ✓Location and suitable days: so we can build the schedule.
