Roof Waterproofing & Insulation in Al-Ahsa – Heat-Proof Roofs, Pools, Tanks & Foundations

Roof waterproofing in Al-Ahsa means protecting a house on two fronts at once: from the summer heat that pours down through the roof slab into the top-floor rooms, and from water that reaches the ceiling after rain or roof washing. In an oasis city there is a third question as well: damp in the ground around the foundations. Working out of Dammam, Aemar Al-Maryam General Contracting serves Hofuf, Mubarraz and the farms and rest houses around them, installing spray foam and insulation boards, bitumen and liquid membranes, and lining tanks, irrigation reservoirs, rest-house pools and bathrooms, with instrument leak detection before anything is broken open. Torch-on membrane is priced from SAR 13 a square metre and SAR 23 for a foam layer; foam that handles water and heat together, finished with a protective coat, begins at SAR 42, while a roof built up in layers (membrane, then insulation boards, then protective tiles) begins at SAR 46. Nothing is final before a site visit; reach us by phone or WhatsApp on 0547879578.

Al-Ahsa is not a coastal city like Dammam or Al Khobar. It is a large inland oasis ringed by palm groves and farms, and its summers are drier and harsher on a flat roof. That is why most homeowners here ask first about heat, and only call about water when a brown ring appears on a ceiling after a downpour. But an oasis house also meets water from below: damp soil near the farms, gardens irrigated right against the walls, and underground tanks, reservoirs and pools at the rest houses. This guide walks through all of it: what to choose for your roof, how reservoirs, pools and tanks are lined, why wall bases peel, what each item costs, and how we plan trips from Dammam so you do not pay a separate journey for every small job.

Roof Waterproofing in Al-Ahsa: Heat from Above, Damp from Below

Roof waterproofing in Al-Ahsa starts with two questions on our side: what is actually bothering you, the heat or the water, and where is the water coming from, the roof, the ground or a pipe? A hot top-floor bedroom needs a thermal layer. A brown stain on the ceiling needs a membrane or a repaired source. Peeling paint at the foot of a wall usually has nothing to do with the roof at all; it is damp rising from the soil. Mix these up and the money goes to the wrong place.

Our insulation service overview applies in every city, and the Al-Ahsa area page collects everything we do in the city. This guide goes into what is specific to Al-Ahsa.

When does a roof in Hofuf or Mubarraz need insulating?

You do not need to wait for drips. Any of these is reason enough to book an inspection:

• ✓The top floor is clearly hotter than the rest of the house: especially late afternoon, and the ceiling feels warm to the touch. The roof has no thermal layer, or a thin one.
• ✓A brown ring or damp patch on a ceiling: it shows up whenever it rains or someone hoses the roof, and spreads a little more each time.
• ✓Water still standing a day after rain: the falls are wrong or the drain is blocked with dust and leaves.
• ✓Peeling paint and white salts low on the walls: a sign of rising damp, which needs a different diagnosis from the roof.

Choosing a Roof Waterproofing Company in Al-Ahsa

A good roof waterproofing company in Al-Ahsa asks about your problem before it names a product, and then writes down the layers, their thicknesses, how the drains will be detailed and how long the flood test will run. You cannot tell the best contractor from its advert; you can tell from its answers. Put these questions to everyone who quotes, us included:

Heat Insulation for Roofs in Al-Ahsa: Why It Comes First Inland

Thermal roof insulation in Al-Ahsa is the layer that slows the sun’s heat on its way from the roof slab into the rooms, and it is the first thing we recommend on a house that has never been insulated. An inland roof takes strong sun for long summer hours, and concrete stores that heat and releases it into the rooms through the evening. Put an insulating layer on top of the slab and much less of it gets inside, so the air conditioners have less to fight.

Spray foam insulation in Al-Ahsa: specification and price per square metre

Spray foam in Al-Ahsa is manufactured on the roof itself: two liquid components meet in the gun, react and swell into a stiff closed-cell layer stuck fast to the slab. Having no seams, it both insulates and sheds water. A standard layer starts at SAR 23 per square metre; with the protective coat that completes it as a water-and-heat system it starts at SAR 42. These are the points we hold to, based on a published specification for sprayed foam roofing:

Based on a published sprayed-foam roofing specification plus manufacturers’ datasheets; we fix the final thickness after inspecting your roof.

Insulation boards under roof tiles

If you want a tiled roof to sit out on during winter evenings, boards are a good choice: extruded or expanded polystyrene laid tight over the waterproofing membrane, then a separation layer and protective screed, then tiles. Their thickness is uniform and known, and they are fully shielded from sun under the tiles. Boards alone start at SAR 14 per square metre, and the full build-up of membrane, boards and protective tiles starts at SAR 46.

Roof Waterproofing in Al-Ahsa: Little Rain, but It Finds Every Mistake

A waterproofing membrane in Al-Ahsa is an unbroken skin between the weather and the slab. By itself it does the job where heat insulation already exists, or on a plant or service roof where only leaks matter. Rain, AC condensate, roof washing and tank overflow all count as sources, so we trace each one first. Rain does not come often here, but when it does it can be heavy for a few hours, and it exposes everything that was skipped: a blocked drain, a low corner, a membrane edge never turned up the wall.

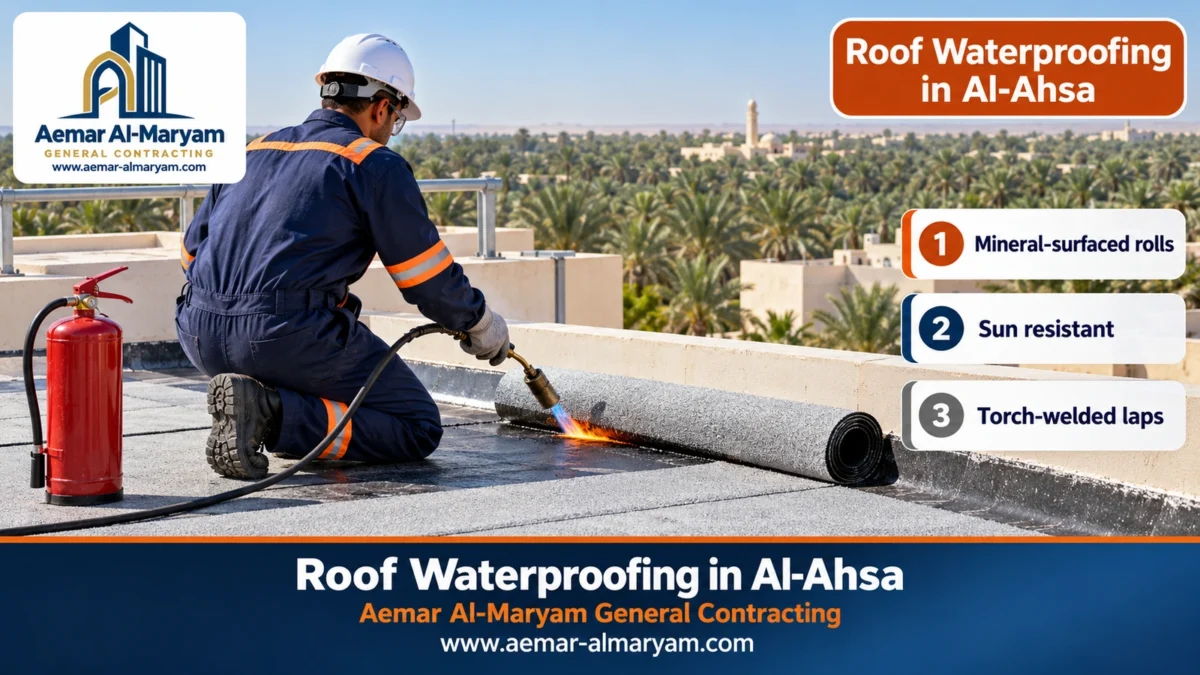

Bitumen membrane in Al-Ahsa: the details that decide it

Torch-on bitumen is still the most widely used waterproofing in Al-Ahsa: rolls of polymer-modified bitumen laid over primer and fused with a torch into one sheet. It starts at SAR 13 per square metre. Check these details before tiles cover them:

• ✓Laps: whatever width the roll’s datasheet asks for, typically a minimum of 75-100 mm on side laps and 100 mm or more on end laps, fully fused.
• ✓Upstands: carried up the parapet to 150 mm or more over the final roof surface, with the top edge fixed and covered.
• ✓Drain outlets: an additional patch of membrane is pushed down into each outlet first.
• ✓A clean deck: fine oasis dust trapped under a roll becomes a blister that lifts in the first summer.
• ✓What goes on top: mineral-surfaced rolls if left exposed, or protection and tiles if the roof is used.

Liquid waterproofing in Al-Ahsa

A liquid membrane goes on by roller or spray gun and sets into one jointless coat, which is why we choose it where stands and pipes crowd the roof and where a torch would be risky. There are four main families:

What separates good work here is dry film thickness. A pail rated for ten square metres cannot be stretched over twenty. We work out the quantity from the area and the thickness on the datasheet, count the coats, and bed tape into corners and around drains before the first coat.

Roof Insulation Materials in Al-Ahsa: Which Suits Which Roof?

Al-Ahsa roof insulation materials fall into water-stoppers and heat-slowers, with foam sitting in both camps. Matching them to roofs:

Waterproofing a Tiled Roof in Al-Ahsa Without Breaking Tiles

Yes, a tiled roof in Al-Ahsa can be waterproofed without breaking it if the tiles do not ring hollow when tapped, water runs to the drain, and the seepage is coming through the grout. The tiles are washed, loose grout is raked out and replaced, and a transparent or acrylic sealer goes over the top to close the pores; prices begin at SAR 10 per square metre. Hollow tiles, standing water or a rotten membrane underneath are another matter: water trapped under the tiles stays trapped, and some older Al-Ahsa roofs were tiled straight onto sand with no membrane at all. Those need stripping and rebuilding.

Best Roof Insulation for the Al-Ahsa Climate

No single product is best for every roof in Al-Ahsa; the best is whatever solves your roof’s real problem and is installed to its full specification. In an oasis where heat is the first complaint we lean towards systems that combine thermal and waterproofing layers, but we keep them clearly apart:

Foundation Waterproofing in Al-Ahsa and Damp Rising from the Ground

Foundation waterproofing in Al-Ahsa protects footings, column necks, ground beams and the ground slab from soil moisture and salts with bitumen layers applied before backfilling, and it costs far less on a new building than on an existing one. Groundwater across the Eastern Province is shallow at many locations, and university studies in the region have recorded salts climbing through concrete by capillary action to heights of around 75 cm. In a farming oasis where fields and gardens are watered every day, damp in the soil around houses is all the more present.

In an existing house it shows in signs many Al-Ahsa residents know well: paint blistering and flaking at the foot of the wall, salty white patches on the plaster near the floor, cracked or loose skirting, and a damp smell in ground-floor rooms. Fresh paint or fresh plaster will not fix it; the damp comes back as long as its source is there.

1. 1
   Find the source
   We take moisture readings at several heights on the wall and check nearby pipes, the underground tank and any irrigation against the wall.
2. 2
   Deal with outside water
   Move irrigation away from the wall, correct the courtyard falls so water drains away, and fix any leak we find.
3. 3
   On a new building
   Footings, necks and ground beams get bitumen coating and membrane, the ground slab gets a damp-proof layer beneath it, and everything is protected before the soil goes back.
4. 4
   On an existing house
   Remove damaged plaster at the wall base, treat the surface, then re-plaster and paint with damp-tolerant materials, leaving time to dry.

Foundation waterproofing and wall-base treatment are priced at inspection because the scope varies so much between houses. If cracks come with the damp, the crack repair service explains how we assess them, and if the whole house needs work the renovation contractor in Al-Ahsa guide brings everything into one project.

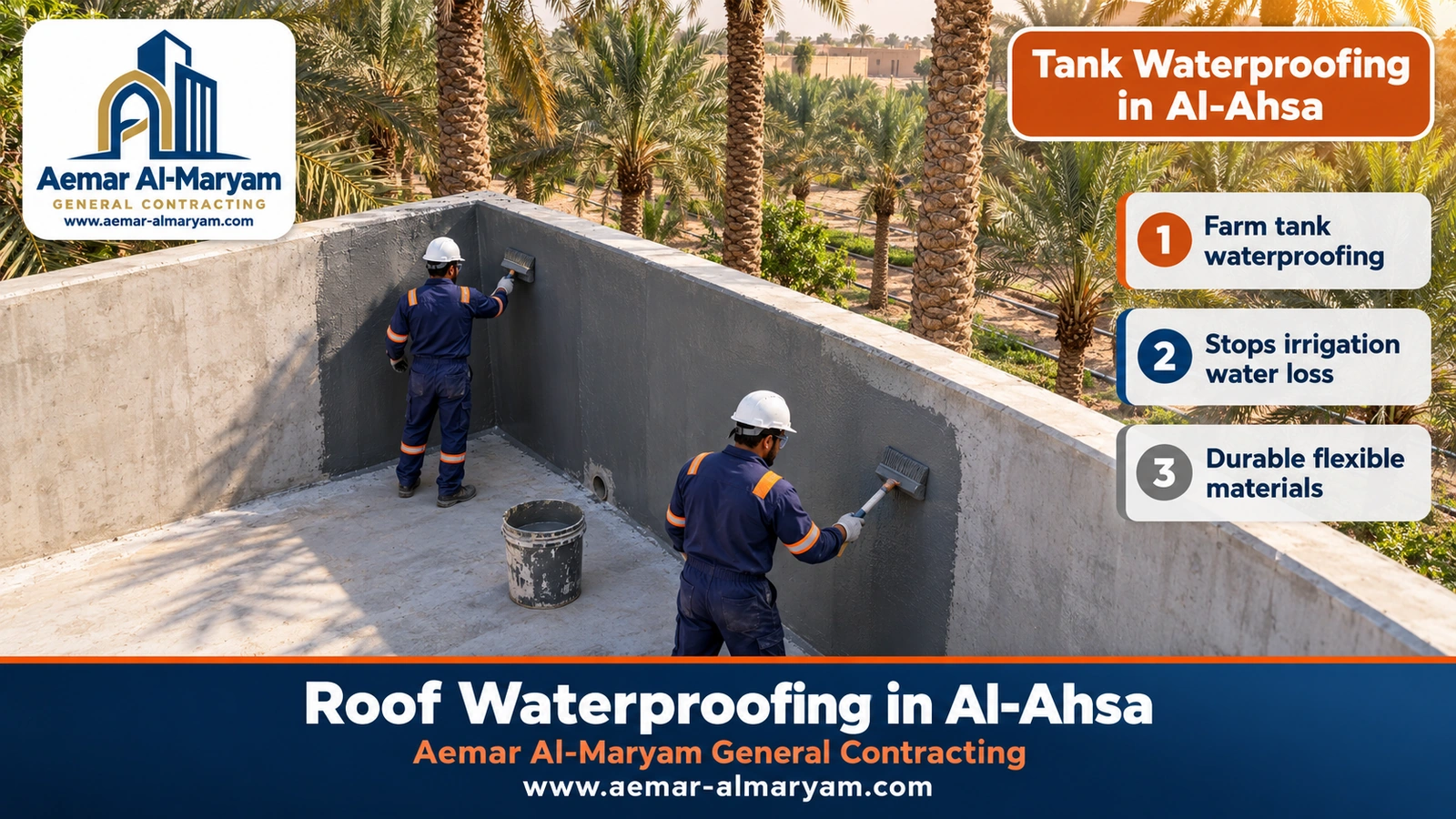

Water Tank Waterproofing in Al-Ahsa: Drinking Tanks and Farm Reservoirs

Tank waterproofing in Al-Ahsa lines a concrete tank from the inside so water cannot leak out and groundwater cannot seep in. An underground tank in a house near a farm faces both risks: a leak that wastes water and soaks the soil under the foundations, and a crack that lets soil water into the drinking supply. We start by emptying, cleaning and drying it, then inspect cracks, floor-to-wall corners and pipe entries and repair them before lining.

• ✓Drinking-water tank: a lining certified for potable-water contact, for example to NSF/ANSI 61, on concrete at least 28 days old, with ventilation during work, cured as the datasheet requires (one certified lining specifies 7 days) and flushed before use. From SAR 46/m².
• ✓Non-potable tank: two coats of flexible cementitious coating with reinforcing tape in the corners, from SAR 14/m².
• ✓Concrete roof tank: lined inside, and insulated on its top and sides if you want cooler water in the Al-Ahsa summer.

Lining irrigation reservoirs and farm tanks in Al-Ahsa

Open irrigation reservoirs lose more water through cracks, corners and construction joints than through evaporation, and over time their inner face wears and becomes more porous. They are lined empty: we clear out silt and algae, open up and fill cracks with repair mortar, tape the corners and construction joints, then brush two coats of flexible cementitious coating over walls and floor. Once it has cured we suggest filling gradually and watching the level for two days before relying on it.

Cementitious lining for concrete tanks starts at SAR 14 per square metre; large reservoirs are priced at inspection according to area, concrete condition and access. Farms are often outside the residential districts, so send a map pin and directions with your request.

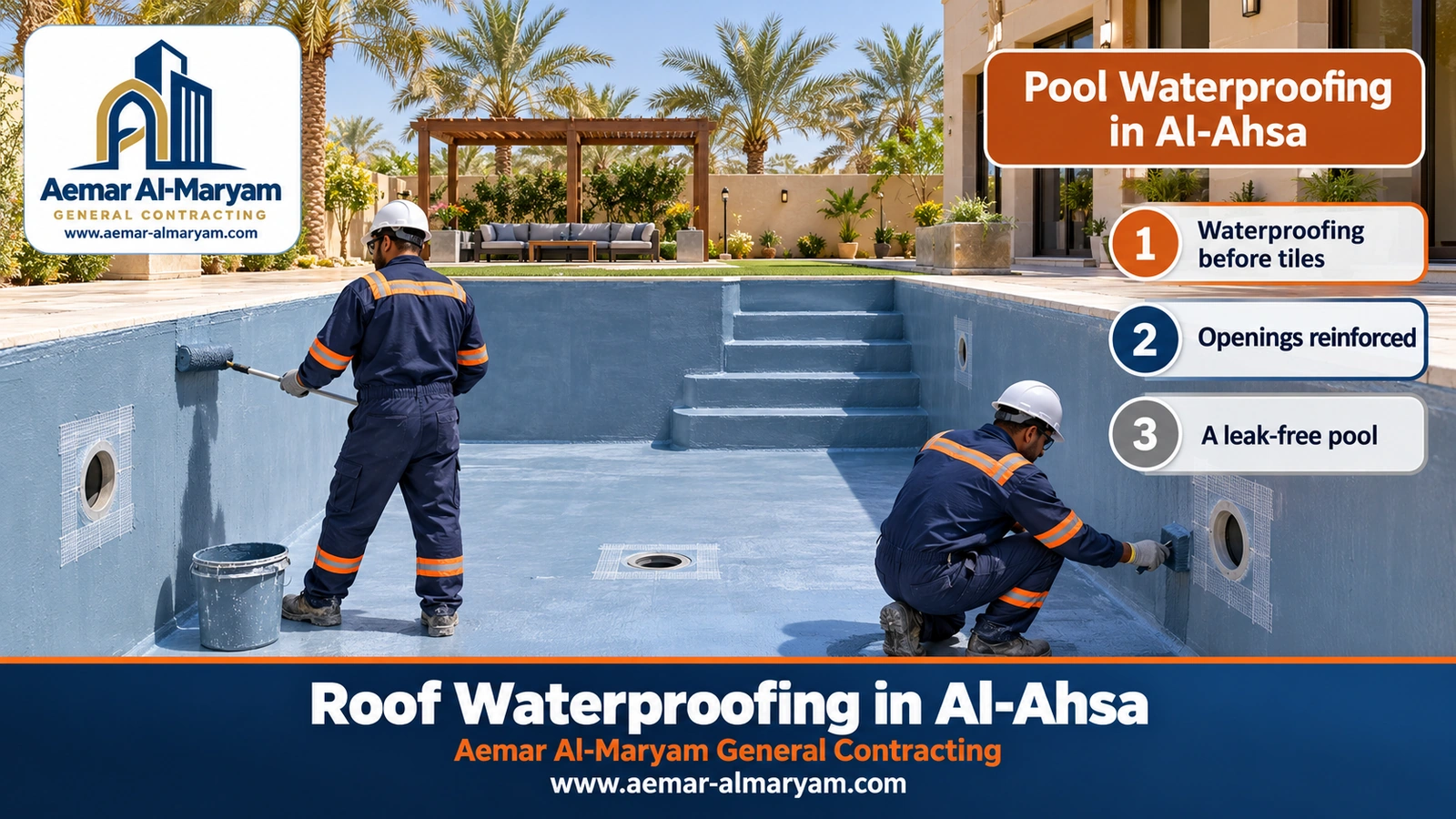

Waterproofing rest-house swimming pools in Al-Ahsa

A pool must be waterproofed before it is tiled, not after, because tiles alone do not hold water: the joints pass it to the concrete and cracked concrete passes it to the soil. We coat the floor, walls and inner steps, reinforce around lights, drains and return inlets with flexible tape, and carry the coating up to the pool edge. Then we fill the pool and watch the level before the tiler starts; any drop beyond evaporation is fixed while the shell is still open.

Rest-house pools are priced at inspection because they vary in area, depth, number of fittings and concrete condition. Planning a majlis or guest annex at the same rest house? Our Al-Ahsa annex building guide explains it, and its roof can be insulated within the same contract.

Bathroom Waterproofing in Al-Ahsa: Membrane Before Tiles

Bathroom waterproofing in Al-Ahsa puts a flexible membrane under the tiles, covering the floor and turning up the walls, so shower water cannot reach the room below or the base of the neighbouring wall. Our sequence: old tiles out down to the slab, a screed sloped to the floor drain, primer, two coats of membrane with tape bedded into corners and around the drain and pipes, and a water test of 24 hours or more before screed and tiles.

As an international reference for wet areas, shower walls are waterproofed to 1,800 mm above the floor, walls around a bath to 150 mm above its rim, and the rest of the room with a perimeter upstand that stops water creeping under the wall. Bathroom waterproofing starts at SAR 26 per square metre, and a full renovation with demolition, waterproofing, plumbing and tiles starts at SAR 2,300 through our bathroom and kitchen renovation service.

Water Leak Detection in Al-Ahsa Before Anything Is Broken

Leak detection in Al-Ahsa means pinpointing the leak with instruments before tiles come up, so the opening is one small spot rather than a whole bathroom. We always start with a simple question: is there a leak at all? Turn off every tap, make sure the tanks are full and the float valves are not filling, then watch the water meter for half an hour. If it moves, water is escaping somewhere.

Then we use more than one method, never relying on a single device. A thermal camera reads surface temperature differences and does not see water directly, so we confirm it with a moisture meter, pressure-test the supply lines to find which one loses pressure, and use dye tests on floor drains and outlets. In large Al-Ahsa houses with wide courtyards we always check the line from the underground tank to the pump, because it is often the culprit.

Estimates until inspection and agreement; the trip to Al-Ahsa is priced at inspection. Repairs go through our plumbing works service when needed.

Flood Testing in Al-Ahsa: Proof Before the Tiles

A flood test in Al-Ahsa holds water over the finished waterproofing for one to three days (24 to 72 hours), with about 2.5 to 10 cm at the lowest point, as recommended by ASTM D5957 for horizontal waterproofing. We plug the drains temporarily, fill, mark the level and watch the ceiling underneath. Ten centimetres of water weighs roughly 100 kg per square metre, so we never go deeper than the slab should carry.

In the dry Al-Ahsa summer the level drops through evaporation during the day, so we do not judge the test by the water line alone; the real verdict is a dry ceiling below and intact edges and drains. We run the same test on bathrooms and pools before tiling, because fixing a fault before it is covered costs far less than after.

Roof Insulation Prices in Al-Ahsa: “Starts From” Table

These starting prices are the same in every Eastern Province city; the only difference in Al-Ahsa is the travel cost, which is set at inspection:

These numbers stay provisional until we inspect and agree terms. They move with the roof condition, size, floor level, material, thickness and access, and the trip to Al-Ahsa is added once it is set at inspection. See the full price list.

Cost to insulate a 200 m² roof in Al-Ahsa: a worked example

Picture a Mubarraz villa with 200 m² of clean concrete roof and nothing old to remove. At starting prices, supply and installation alone would come to the following, with stripping, falls, tiles and travel still to add:

Illustration only; the real cost is known after measuring and inspecting.

Travel from Dammam to Al-Ahsa: how it is priced

The road from Dammam to Al-Ahsa is about 160 km according to published sources. That means an early start, and sometimes an overnight stay when the system takes more than a day or a flood test is involved. So we do not fix a travel figure in advance; we set it at inspection according to the days, crew and equipment. What lowers your share of it:

• ✓Combining the roof, tank and bathroom in one visit instead of three.
• ✓Agreeing with a neighbour or relative in the same district to do his roof on the same trip.
• ✓Sending clear photos and measurements before the inspection so we bring the right materials the first time.

Roof Waterproofing Steps in Al-Ahsa

1. 1
   WhatsApp photos
   Roof and ceiling pictures reach us and you get a proposed system with a rough cost.
2. 2
   Inspection
   We check the roof, falls, drains and old layers, measure the area and agree the stripping and travel items.
3. 3
   Preparation
   In summer we start at first light: strip failed layers if needed, clear dust and sand, repair cracks, screed falls where water ponds.
4. 4
   Details first
   Drains, corners, AC stands and pipe entries are reinforced before the main layer.
5. 5
   Application
   Membrane then thermal layer, or foam and its coat on the same day, according to the agreed system.
6. 6
   Water test
   A one-to-three-day flood while someone checks the ceiling underneath.
7. 7
   Protection and handover
   Protective layer or tiles, roof cleaned and waste removed, and a short explanation of the upkeep your roof needs.

How Long Does Roof Insulation Last in Al-Ahsa?

Service life depends on workmanship, protection and upkeep far more than on the product name. Published research on sprayed foam roofs reports service lives beyond 30 years when the protective coat is renewed roughly every 15 years, and membranes under tiles last a long time if their drains stay clear of dust and fronds. Exposed membranes in the Al-Ahsa sun tire much faster. Check your roof before each rainy season, recoat foam when it fades, and when you empty a reservoir or pool for cleaning, do not leave it dry in the sun for long.

Common Roof Insulation Mistakes in Al-Ahsa

• ✓Waterproofing only on a roof that was never insulated: the leak stops but the heat stays.
• ✓Spraying foam without its protective coat: the surface breaks down in the summer sun within months.
• ✓Torching rolls onto a dusty deck: fine dust stops adhesion and the rolls lift in the heat.
• ✓Leaving drains blocked with fronds and dust: water stands on any system and finds its way to the ceiling.

What You Get with Aemar Al-Maryam in Al-Ahsa

Because we explain the system, its layers and thicknesses before we price it, we tell roof problems apart from ground damp and plumbing faults, and we will not sell you insulation you do not need. Renovation, painting and annex work in Al-Ahsa can ride on the same trip, and our published starting prices show what is included and what comes after inspection.

• ✓Inspection before treatment, with a written diagnosis of the cause.
• ✓Flood testing before roofs, bathrooms and pools are covered.
• ✓Potable-certified linings in drinking-water tanks.
• ✓Waterproofing coordinated with renovation and painting in Al-Ahsa when the house needs more than one trade.

Al-Ahsa Districts We Cover for Waterproofing and Leak Detection

Hofuf and Mubarraz now form one continuous urban area, and we cover all of it, including:

Farms and rest houses around the city are visited by arrangement. Beyond Al-Ahsa, the most detailed page is our Dammam roof waterproofing guide; the two other far-off cities have their own: roof waterproofing in Khafji and roof waterproofing in Hafr Al-Batin. Finished work is in our projects gallery.

How to Book Roof Waterproofing in Al-Ahsa

Send these on WhatsApp 0547879578 so we can price accurately before the crew leaves Dammam:

• ✓Two wide photos of the roof: showing drains, parapets, tanks and AC stands.
• ✓Ceiling photos from inside: with the room name and when the stain appears: after rain or all the time.
• ✓Approximate area and number of floors: whether the roof is bare concrete or tiled, and when it was last waterproofed.
• ✓For a reservoir, pool or tank: rough dimensions and a photo of the inside while empty.
• ✓Damp at the wall base: a close photo of the wall from the floor up to one metre.
• ✓Address: the district, or a map pin for the farm or rest house, and the days that suit you for inspection.
