Roof waterproofing in Jubail covers two quite different places under one name: Jubail old town (Jubail Al-Balad), with its houses, small apartment blocks and rooftop annexes, and Jubail Industrial City, with its planned residential districts, warehouses and workshops. We choose the system only after looking at the roof. It may be sprayed polyurethane foam that cuts heat and sheds water and is then sealed with a protective top coat, bitumen membrane or a liquid coating on a concrete roof, or insulation boards laid under protection tiles. Prices per square metre begin at SAR 13 for a torched bitumen membrane, SAR 23 for a standard coat of spray foam, SAR 42 for foam that handles both water and heat under its protective top coat, and SAR 46 for the full layered build-up of membrane, insulation boards and protection tiles. Each number shows where pricing begins, and the final figure follows the inspection and our agreement on scope; to reach us, ring or message 0547879578.
Jubail sits on the Gulf, and its air carries moisture for much of the year. That alone changes how a roof should be done: what time the crew can start in the morning, how the concrete is checked for dryness before anything goes on it, and which top coat can stand up to salt and sun together. The roof itself also varies a great deal. A concrete house roof in the old town is nothing like a corrugated metal warehouse roof in the industrial area, and neither is like the light roof of a steel annex added on top of a villa. This guide explains what suits each case, which authority to ask when the work goes beyond re-waterproofing, what each option costs, and which details help us price it quickly.
Jubail roof waterproofing at a glance
- Where we work: Jubail old town (Ad Dabab, Ghirnatah, Al Hamra and others), Jubail Industrial City including Al Fanateer, and warehouses and workshops in the industrial areas.
- What we treat: villa, apartment and annex roofs, metal warehouse roofs, underground and rooftop tanks, and bathrooms.
- Systems: spray foam sealed with a protective coat, bitumen membranes, liquid coatings in acrylic, polyurethane, polyurea or flexible cement, thermal boards, and clear coats over sound tiles.
- Starting prices: membrane SAR 13/m², standard foam 23, coated two-in-one foam 42, full layered system with tiles 46.
- Quick estimate: send roof, drain, parapet and ceiling-stain photos with the roof area and building type to 0547879578.
Roof Waterproofing in Jubail: One Name, Two Cities
Roof waterproofing in Jubail cannot be planned the same way across the city, because Jubail is really two places that were built and are run differently: the old town and Jubail Industrial City. Knowing which one your building is in tells us what kind of roof we will be standing on and which authority to ask if the job grows from re-waterproofing into building work.
Jubail old town: houses, small blocks and rooftop annexes
In Ad Dabab, Ghirnatah, Al Hamra and the other old-town districts, most buildings are concrete houses and small apartment blocks, and many owners have added a room or an annex on the roof years after the building went up. The trouble on these roofs is rarely the material on its own. It is the joints: where the annex wall meets the roof slab, the bases of water tanks, the holes for air-conditioner pipes, and drains half-choked with dust. Liquid membranes cope well with that kind of detail, bitumen membrane suits the open stretches, and the inspection settles the mix.
Jubail Industrial City: planned districts, warehouses and workshops
Jubail Industrial City has planned residential districts, Al Fanateer among them, close to the Gulf coast, with villas, duplexes and apartment buildings. Alongside them are warehouses, workshops and service buildings roofed with corrugated metal or sandwich panels, and these need a different approach from concrete: re-fixing loose sheets, dealing with rust around the fasteners, then spraying foam that closes the laps and cuts the heat, and finally a protective coat.
Royal Commission or municipality: who do you ask before work?
In Jubail Industrial City, permits for construction and alterations come from the Royal Commission for Jubail and Yanbu; in the old town they come from the municipality through its Balady services. Re-waterproofing an existing roof without changing the building is usually treated as maintenance, but if it comes with a new annex, a roof room or a structural change, ask the authority for your district before you start; we can help you prepare the photos and measurements they ask for. If the roof is inside an industrial plant or a company site, the site will usually have its own safety rules and entry permits, and we work to them as the site management sets them.
How Jubail’s Coastal Humidity Affects Roof Waterproofing
High humidity in Jubail affects waterproofing both before and after it goes on. Before: the dew that settles on roofs in the early morning stops coatings from bonding, so we do not start spraying or rolling until the surface is dry, and we check the moisture in the concrete with a meter before the primer. After: salt-laden air attacks metal roofs and weak coatings, and an exposed top coat fades faster than usual unless it is UV resistant.
■ Morning dew
We wait until the roof is fully dry. A layer laid on a damp surface tends to blister a few weeks later.
■ Trapped moisture
Old waterproofing that has water under it is checked with a thermal camera and a moisture meter before we decide what stays.
■ Salty air
We choose a top coat that resists salt and sunlight, and we clean rust off metal roofs before any foam goes on.
■ Occasional heavy rain
Rain is rare but can be heavy, and an hour of it shows up every weak fall on a roof, so falls are corrected first.
When is the right time to waterproof a roof in Jubail?
The best time to waterproof a roof in Jubail is a dry day with no rain in the forecast, during the hours when the roof is dry and its surface temperature is within the limits on the product data sheet. In summer we avoid the midday peak with foam and liquid coatings, because a very hot roof makes the layer skin over before it has bonded properly; in winter we wait for the morning dew to lift. That does not make waterproofing a seasonal job. We work all year, but we plan the working hours around the weather and tell you when we book the visit.
A tip for homes near the shore
If the paint on your roof parapet is flaking or shows a white powder, that is salt moving with moisture. Send a photo of it along with your roof photos, because the parapet may need treatment before we run the waterproofing up it.
Choosing a Roof Waterproofing Company in Jubail
The right roof waterproofing company in Jubail asks about your roof before it quotes you a price for a material. Being the best company is not a label a contractor can give itself; it is the result of things you can check for yourself before you sign:
- ✓An inspection before the price: did they ask for photos of the roof, the drains and the ceiling below? Did they ask how old the existing waterproofing is and whether there are tiles?
- ✓A written system specification: the material, its thickness, the number of coats and the protection layer, not just a brand name.
- ✓Details at edges and openings: how will they treat the junction with the parapet, tank bases, AC pipes and drains?
- ✓A water test before handover: does the quote include a flood test for systems that allow one?
- ✓A clear starting price: a per-metre price with an explanation of what pushes it up, instead of large discounts with no basis.
- ✓Safety at height: especially on warehouses and metal roofs: harnesses clipped to a lifeline, and guardrails at the edges.
Our firm, Aemar Al-Maryam General Contracting, works out of Dammam, covers Jubail with scheduled visits, and holds to these points on every roof. For the service across the whole Eastern Province, see our waterproofing and insulation service.
Roof Insulation Materials Used in Jubail
The roof insulation materials used in Jubail do one of two jobs: waterproofing, which keeps water out, and heat insulation, which cuts the heat reaching the top floor. Some systems do both. This table links each material to the kind of building it suits in the city:
| Material | What it does | Where it suits in Jubail |
|---|---|---|
| Sprayed polyurethane foam | Heat insulation and partial waterproofing; needs a protective coat | Warehouses, metal annexes and large simple roofs |
| Modified bitumen membrane | Waterproofing | Open concrete roofs on old-town houses |
| Flexible acrylic | Waterproofing; reflects sun when white | Annex roofs and roofs crowded with equipment |
| Liquid polyurethane or polyurea | Highly flexible waterproofing | Roofs with movement, foot traffic or many penetrations |
| Flexible cementitious coating | Waterproofing | Tanks, bathrooms and under tiles |
| Polystyrene boards | Heat insulation | The layered system under protection tiles on villas |
| Clear coat over tiles | Seals tile joints | Sound tiles with minor seepage |
Waterproofing Roofs in Jubail
Waterproofing a roof in Jubail means stopping rain, roof-washing water and AC drips from getting into the slab and rusting its reinforcement. On its own it is enough where the space below is not lived in, or where heat insulation is added in a separate layer. For an occupied top floor, it is better to combine waterproofing and heat insulation.
Bitumen membrane in Jubail: the details to watch
Modified bitumen rolls are torched onto a clean, dry, primed surface. What separates good work from bad: side laps of at least 75 mm and end laps of at least 100 mm according to the manufacturer data sheet (many local specifications ask for 10 and 15 cm), the membrane turned up the parapet by no less than 150 mm over the finished roof level, and reinforcement around drains and equipment bases. In Jubail’s sun and salt, the membrane should not be left exposed; it needs a reflective coat or tiles over it. This item starts from SAR 13 per square metre.
Liquid waterproofing in Jubail for roofs crowded with equipment
Liquid membranes are rolled or sprayed on and cure into one continuous skin with no seams, which suits Jubail roofs packed with tanks, AC units and pipes. Flexible acrylic starts from SAR 23 per square metre, cementitious coating from SAR 15, and polyurea, the most elastic and fastest curing, from SAR 55. The thickness of each is taken from the product data sheet and checked on site, not judged by eye.
Heat Insulation for Roofs in Jubail
Heat insulation on a Jubail roof reduces the heat that passes through the slab into the rooms below, so the top floor stays closer in temperature to the floors beneath it and the air conditioners work less hard. There are two main ways to do it: spray foam on top of the roof, or insulation boards inside a layered system under protection tiles.

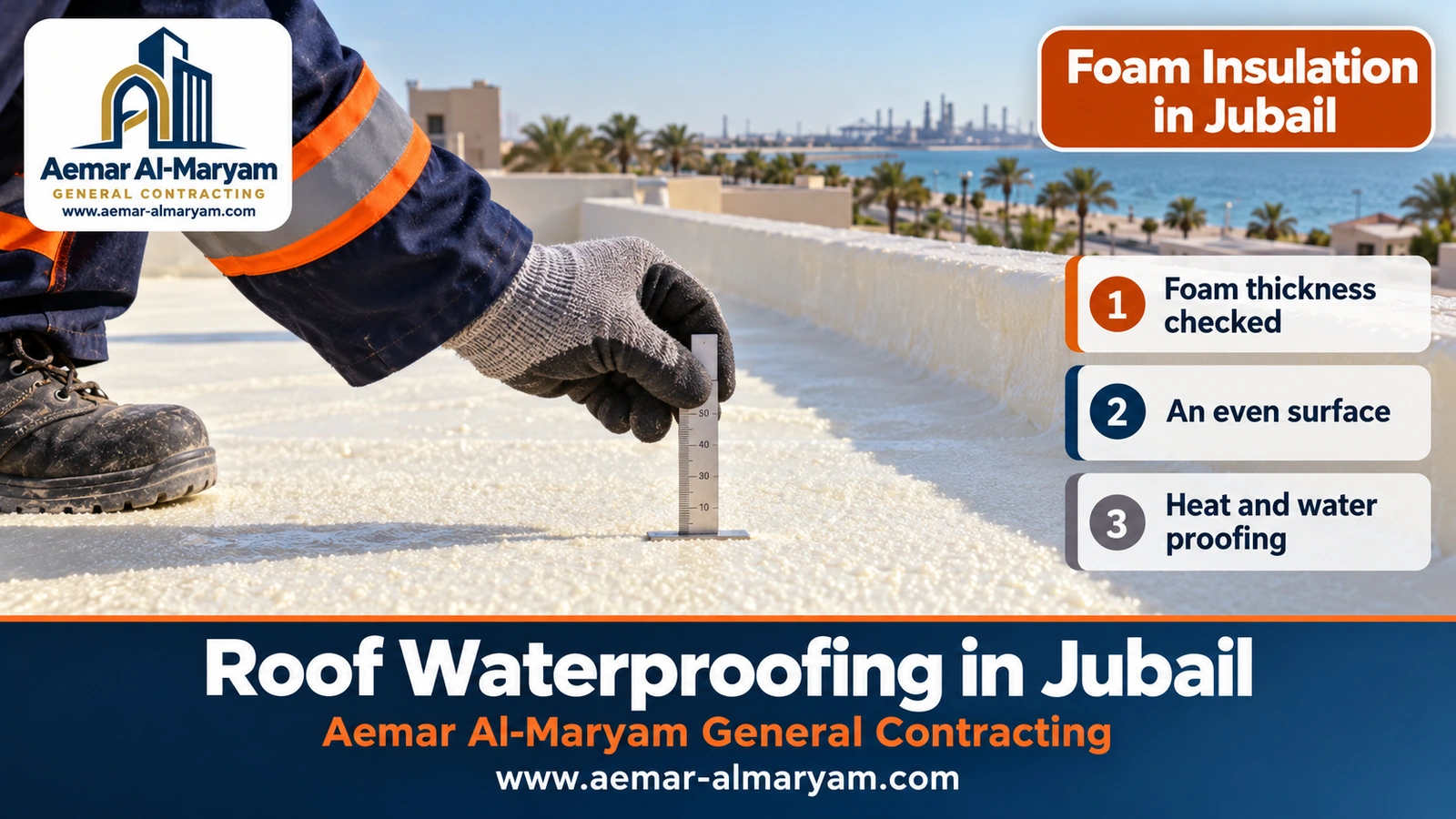

Spray foam insulation in Jubail and the price per square metre
The foam insulation price per square metre in Jubail starts with us at SAR 23 for a standard layer of polyurethane foam, and rises with thickness. Foam that is sprayed to do both jobs, insulating and waterproofing, and then sealed with a protective coat, is priced from SAR 42 a square metre. Roofing foam is closed-cell; published specifications put its density at roughly 45 to 48 kg/m³ and its minimum thickness at 25 mm, and retrofits on homes are commonly 3 to 5 cm thick.
The key fact about foam is that sunlight damages it if it is left bare, so the protective coat goes on the same day once the foam has set, and foam is never left overnight without at least its base coat. On Jubail roofs we measure the thickness with a depth gauge at points across the roof, as in the photo, and make sure the finished foam surface does not hold water in hollows.
Insulation boards and the full layered system
On villas where the roof is used, or where the owner wants tiles over the insulation, we install the full layered system: a waterproof membrane over the screed falls, then insulation boards, then a protection fabric, then tiles. This system starts from SAR 46 per square metre, and polystyrene boards on their own from SAR 14. It takes foot traffic and keeps the sun off the membrane; the trade-off is that it is heavier and takes longer to install.
Insulation in new buildings
Heat insulation is mandatory in new buildings in the Kingdom and is tied to an undertaking at the building permit stage, and the residential building code (SBC 602) caps the heat transfer allowed through the roof, which the designer uses to work out the insulation thickness. If you are building in Jubail Industrial City or the old town, ask your engineering office for the required thickness, and we will install it as drawn.

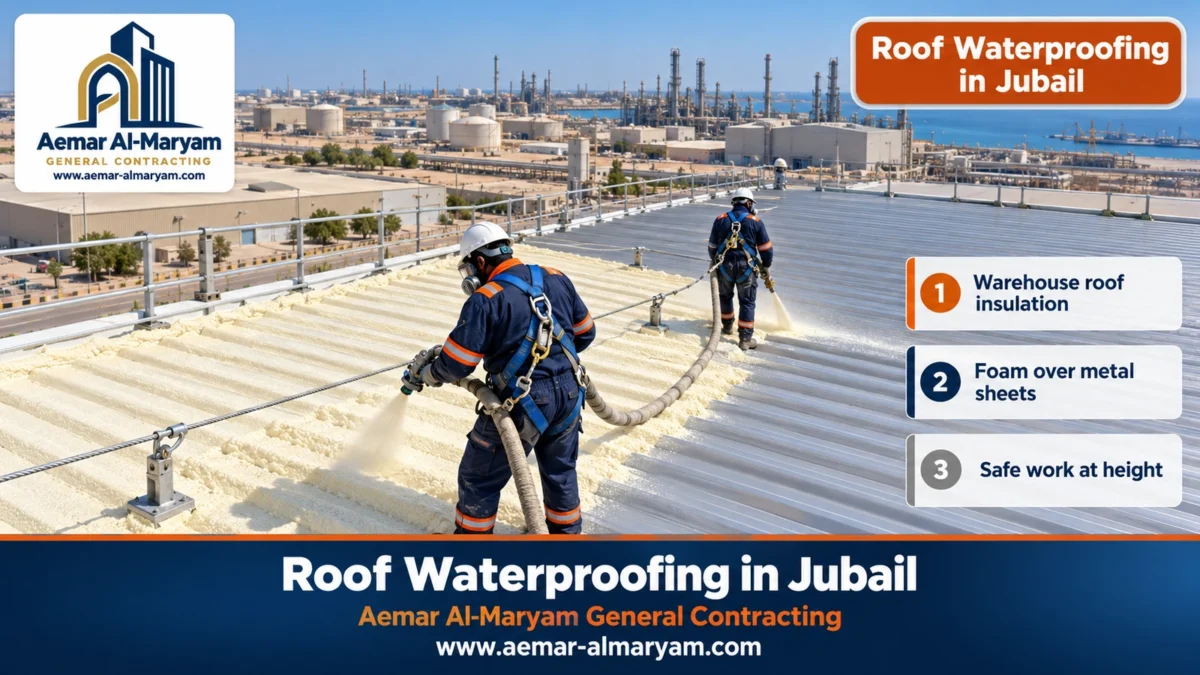

Warehouse and Metal Annex Roof Insulation in Jubail
Insulating a warehouse roof in Jubail starts with the metal sheets, not the insulation. A corrugated metal roof grows in the daytime heat and shrinks again overnight, so the holes around the fasteners widen and let water in, while the salty air speeds up rust at the edges and laps. That is why we begin by checking the fixings, then removing and treating rust, then spraying foam that closes the laps and covers the sheets in one continuous layer, and finally a grey or white protective coat.
- ✓Warehouses and workshops: large areas where spray foam pays off because it is fast and covers fasteners and laps in one pass.
- ✓Light steel annexes on roofs: usually roofed with sandwich panels; we treat their joints and edges, and a flexible liquid coating may be enough.
- ✓Parking and walkway shades: we insulate them when they form part of an enclosed roof; open shades do not normally need heat insulation.
- ✓Crew safety: work on metal roofs is done in harnesses clipped to a lifeline, with guardrails at the edges, walking only along the fixing lines.
Warehouse owners in Jubail notice another benefit. The humid air inside a warehouse condenses on the cold underside of the metal sheets at night and then drips onto goods and machines. A layer of foam over the sheets evens out the sharp swing in sheet temperature between night and day, so there is less condensation, and the air under the roof is cooler at midday. If the condensation is severe, the building may also need ventilation, which we discuss with you at the inspection.
A metal roof is priced after inspection, because the condition of the sheets and the rust treatment vary so much; the basis is the foam price from SAR 23 per square metre. If you are planning a new annex, read about building annexes and majlis rooms in Jubail, since insulation is easier and cheaper when it is planned with the build.
Tiled Roof Waterproofing in Jubail Without Removing the Tiles
A tiled roof in Jubail can be waterproofed without removing the tiles if they are firmly bedded, the falls work and the seepage comes from the joints. The tiles are cleaned, failed joints are raked out and refilled, and a clear or acrylic finish goes over the tiles, at a starting price of SAR 10 a square metre. Where tapping a tile gives a hollow sound, water stands on them after washing, or the waterproofing under them has failed, a clear coat will not solve it, and the tiles have to come up so the roof can be waterproofed again.
Do not confuse the two fixes
A clear coat treats minor seepage through tile joints; it is not a replacement for full waterproofing. If someone offers you a clear coat for a roof where water collects, ask them to check the falls first.
The Best Roof Insulation Type for Jubail’s Coastal Climate
The best roof insulation type for Jubail is the one that fits your particular roof; no single material suits every building. Here is a straightforward comparison by situation:
| Roof situation | Best fit | What to watch |
|---|---|---|
| Concrete villa roof with no heat insulation | Foam water-and-heat system with top coat (from 42) or the layered system (from 46) | Foam does not like heavy foot traffic; if the roof is used, choose the layers |
| Metal warehouse roof | Spray foam with a protective coat | Fix the sheets and treat the rust first |
| Apartment roof crowded with equipment | Flexible liquid membrane (acrylic or polyurethane) | Reinforce around every base and pipe |
| Simple open roof needing waterproofing only | Bitumen membrane with protection | Laps and the upturn on the parapet |
| Sound tiled roof with minor seepage | Clear coat over the tiles | Not suitable with standing water or hollow tiles |
In Jubail specifically we prefer the top coat to be light in colour and resistant to salt and UV, because sun and salt working together are what shorten the life of exposed waterproofing on this coast.
Water Tank Waterproofing in Jubail
Water tank waterproofing in Jubail starts with emptying, cleaning and drying the tank, then repairing cracks and corners, then lining it. Lining a concrete tank costs from SAR 14 a square metre with a cementitious coating, or from SAR 46 with an epoxy rated for drinking water. We measure everything inside the tank that water or its vapour touches: the walls, the floor and the underside of the roof.
- ✓The lining carries a rating for contact with drinking water, such as NSF/ANSI 61, and we hand you its data sheet.
- ✓New concrete is left 28 days before coating, and the lining is left for the cure time on its data sheet before the tank is washed and filled; one certified epoxy states 7 days at 21 °C.
- ✓Ventilation inside the tank during the work matters for the applicator’s safety and for the quality of the coating.
- ✓If the tank is losing water, we test it first; a tank leak check starts from SAR 140 per visit.
Rooftop tanks in Jubail also sit on bases that are often where the roof leaks. When we line a rooftop tank, we look at its base and the membrane around it in the same visit, so the roof and the tank are not treated as separate problems.
Bathroom Waterproofing in Jubail
Bathroom waterproofing in Jubail is done before tiling. We take the old tiles up to the concrete, repair the pipes and pressure test them, lay a screed that runs water to the floor drain, reinforce the corners with tape, then apply a flexible membrane in two coats laid at right angles that runs up the walls. International references for wet areas take the waterproofing to a height of 1,800 mm inside the shower zone, and to 150 mm higher than the edge of a fitted bath. We charge from SAR 26 a square metre for bathroom waterproofing; when the room needs everything redone, from strip-out to new pipes and new tiles, the starting figure is SAR 2,300, covered under renovating bathrooms and kitchens.
If a bathroom leak has already reached the ceiling of the floor below, do not start with paint: stop the water first, then repair the ceiling. For old pipework, see our plumbing works service.

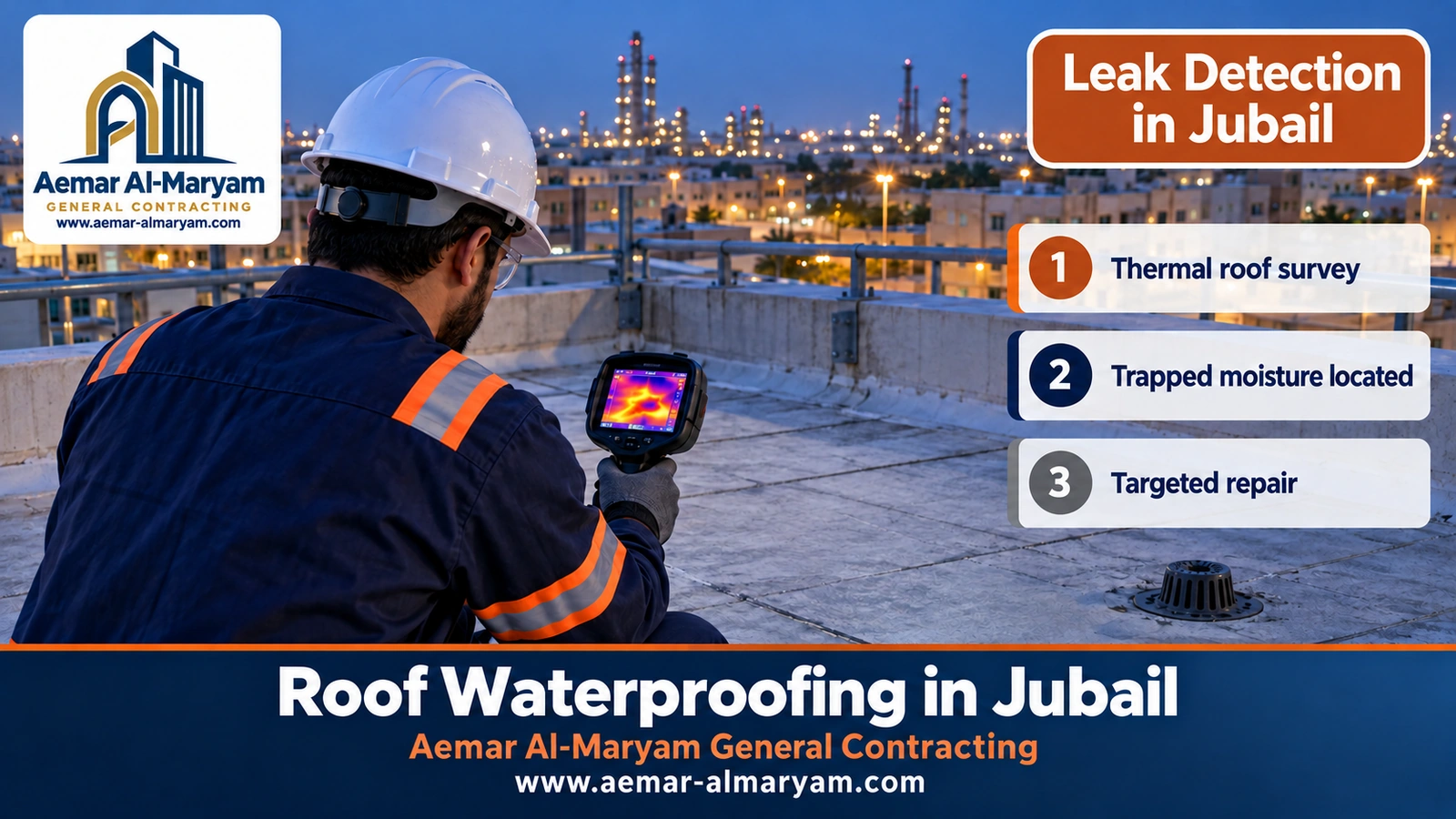

Leak Detection in Jubail
Leak detection in Jubail finds the source of the water before anything is broken out, so you do not pay to remove sound tiles. Checking a whole apartment costs from SAR 200; for a villa or an entire floor the figure is SAR 280; one bathroom, one kitchen or one tank is SAR 140. We combine several methods, because one instrument on its own is not enough to reach a verdict.
On roofs we use the thermal camera at times when the roof is changing temperature, such as the evening, because wet areas hold heat differently from dry ones and show up on the screen. But the camera reads surface temperature, not water itself, so we confirm its readings with a moisture meter before we decide to remove anything. Inside homes we start with the meter test: close every tap, photograph the reading, and check it again after half an hour without using any water; if it has moved, there is a leak.
- ✓Signs of a hidden leak: a water bill that jumps, damp patches or white salt marks low on walls, swollen skirting, and a musty smell in one room.
- ✓Signs of a roof leak: stains on the top-floor ceiling that grow following rain or a roof wash, and paint bubbling near the corners.
- ✓After the source is found, the repair is priced at inspection, because its size varies from one case to another.
Flood testing in Jubail: proof before handover
A flood test proves the waterproofing does not leak before tiles or a protection layer cover it. We plug the drains temporarily, flood the roof with 2.5 to 10 cm of water at the lowest point, and leave it for at least 24 hours and up to 72 hours while we watch the ceiling below. We do not go over 10 cm, because water is heavy for a roof slab, and we do not flood systems that do not allow it, such as bare foam before its coating.
Roof Waterproofing Prices in Jubail
Roof waterproofing prices in Jubail begin at SAR 13 a square metre with us, and the system you choose sets the rest. Here are our starting prices, listed with the work most often asked for in the city first:
| Item | Starts from |
|---|---|
| Sprayed polyurethane foam, standard layer (per m²) | SAR 23 |
| Two-in-one foam for heat and water, with protective top coat (per m²) | SAR 42 |
| Full layered system: membrane, insulation boards, protection tiles (per m²) | SAR 46 |
| Bitumen membrane waterproofing (per m²) | SAR 13 |
| Flexible liquid acrylic (per m²) | SAR 23 |
| Cementitious roof coating (per m²) | SAR 15 |
| Polyurea (per m²) | SAR 55 |
| Polystyrene insulation boards (per m²) | SAR 14 |
| Clear coat over sound tiles (per m²) | SAR 10 |
| Concrete tank, cementitious lining (per m²) | SAR 14 |
| Tank, epoxy for drinking water (per m²) | SAR 46 |
| Bathroom floor and wall waterproofing (per m²) | SAR 26 |
| Full bathroom: strip-out, waterproofing, plumbing, tiles | SAR 2,300 |
| Leak check: bathroom or kitchen / tank | SAR 140 per visit |
| Leak check: apartment / villa or whole floor | SAR 200 / 280 per visit |
| Metal warehouse roof, old layer removal and screed, foundations, repair after detection | After inspection |
Every number here is where pricing begins; inspection and agreement fix the final figure. Roof condition, area, floor level, material, thickness and access can each move it. Where the table says after inspection, snap the area, jot down its size and message 0547879578; rates for our other work sit on the prices page.
What a 200 m² Jubail roof costs: worked figures
An illustrative example for a 200 square metre concrete villa roof in Jubail with sound falls and no old waterproofing to strip, at starting prices:
| Option | Sum | Estimate |
|---|---|---|
| Membrane only, no heat insulation | 13 × 200 | SAR 2,600 |
| Foam for heat and water, coated | 42 × 200 | SAR 8,400 |
| Membrane, boards and tiles | 46 × 200 | SAR 9,200 |
For illustration only; it excludes removing old layers, laying falls or repairing cracks, all of which are priced at inspection.
If the same roof carries a metal annex with a 30 m² roof, standard foam on it starts from 30 × 23 = SAR 690 before sheet repairs and the protective coat. The cheapest line is not always the better buy: membrane alone does nothing for the heat in the top floor.
Roof Waterproofing Steps in Jubail
- 1Pictures on WhatsApp
Photos of the roof and the ceiling below, plus the roof area, give us enough to suggest a system and a rough price. - 2Inspection
We check falls, drains, parapets and the old waterproofing, measure moisture, and decide what comes off and what stays. - 3Preparation
Cleaning, removing failed layers, repairing cracks and falls, and treating rust on metal roofs. - 4Application at the right hours
We start once the morning dew has gone and apply each layer at the agreed thickness. - 5Testing
A 24 to 72 hour flood test for systems that allow it, or thickness and continuity checks on foam. - 6Protection and handover
The top coat or tiles go on, the site is cleaned, and you get photos of every stage.
How Long Roof Waterproofing Lasts in Jubail
How long roof waterproofing lasts in Jubail depends on the system, the workmanship, the protection and the upkeep more than on the brand. Published studies of foam roofs report service lives of more than 30 years when the top coat is renewed about every 15 years, while exposed membranes age faster if they are left unprotected. In a coastal city like Jubail we recommend checking the roof once a year, clearing the drains before the rainy months, and renewing the top coat once it shows surface cracking or has faded badly.
- ✓Signs it is time to renew: blisters in the membrane, a cracked top coat, water standing after rain, stains on the top-floor ceiling.
- ✓Do not drill the roof to fix new equipment without resealing the hole.
- ✓AC units need proper bases and should not sit directly on the waterproofing.
Common Roof Waterproofing Mistakes in Jubail
- ✓Waterproofing a damp roof: early in the morning or right after washing, so the layer blisters weeks later.
- ✓Leaving foam unprotected: the sun breaks down its surface and it loses its water resistance.
- ✓Spraying foam over rust: on metal roofs that were not cleaned and treated, so the rust keeps spreading underneath.
- ✓Ignoring the falls: even the best membrane suffers under standing water.
- ✓Treating the roof but not the parapet: so water gets in where the wall meets the slab.
- ✓A dark top coat: it soaks up heat and throws away part of the benefit of the insulation.
- ✓Painting before the leak is stopped: the stains come back within weeks; waterproof first, then call the painting contractor in Jubail once the ceiling has dried.
If water has already reached the steel in the slab, with rust stains or spalling concrete, the job becomes a repair after the waterproofing; see the renovation contractor in Jubail and our crack repair service.
How to Order Roof Waterproofing in Jubail
To order roof waterproofing in Jubail, send one WhatsApp message to 0547879578 with the details below, and we will reply with the suggested system, an estimated cost and an inspection date:
- ✓Whether the building is in the old town or Jubail Industrial City, and the district.
- ✓The type of building: villa, apartment block, annex, warehouse or workshop.
- ✓General photos of the roof from all four corners, plus the drains, the parapet and the bases of tanks and AC units.
- ✓Photos of any ceiling stains inside.
- ✓The rough roof area, and whether there are tiles or old waterproofing.
- ✓Whether you want a tank, a bathroom or a leak check done in the same visit.
Your Jubail roof starts with a photo
Send your roof photos now. We will suggest the right system with an estimated cost and book an inspection on our next visit to Jubail.
Why Aemar Al-Maryam for Roof Waterproofing in Jubail
■ We know both halves of the city
Old-town houses and industrial-city villas and warehouses each need their own treatment and their own authority.
■ A specification before a price
We write down the material, thickness, layers and test, not just a product name.
■ Published starting prices
From SAR 13 per square metre, with everything that raises the price explained before work starts.
■ One contractor for the whole job
Waterproofing, repairs, painting and plumbing from one team, so you are not juggling contractors.
You can see work we have carried out in our projects gallery, and compare our approach with the roof waterproofing guide for Dammam, which explains each system in more depth.
Areas We Serve in and Around Jubail
We serve Ad Dabab, Ghirnatah, Al Hamra and the rest of the old town, Al Fanateer and the other residential districts of Jubail Industrial City, and warehouses and workshops in the industrial areas, with scheduled visits from Dammam. We work the same way on our Ras Tanura roofing guide, the Abqaiq page on roof insulation and across the Eastern Province. City page: our services in Jubail.
